GE Infinity M Series - Battery Installation

NE-M Installation Guide H5692448
850050111 Issue 03 August 2017 33

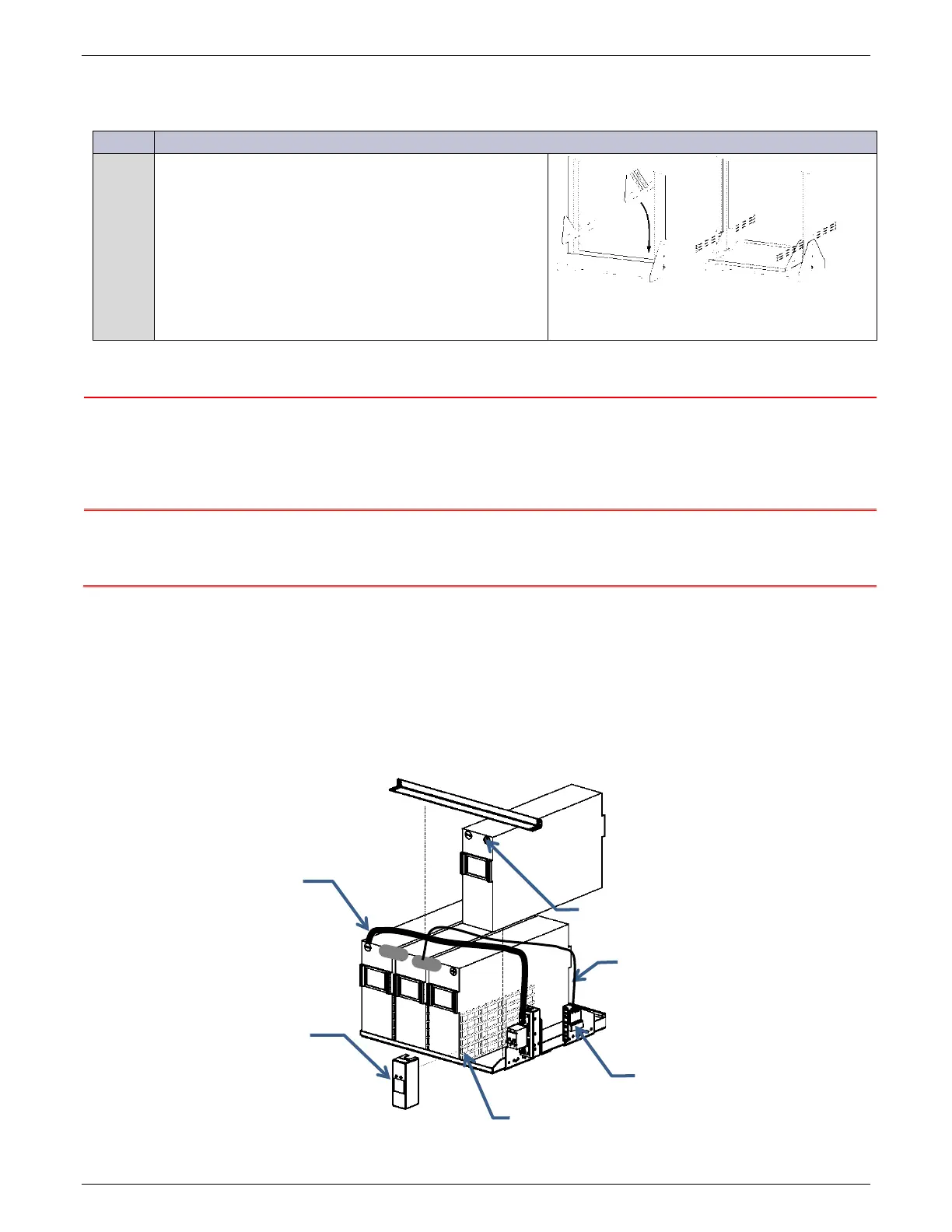

Install Battery Trays
Optional battery trays are suitable for use with general trade batteries such as Northstar Battery NSB110FT and NSB170FT.
Step Action
1
Position the battery tray in the frame with frame
mounting brackets on both front and back of frame as
shown.
Secure with provided screws.
Torque to 35 in-lb – 5/16” socket.
Figure 39 Battery Trays
Install Batteries
WARNING: Energy and Chemical Burn
All batteries contain hazardous electrical energy.
Lead-acid batteries contain sulfuric acid and explosive hydrogen gas.
Follow all precautions noted in the literature accompanying the batteries.
Use only insulated tools.
CAUTION: Equipment Damage
Equipment frame anchoring, load rating, and seismic zone rating should be verified before field
installing trays and batteries.
Tray Mounted Batteries
The system can be configured with battery trays sized for various batteries and may include optional factory installed
battery disconnect or battery mid-string voltage and temperature monitoring units. Compatible batteries include:
•
Power Battery CSL-12100
• GE East Penn 12AVR100-3ET
• Equivalent 100 AH front-terminal batteries
•
North Star NSB110
• North Star NSB170
• GE East Penn 12AVR150-3ET
• Equivalent 110-170AH front-terminal batteries
Figure 40 Batteries in Tray – 48V
2/0 Cable
Switch
Cover
VT Probe Cable
Battery Spacer
(3) 848466884
Connect Return Cable
to this battery post
ES771 Card
