GE Infinity M Series - Figure 45 Battery Cable -48 V; Figure 46 Battery Cable +24 V

NE-M Installation Guide H5692448
850050111 Issue 03 August 2017 36
Step Action
4
Connect Battery Cable (hot side)
48V Battery Strings
Connect the 2/0 cable between the V- post of the
left-most battery and the input bus of the
disconnect switch.
Torque to battery manufacturer’s specification.

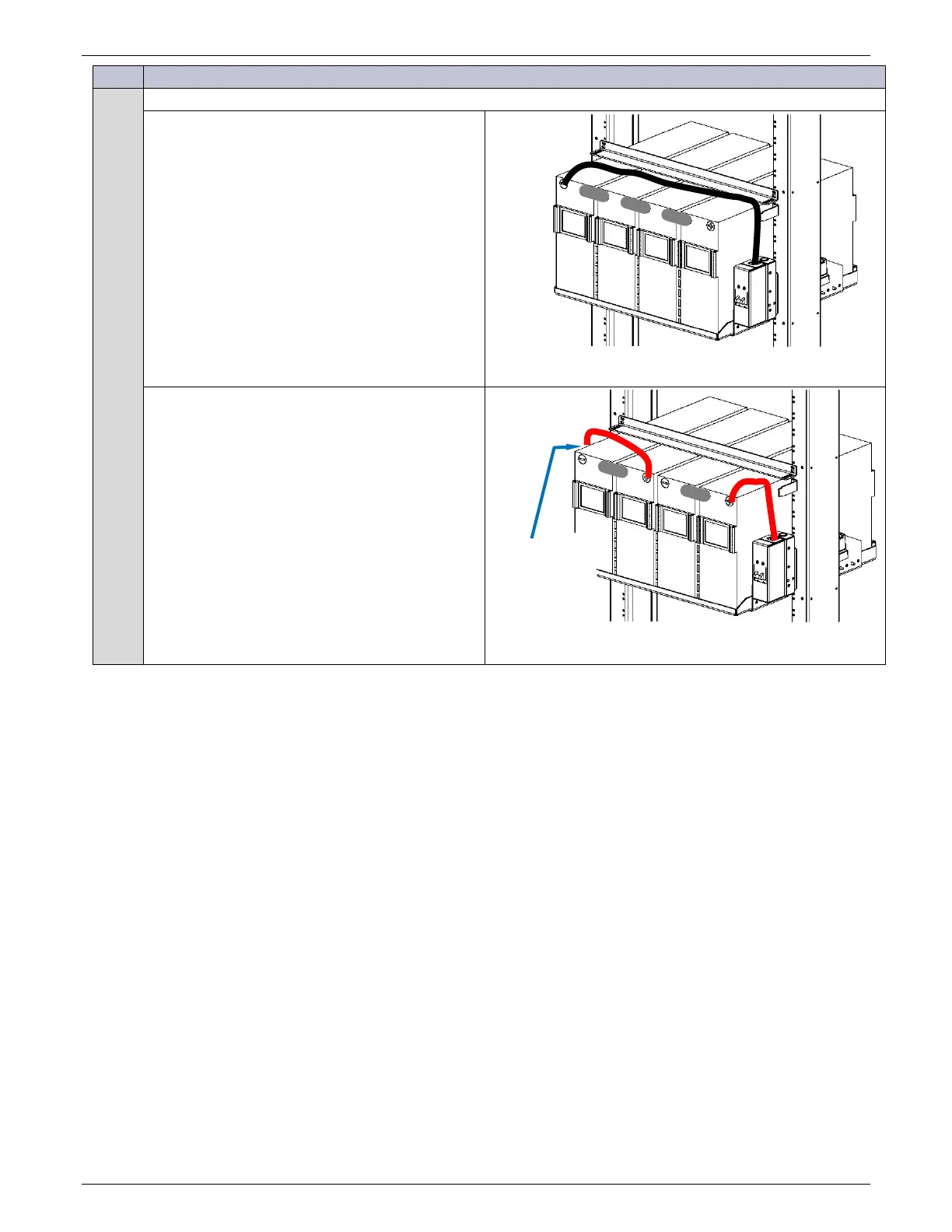

Figure 45 Battery Cable -48V
24V Battery Strings
Connect the 2/0 cable between the V+ post of the
right-most battery of the left string and the input
bus of the left disconnect switch.
Connect the 2/0 cable between the V+ post of the
right-most battery of the right string and the
input bus of the right disconnect switch.
Torque to battery manufacturer’s specification.
Figure 46 Battery Cable +24V
To Left
Disconnect
Switch
