Step Action
5
Connect Battery Return Cable (ground side)
48V Battery Strings
Connect the factory-wired battery return cable to
the V+ post of the right-most battery.
Torque to battery manufacturer’s specification.

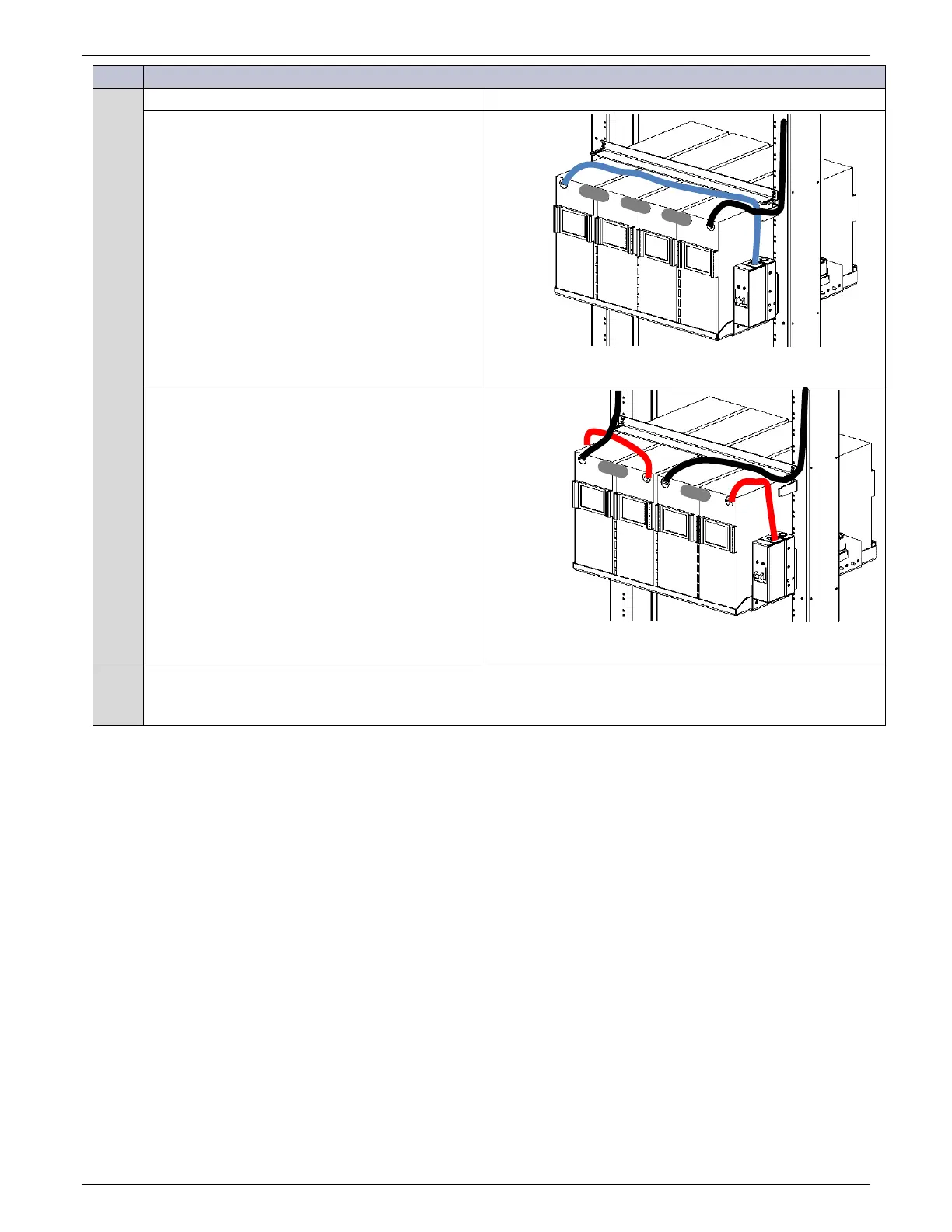

Figure 47 Battery Return Cable -48V
24V Battery Strings
Connect the factory-wired battery return cables
to the V- posts (left most posts) of both strings.
Torque to battery manufacturer’s specification.
Figure 48 Battery Return Cable +24V
Battery installation is complete.
Follow site engineering instructions regarding when to turn the disconnect switches ON.
