NE-M Installation Guide H5692448
850050111 Issue 03 August 2017 28
CAUTION: Personal injury and Equipment Damage
PV Disconnect Panel with disconnects rated at 300Vdc on each PV conductor is required for use
with Solar Arrays (PV sources).
Step Action
1
Remove the Input Panel cover (4 captive screws).

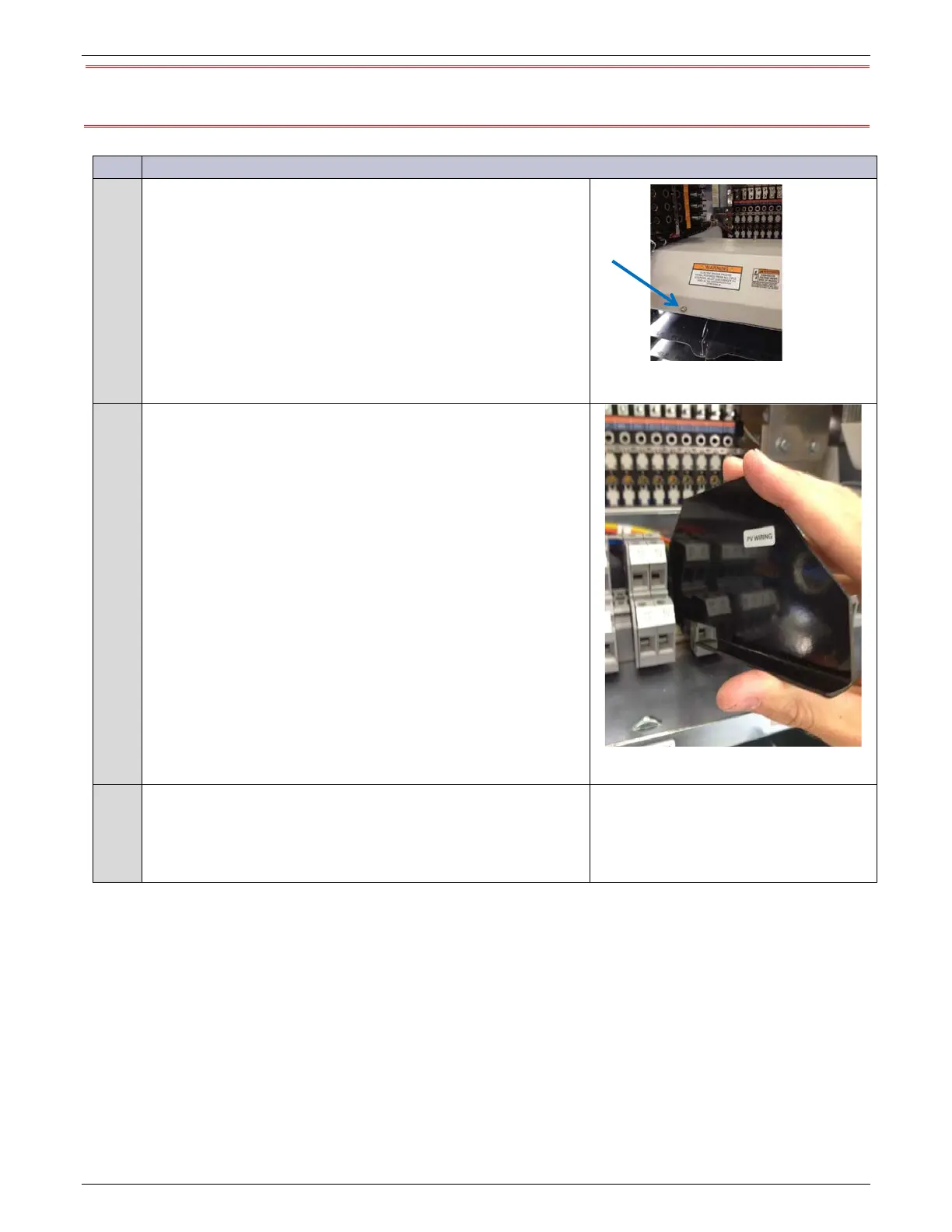

Figure 27 Input Panel Screws
2
Apply labels onto PV/AC Partition as shown.
• Place “PV WIRING” label on the left (PV) side of partition.
• Place the “AC WIRING” label on the right (AC) side of
partition.
Figure 28 Partition Labels
3
Make space for the PV/AC Partition - Separate DIN rail Terminal
Blocks to make space for the PV/AC Partition.
Loosen screws securing all DIN spacer blocks to the left of the
Partition location specified in the site engineering instructions.
To Next Page
