NE-M Installation Guide H5692448
850050111 Issue 03 August 2017 38
Anderson Connector Connection
Step Action

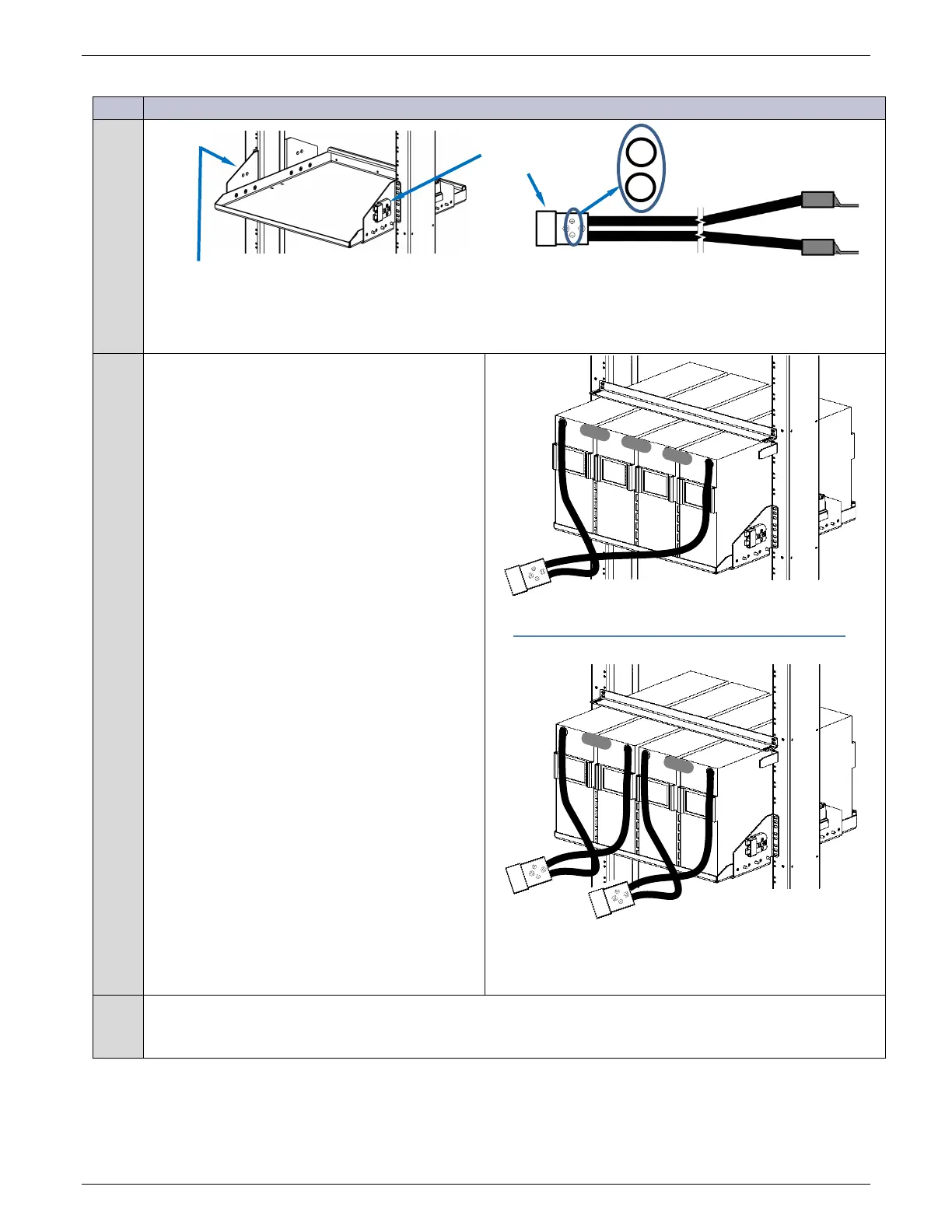

Figure 49 Anderson Battery Connector
1
Connect Anderson pigtail terminals to battery
string positive and negative terminals.
Positive Anderson Pigtail terminal to the
Positive (right-most) battery terminal
Negative Anderson Pigtail terminal to the
Negative (left-most) battery terminal.
Torque to battery manufacturer’s specification.
Figure 50 Battery Connections - Anderson
Battery installation is complete.
Follow site engineering instructions regarding when to mate the Anderson connectors.
Anderson
Connector
Anderson Pigtail
+
-
+
-
Left Anderson
Connector (24V only)
48V String
24V Strings
-
+
-
+
+
-
+
-
+
-
+
-
