Configure Millennium II Controller

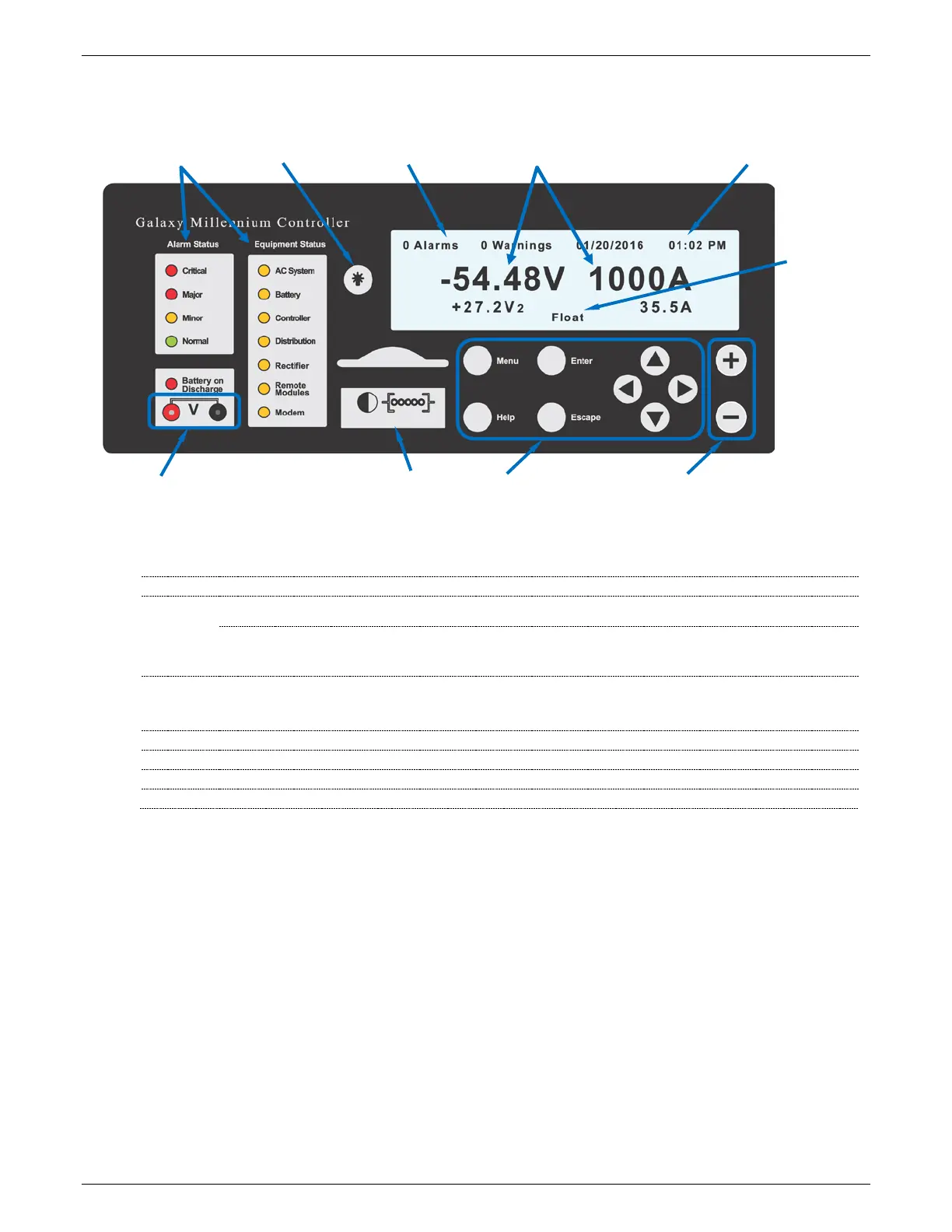

Figure 87 Front Panel - Millennium II Controller
Table 10 Push Buttons - Millennium II
Button
Function
Action
+
−
Display Contrast Increase or decrease the display contrast (in Main Display).
Parameter Change Increase or decrease the value of the selected parameter.
▲
◄ ►
▼
Navigate Navigate menus – move to different selected menu item.
Enter
Enter
Enter a sub-menu or confirms a parameter change.
ESC
Escape
Go up one menu level or exits a parameter change without saving.
Menu
Menu
Go to the Main Menu.
Help
Help
Display available Help information.
The Millennium II controller’s primary user interface is the front panel, which includes a backlit LCD, and an array of
pushbutton controls. SW202-8 must be set to ENABLED for changes to be made from the front panel. This section
covers the basic operations that must be performed so that the controller is minimally configured.
Date and Time
Number of Alarms
and Warnings
Plant Voltage and Load
Current
Voltage Test Jacks
RS-232 Port
Plant
Mode
Menu Navigation
Plant Status LEDs
Alarm Test
Increment / Decrement
