NE-M Installation Guide H5692448
850050111 Issue 03 August 2017 27
Set Supplemental Frame ID on BIC 10
Step Action

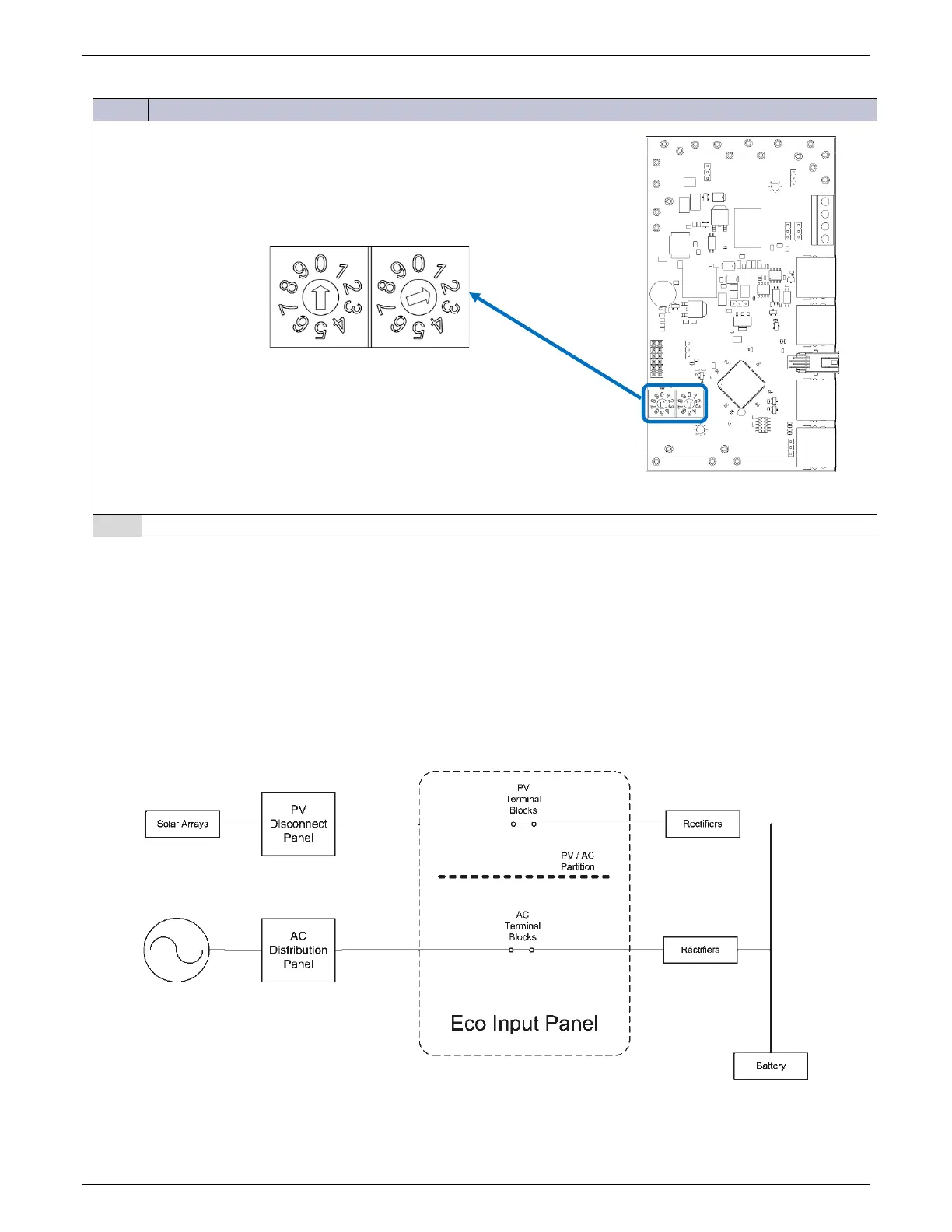

Figure 25 Set Frame ID on BIC 10
1 Verify Supplemental frame ID is set to 2. (Factory default is Frame 2.)
Install PV/AC Partition Kit – NE-M Eco systems only
This section applies only to NE-M Eco systems.
NE-M Eco systems power some rectifiers from PV (photo voltaic or solar array) and others from ac, typically a generator.
Each terminal block powering rectifiers can be connected to either PV or ac, but not both.
The PV/AC Partition Kit (150028727) divides the Input panel into separate input sections for PV and AC fed terminal blocks.
The position of the partition is site specific. Follow all site engineering instructions. This position indicated in this section is
only an example.
Figure 26 Eco Input Panel
