DC Distribution and Battery Termination
Distribution panels are factory installed.
Examples Features

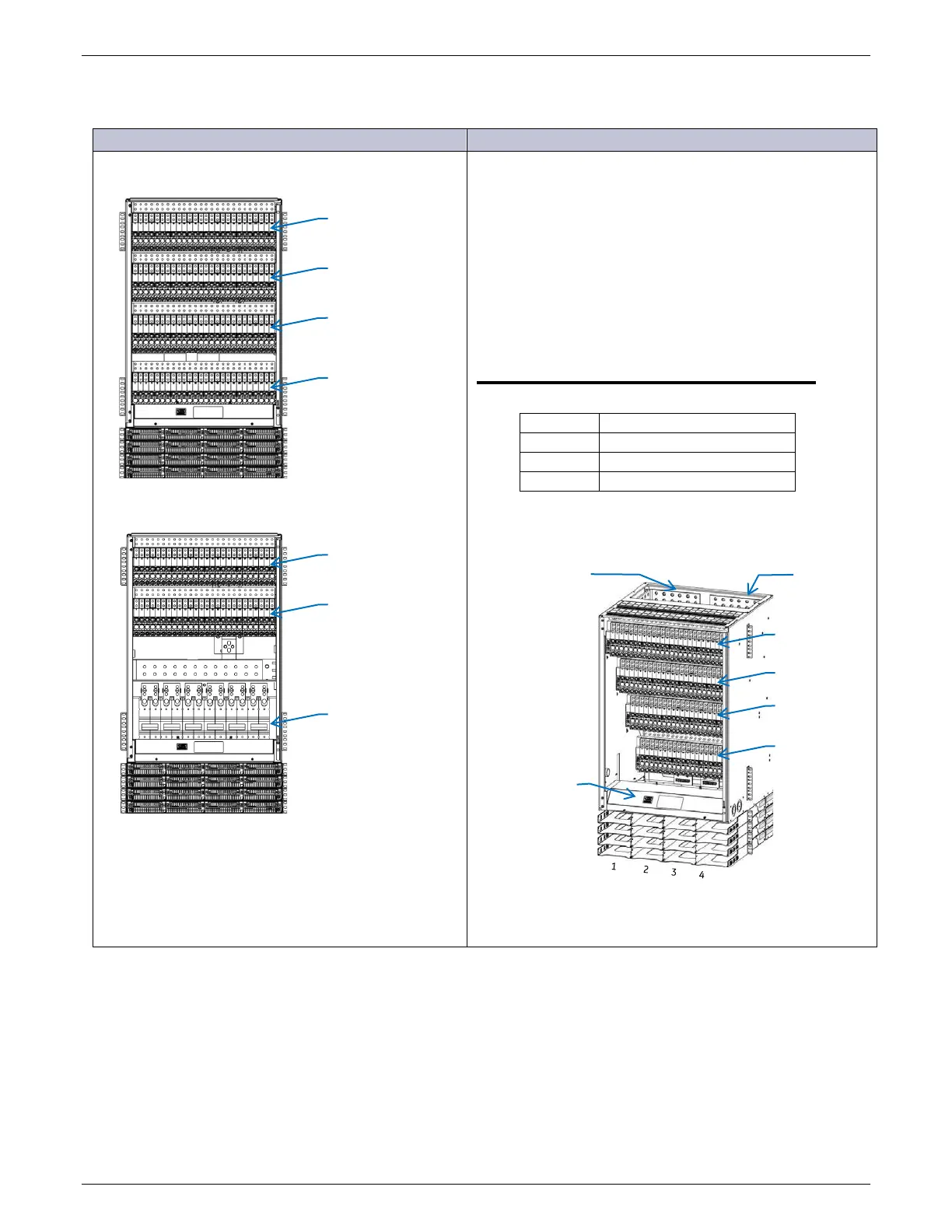

Figure 9 DC Distribution 4 Bullet Panels
Figure 10 DC Distribution – Bolt In Panel with return bar
22U System Examples
• 11 pair Battery and Return bus landings for battery
cables
• LVBD Contactor option
• 26 Bullet Distribution positions per panel arranged for:
• Bullet terminal breakers to 250A
• TPS fuse holders for fuses to 70A
• GMT Fuse Module - 6 position
• 12 Bolt-in positions
• KS22012 circuit breaker
• TPL-C Fuse holders
• Distribution Panel Positions
System
Distribution Panel Positions
13U
2
18U
3
22U
4
• Universal Power Shelves
Figure 11 NE-M System – 22U
26 Position Bullet Panel
26 Position Bullet Panel
12 Position Bolt-in Panel
with integrated return bar
Mounts in bottom 2
distribution panel
positions
26 Position Bullet Panel
26 Position Bullet Panel
26 Position Bullet Panel
26 Position Bullet Panel
Battery Return
Bus
Battery Bus
Panel A
Panel B
Panel C
Panel D
Shelf
Positions
1
2
3
4
Rectifier Positions
AC Terminal
Blocks
