DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 401
8-15-2 Assembling or replacing the Roll Stand (cont’d)
9.) Using the 3/16 inch hex wrench provided, fasten the cover plate to the top of the post with four (4)
1/4-20 x 3/8 inch SHCS as shown.

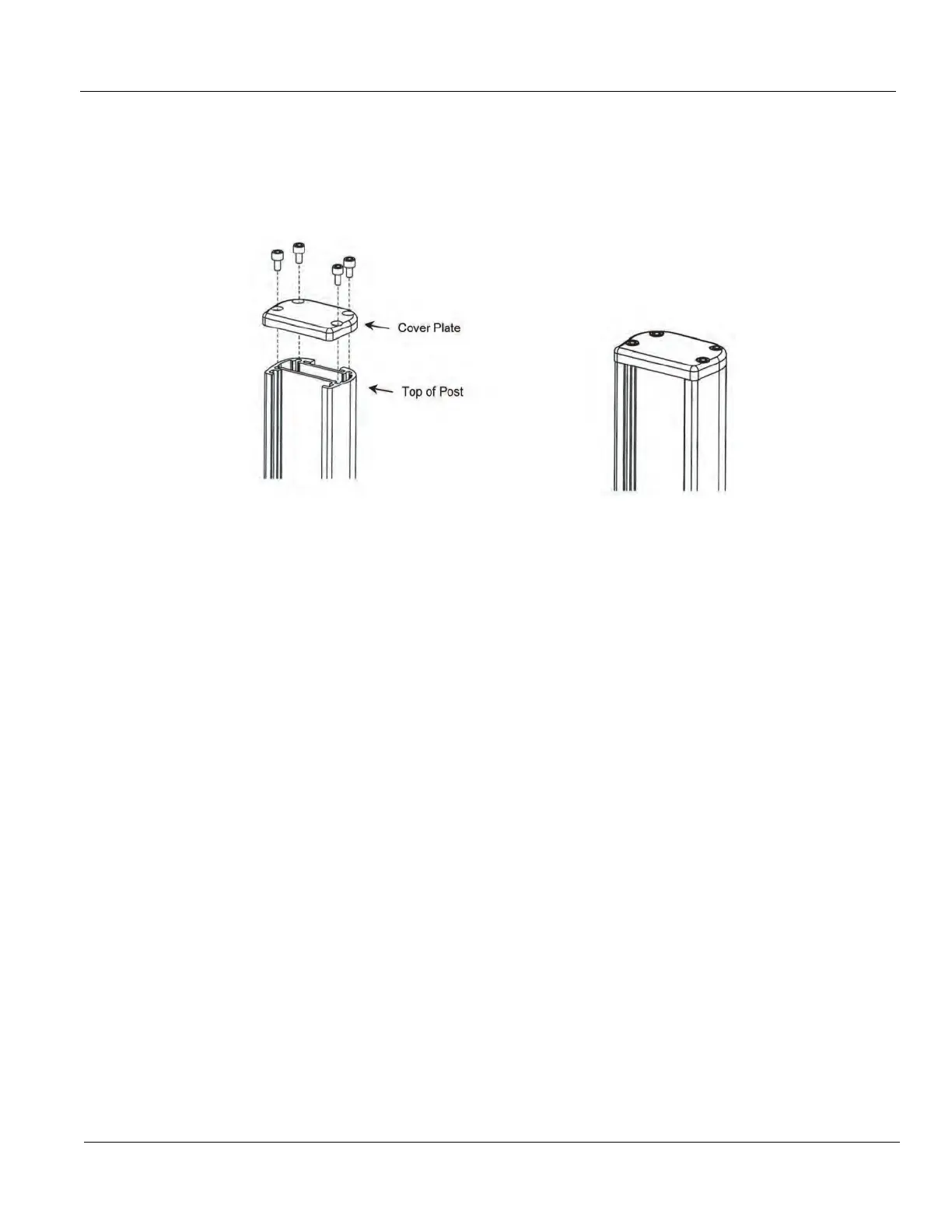

Figure 8-17 Cover Plate Installation
To Next Page
