GE LOGIQ V1 User Manual

Introduction
LOGIQ V2/LOGIQ V1 – User Guide 6-3
Direction 5610736-100 Rev. 9
Overview (continued)
For R1.0.x software:

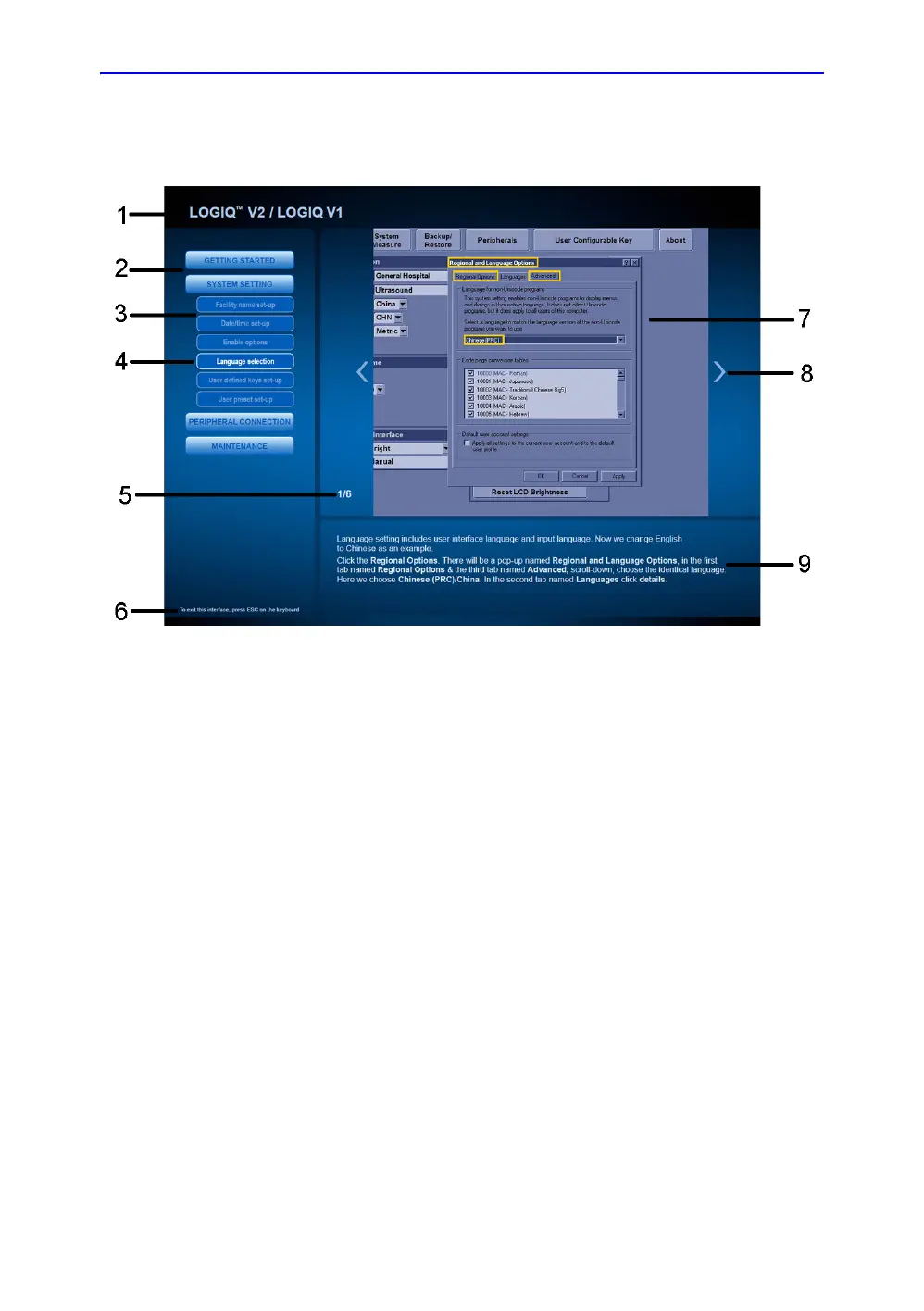

Figure 6-3. Interface Illustration (For R1.0.x)
The interface of the Onboard Help includes below information:
1. The product name of the system.
2. Sections. Select the button to expand the section to show
the list of subsections.
3. Subsections.
4. The highlighted subsection shows this subsection is
currently opened and displayed on the right side.
5. The left number shows the current page of the subsection.
The right number shows the total pages of the subsection.
6. Text instruction “To exit this interface, press ESC on the
keyboard”.
7. Illustration with graphic.
8. Select the left arrow to go to the previous page. Select the
right arrow to move to the next page.
9. Text instruction about how to operate.
