Using Onboard Help
6-4 LOGIQ V2/LOGIQ V1 – User Guide
Direction 5610736-100
Rev. 9
Overview (continued)
For R1.1.x software:

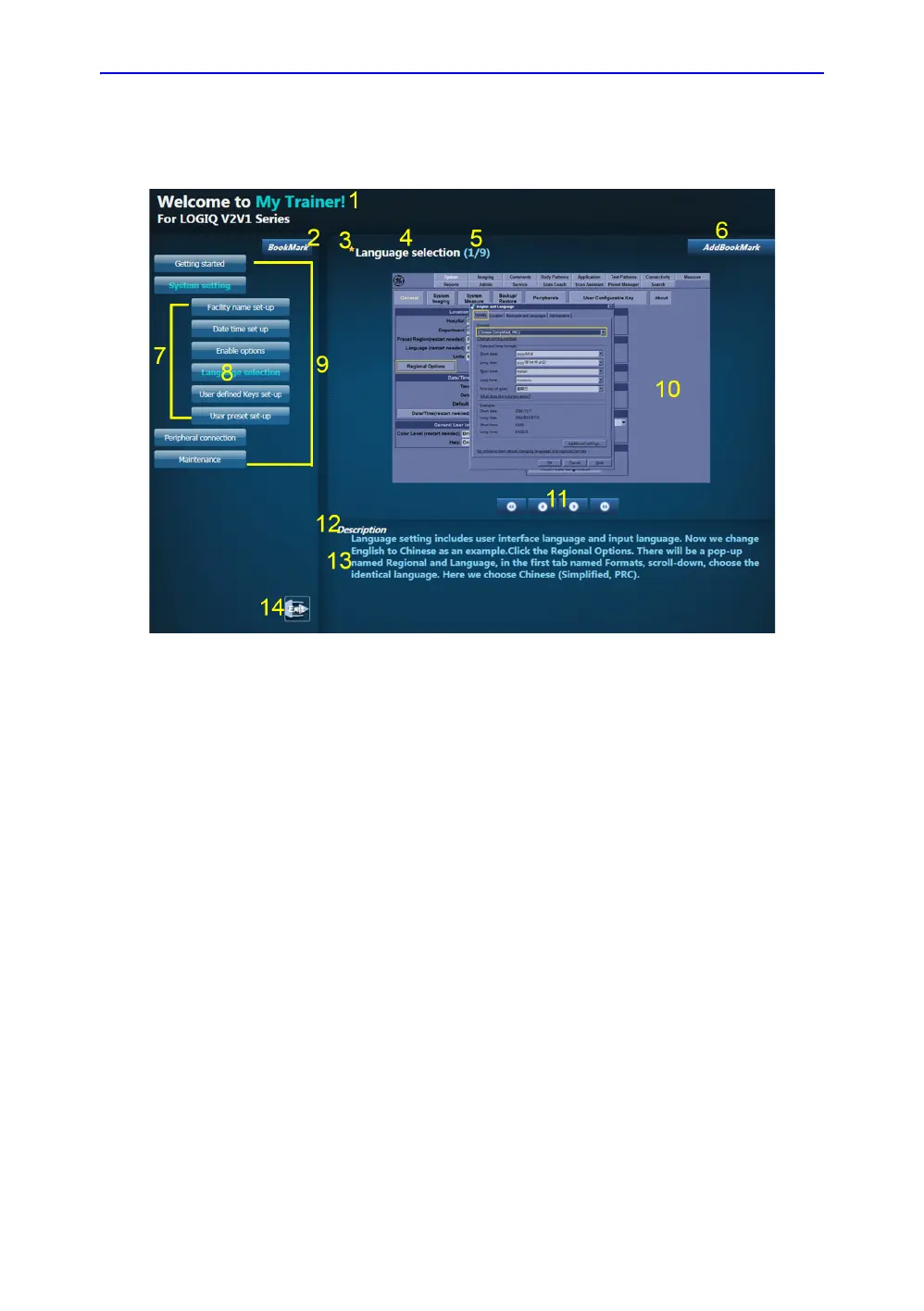

Figure 6-4. Interface Illustration (For R1.1.x)
The interface of the Onboard Help includes below information:
1. Welcome to My Trainer! For LOGIQ V2V1 Series.
2. Bookmark. Select to show the list of sections with
bookmark.
3. The section with bookmark is marked with a star icon.
4. The title of current section.
5. The left number shows the current page of the subsection.
The right number shows the total pages of the subsection.
6. Add bookmark. Select to add bookmark for the current
section. After selection, a star icon will display at the left side
of the section title.
7. Subsections.
8. The highlighted subsection shows this subsection is
currently opened and displayed on the right side.
