GE LOGIQ V1 User Manual

Onboard Help
LOGIQ V2/LOGIQ V1 – User Guide 6-17
Direction 5610736-100 Rev. 9
System Setting (continued)
User Defined keys set-up

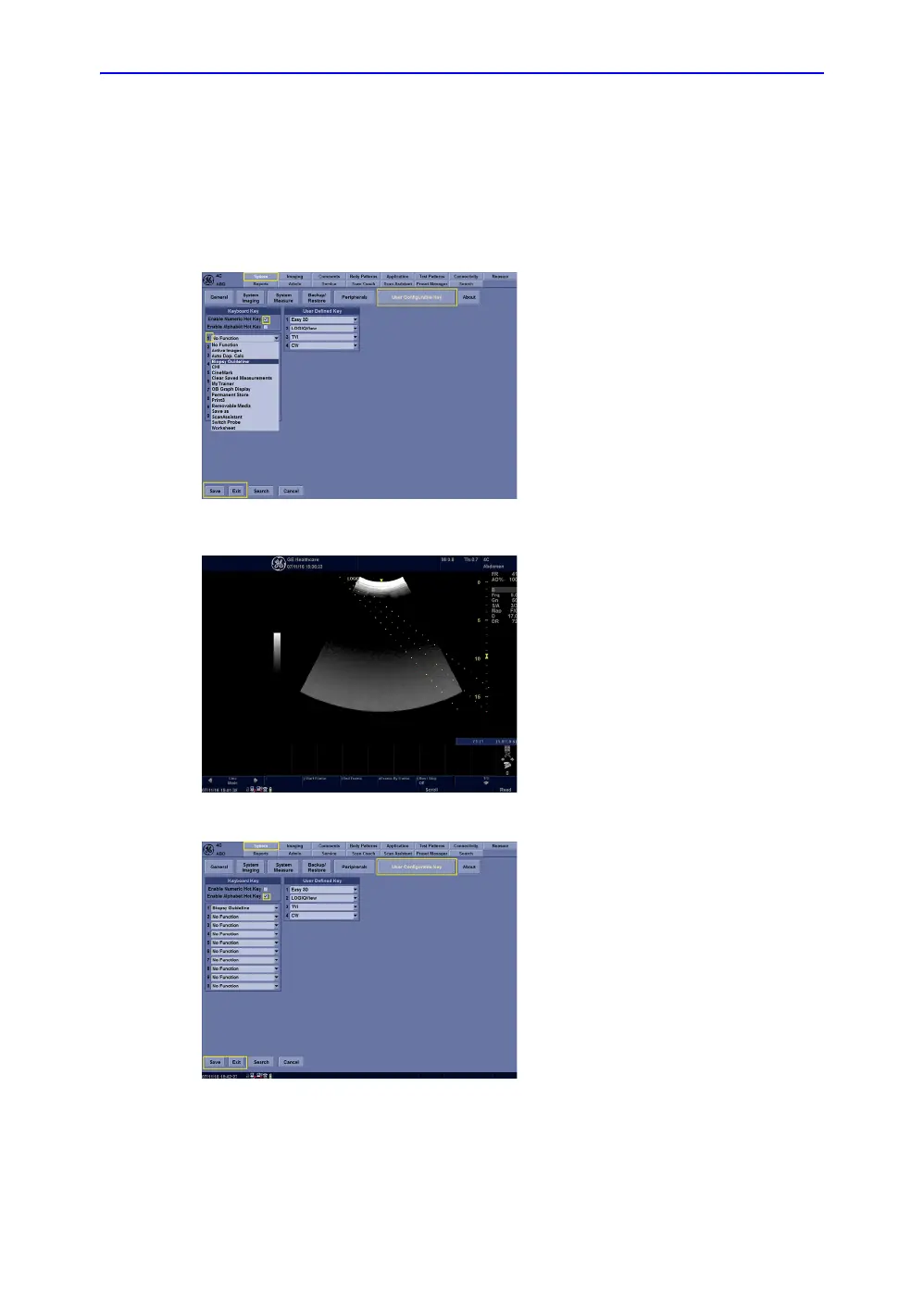

1/9 Press Utility key, then select System
Tab and User Configurable Key tab.
There are three sets of keys that can
be configured and customized for this
device. These include Numeral keys,
Alphabet keys and User Defined keys.
One example is the Numeral 1 key
can be configured to activate the
biopsy guideline. Select the box next
to Enable Numeric Hot Key. Select
the pull-down menu for the number 1
and select Biopsy Guideline. Select
Save at the bottom of the screen. Exit
Utility.
2/9 The Numeral 1 key has been
configured to activate the biopsy
guideline. By pressing the Numeral 1
key, the biopsy guideline will display.
3/9 Press Utility key, then select System
Tab and User Configurable Key tab.
Select the box next to Enable
Alphabet Hot Key.
