GE LOGIQ V1 User Manual

Onboard Help
LOGIQ V2/LOGIQ V1 – User Guide 6-19
Direction 5610736-100 Rev. 9

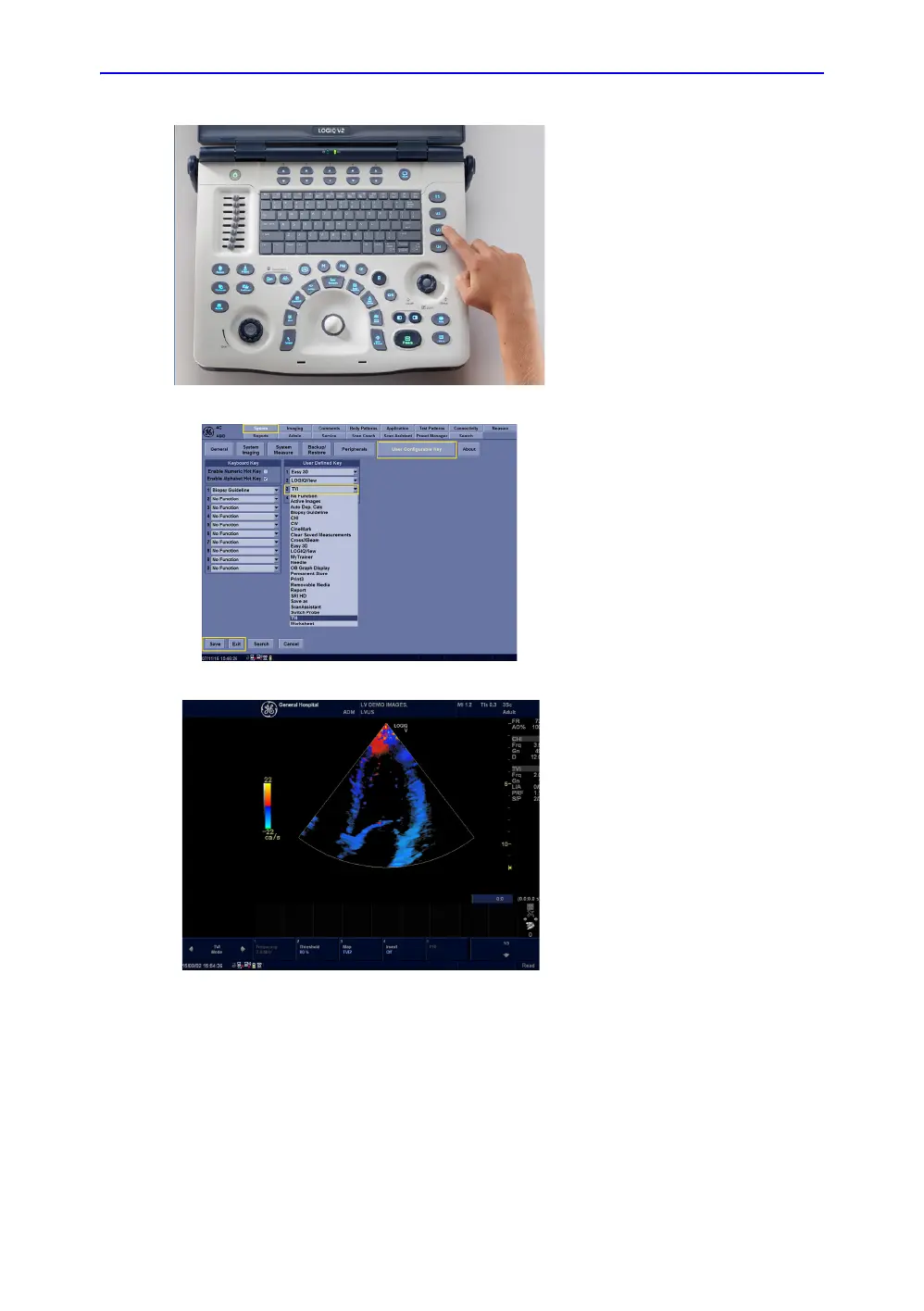

Figure 6-18. User Defined keys set-up
7/9 These are the User Defined keys that
can be configured for modes,
functions, and features.
8/9 Press Utility key, then select System
tab and User Configurable Key tab.
There is a section labeled User
Defined Key. To select a function to be
assigned to the respective User
Defined key U1, U2, U3, or U4, select
the pull down menu for that key. If
additional software options have been
purchased, these keys may be
configured by default. Example: U3 is
defined as TVI.
9/9 Activate 3Sc probe, then press the
U3 User Defined key and TVI mode
will active.

GE LOGIQ V1 Specifications

General

Brand	GE
Model	LOGIQ V1
Category	Medical Equipment
Language	English
