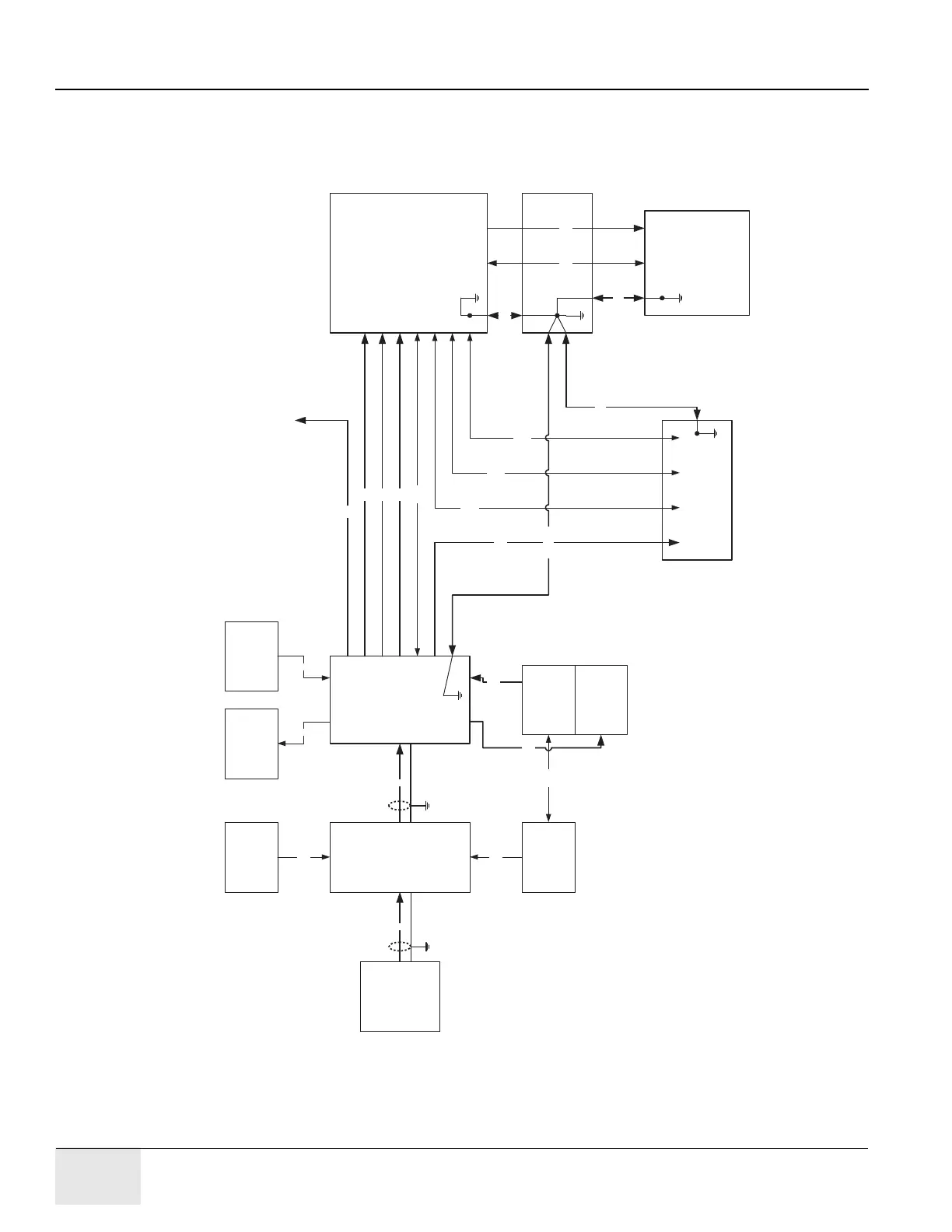

REFER TO 2305993GSP FOR DETAILED CABLE DEFINITIONS
1* MAINS FEEDER, MDP TO A1, 380-480 VAC, 50/60 Hz, 3W+G
2* SUB-FEEDER, A1 TO PDU, 380-480 VAC, 50/60 Hz, 3W+G
3* SYSTEM EMERGENCY OFF, A1 TO SEO, 2W+G
4* X-RAY WARNING LIGHT(S), PDU TO WL, 8W
5* DOOR SWITCH INTERLOCK, DS TO PDU, 2W
50 HVDC, PDU TO GANTRY, 670 VDC, 2W+G+SHIELD
51 HVAC, PDU TO GANTRY, 440 VAC, 50/60 Hz, 3W+G+SHIELD
52 LVAC, PDU TO GANTRY, 120/208Y VAC, 50/60 Hz, 4W+G
53 LVAC, PDU TO CONSOLE, 120 VAC, 50/60 Hz, 2W+G
54 LVAC, GANTRY TO TABLE, 120 VAC, 50/60 Hz, 2W+G
(PART OF GANTRY STATIONARY HARNESS)
60 LVAC, PDU TO UPS, 120/208Y VAC, 50/60 Hz, 3W+G
61 LVAC, UPS DISC PANEL TO PDU, 120/208Y VAC, 50/60 Hz, 3W+G
90 LVAC, PDU TO PET, 120 VAC, 50/60 Hz, 2W+G
100 SIGNAL CABLE, GANTRY TO PDU, 25W SHIELDED CABLE
101 SIGNAL CABLE, GANTRY TO CONSOLE, 25W SHIELDED CABLE
102 SIGNAL CABLE, GANTRY TO CONSOLE, ETHERNET RJ45
103 DATA CABLE, GANTRY TO CONSOLE, FIBER OPTIC
104 SIGNAL CABLE, GANTRY TO TABLE, 25W SHIELDED CABLE
(PART OF GANTRY STATIONARY HARNESS)
110 SIGNAL CABLE, UPS CONTROL TO A1, 5W
111 SIGNAL CABLE, UPS CONTROL TO UPS DISC PANEL, 4W
* NOTE: Runs 1, 2, 3, 4 & 5 are customer supplied. All others are supplied by GEMS.
RACEWAY
53
GANTRY - STATIONARY
A1
DISCONNECT
MAINS
380-480
50, 60 Hz
SEO
SYSTEM
EMERGENCY
OFF
100
101
102
103
2
3
TAB LE
1
NGPDU
POWER
DISTRIBUTION
UNIT
MDP
FACILITY
MAIN
DISTRIBUTION
PANEL
OPERATOR'S CONSOLE
51
50
WL
ROOM
WARNING
LIGHT(S)
4
DS
ROOM DOOR
SWITCH
5
UPS
CONTROL
PANEL
(optional)
UPS
DISCONNECT
PANEL
(optional)
61
60
110
111
#2 GND
#2 GND
1/0 GND
1/0 GND
104 54
UPS
(optional)
90
To PET System if provided.
52
(SAME PIPE)
3 PHASE FEED
+1/0 GROUND
NO NEUTRAL
To Next Page
