GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Chapter 2 - Power, Ground & Interconnect Cables Page 103
2 – Install Power
Section 3.0 Console Connections
3.1 GSCB, Keyboard & Mouse Installation
1.) Route the keyboard cable under the GSCB, as shown in Figure 2-3.

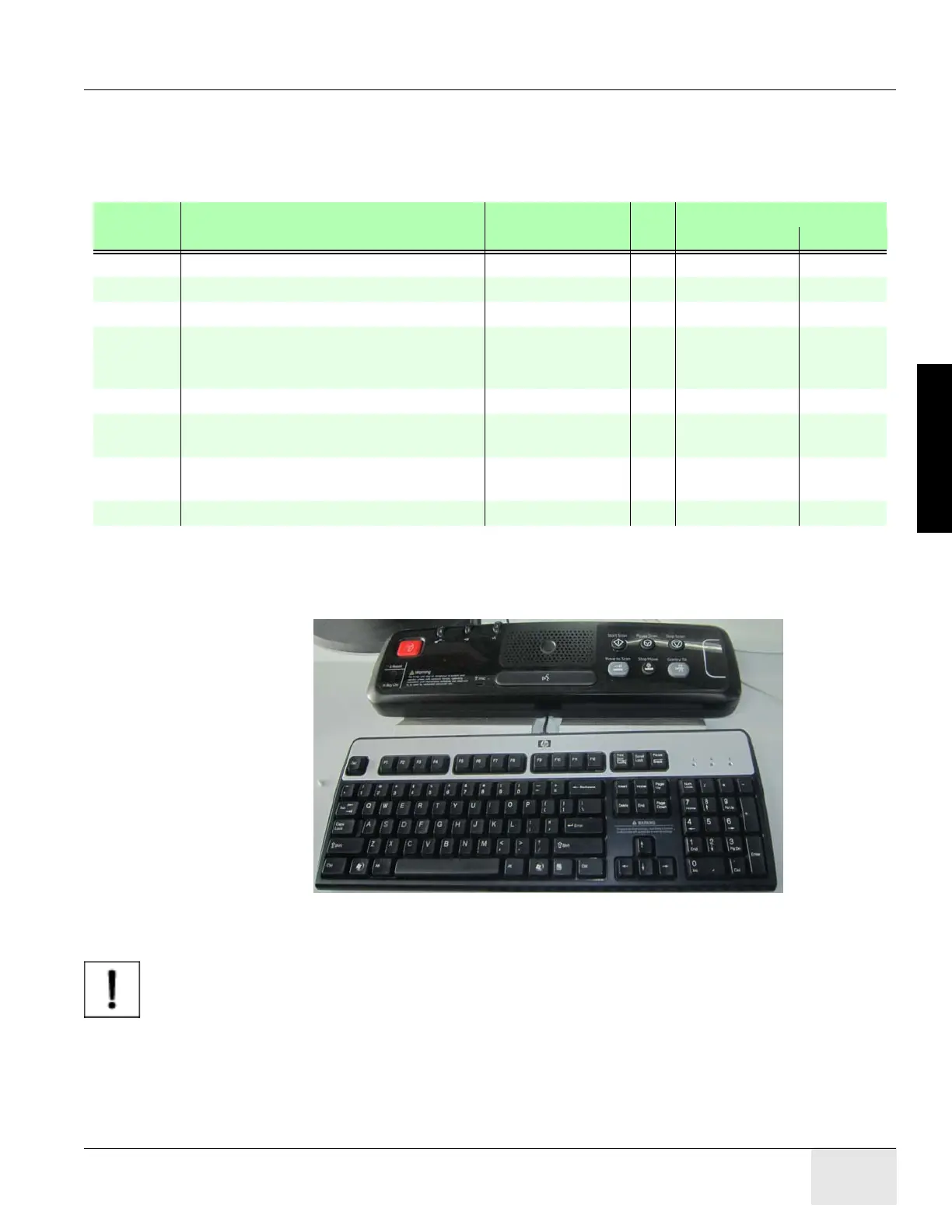

Figure 2-3 GSCB connected to the keyboard
NOTICE Potential for equipment damage
Never connect a mouse or keyboard with the host computer powered “ON”. Doing so
can destroy components within the host computer.
2.) Route the keyboard and mouse cables to NIO64 console.
NOTICE NIO64 has hong cable kit option (5456816).
Refer to the Instruction, NIO Console Long Cable Kit Installation Manual, Service Methods -
>
Installation -> Option-> NIO Console Long Cable Kit Installation (Dir 5456816-1EN)
3.) Select the local language overlay from the keyboard collector (5431062-1-XX) for your system.
PART # DESCRIPTION CONNECT TO QTY LENGTH
INCHES MM
5366514-2 USB EXTENSION CABLE Keyboard 1 140.16 1.18 3560 30
5366514 USB EXTENSION CABLE Mouse 1 118.11 1.18 3000 30
5332107-2 CABLE, DVI to D-SUB VIDEO CABLE Monitor 1 118.11 0.79 3000 20
5315370 CABLE, USB TYPE A-B PMT media Tower,
DVD-RW/USB
external HDD
2 78.74 2000
5408703 DP to DVI cable, 3 meter Monitor 1 118.11 1.97 3000 50
5432953-2
Power Cable, Peripheral Tower to NIO AC
Box
PMT Media Tower 1 120 1.97 3050 50
5432953-3 Power Cable, Display Monitor to NIO AC
Box
Display Monitor 1 120 1.97 3050 50
5432953-4 Power Cable, Scan Monitor to NIO AC Box Scan Monitor 1 120 1.97 3050 50
Table 2-4 GE Healthcare Supplied NIO64 Console Cables
