GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Chapter 3 - System Continuity & Ground Checks Page 139
3 - Continuity Checks
- Damage to the plastic latch or the plastic screws that secure it.

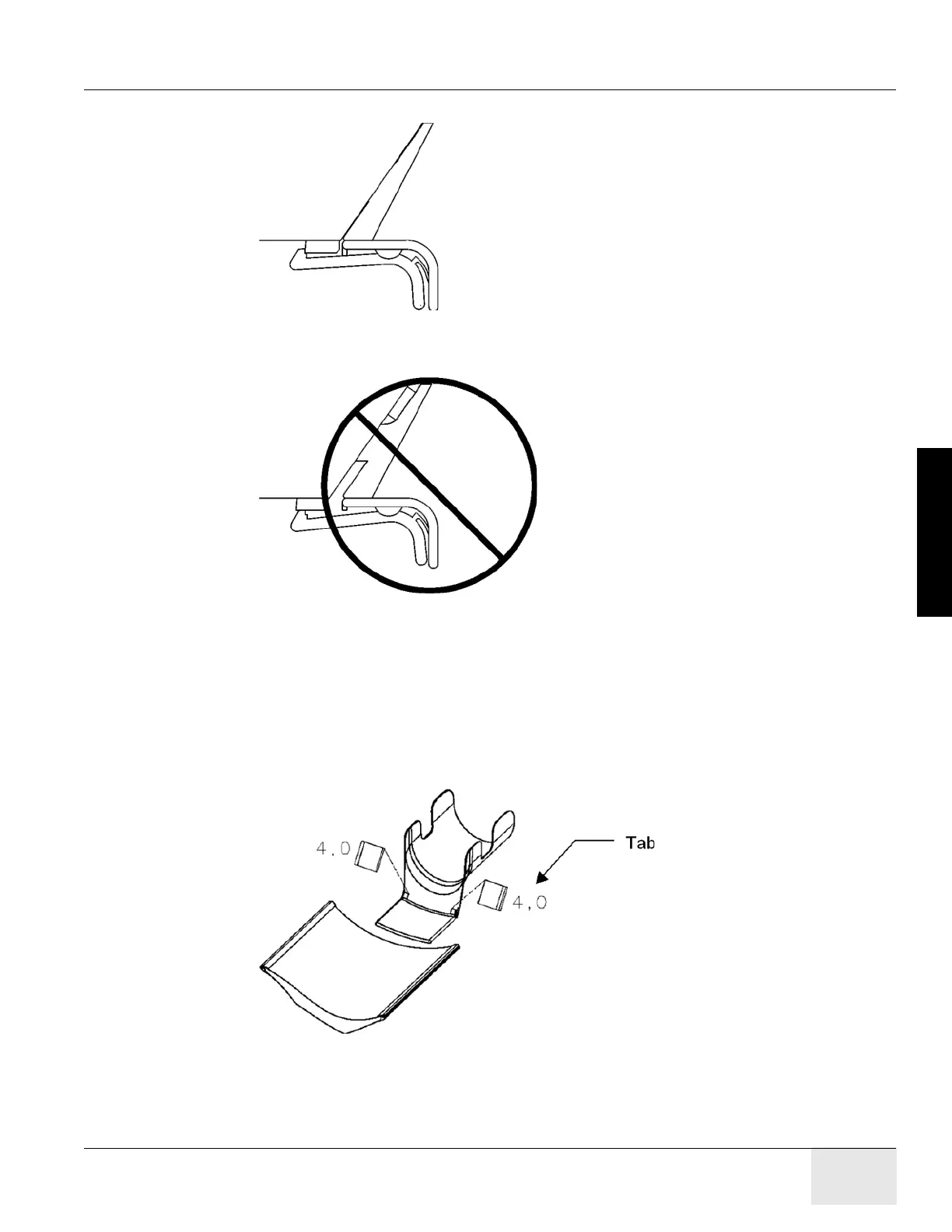

Figure 3-4 Correct - Head Holder is latched onto first step of plastic latch mechanism (The
head holder does not need to be latched onto the second step)
Figure 3-5 Wrong - Head Holder is NOT latched after installing shims
3.4 Procedure
1.) First place the two 4.0mm shims (thickest size) onto both edges of the head holder as shown
(use a piece of tape to temporarily secure them)
- The shim must be placed with the tab facing out
- The thickness is printed on the shim
Figure 3-6 Headholder Tab
2.) Insert the head holder into the cradle
3.) Check if the head holder is latched onto the cradle at the first step of the plastic latch
