GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Page 172 Section 1.0 - Gantry Cover Removal
3.) Unscrew two screws that secure the top cover with Philip top screwdriver.

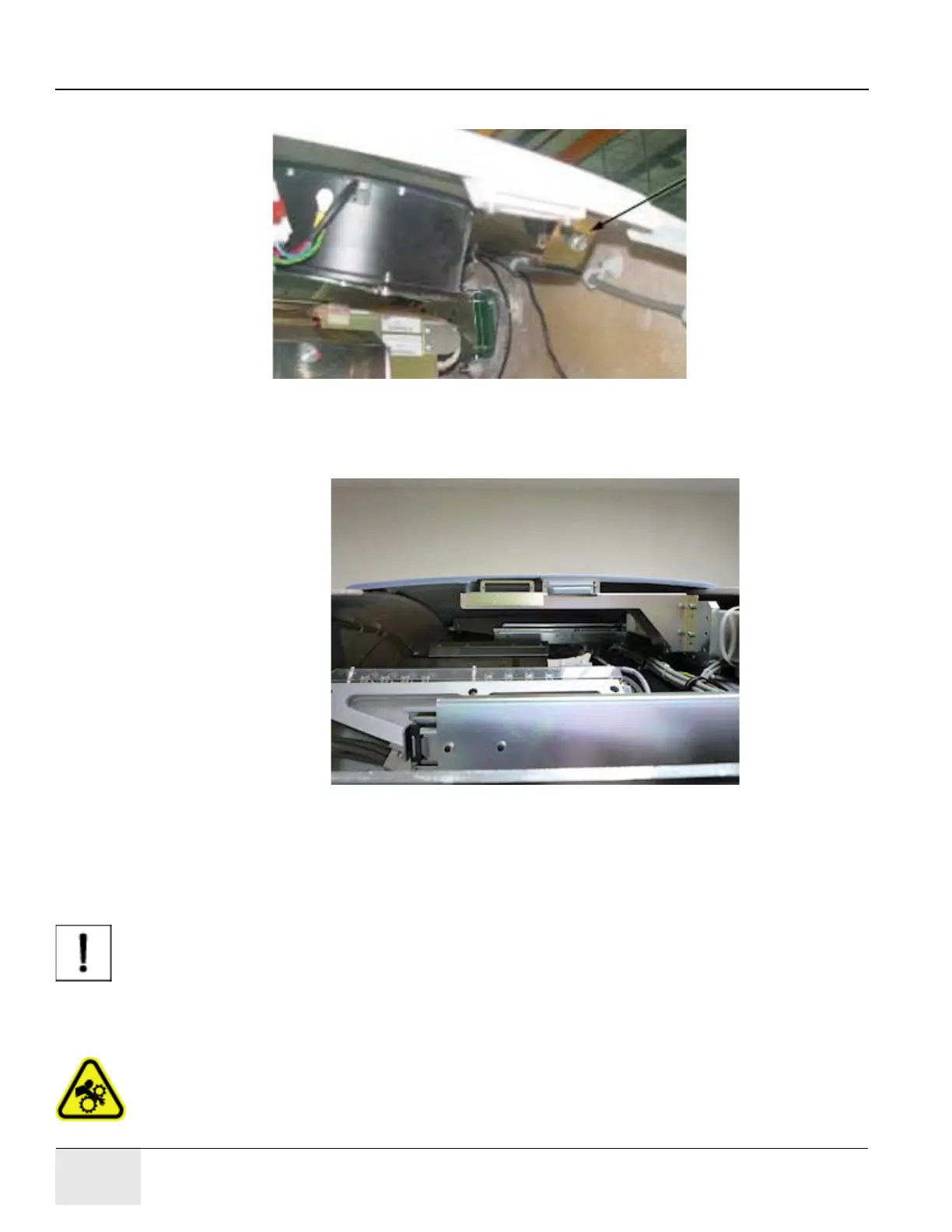

Figure A-6 Screws Securing Top Cover
4.) Take the end of the top cover nearest to the side cover and tilt upwards.
5.) Slide the cover down to disengage the tab from the mounting bracket.
Figure A-7 Top Cover Tabs and Bracket
6.) Lift the cover clear and repeat the above steps for the other cover.
1.3.4 Gantry Front Cover
NOTICE Potential for cover damage.
Front and rear cover removal and installation can be safely accomplished by one (1) person
using the dollies provided with the system. Failure to use these dollies will significantly
increase the likelihood of damage to the covers. Do not lean covers against walls.
Front Cover Dolly Setup
DANGER EQUIPMENT TIP HAZARD
DO NOT USE DOLLIES ON UNEVEN SURFACES SUCH AS STEPS OR ELEVA-
TOR THRESHOLDS. THE DOLLIES ARE DESIGNED TO BE USED ON FLAT
LEVEL FLOORS WITHIN THE SCANNING SUITE ONLY. MISUSE CAN RESULT
