GE COMPANY

DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL

Chapter 2 - Power, Ground & Interconnect Cables Page 111

2 – Install Power

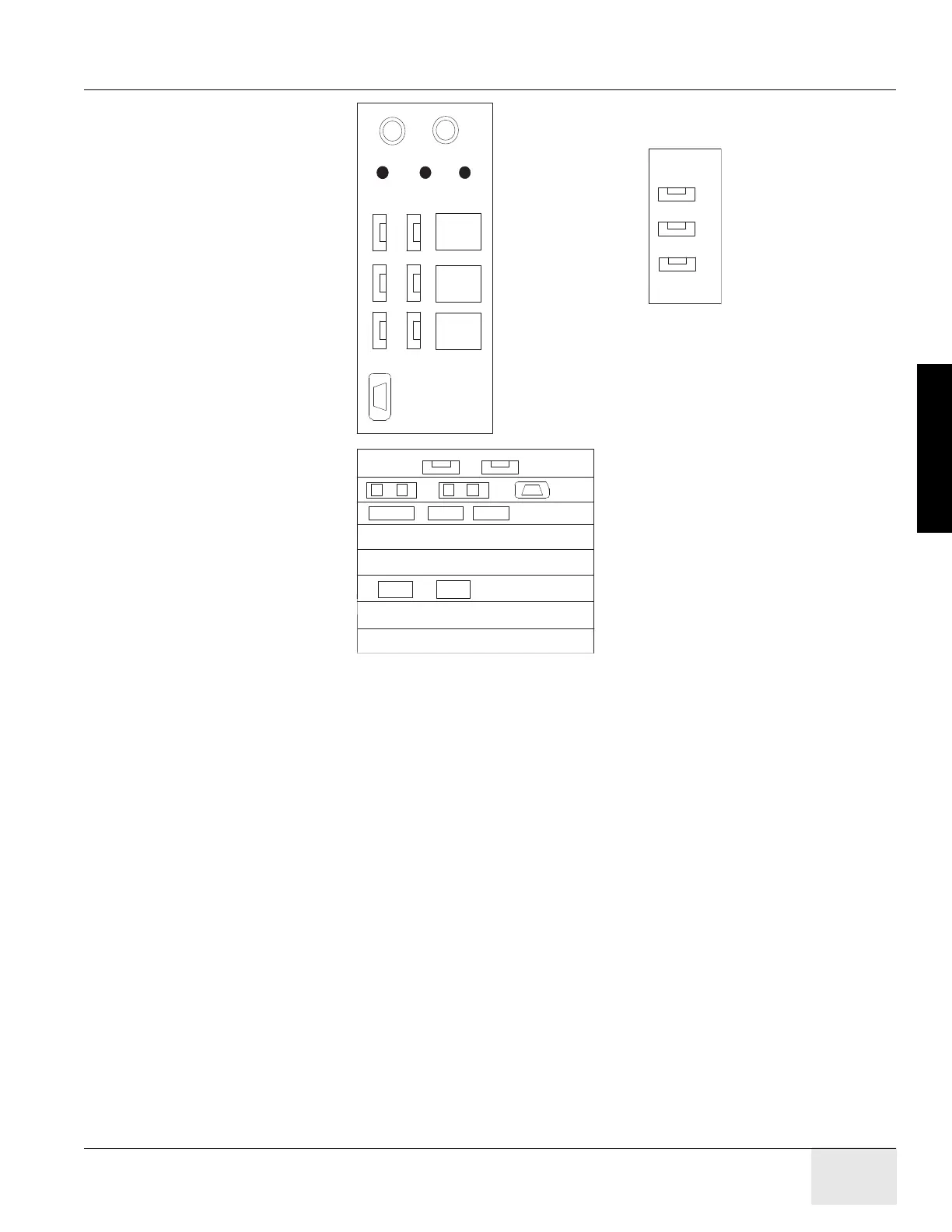

Figure 2-13 Host Computer (Z820) Connections

Purple

Green

ETH3

PINK

GRN

BLUE

MIC

AOUT

AIN

Graphic Card

GPU

ETH1

ETH0

DP1DP0DVI

USB

1. Keyboard

2. Mouse

3. Trackball

4. BarCode Reader

5. Reserved

6. Reserved

7. EXT-HDD

8. DVD-RW

9. Service key

10. Reserved

11. Reserved

ETH

0. Reserved

1. TGP

2. HSP

3. Switch Hub

DVI-I: Display Monitor

DP0: Scan Monitor

DIP (D-SUB): GSCB X-ray Abort

Serial Port

1394

ETH2

BLUE: GSCB AUDIO OUT

GRN: GSCB AUDIO IN

Front Side

USB PORTS

Serial Port: GSCB

DP1: Reserved

RAID CARD

DIP

TX TXRX
