DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL

Page 180 Section 1.0 - Gantry Cover Removal

c.) Side the rear cover backward.

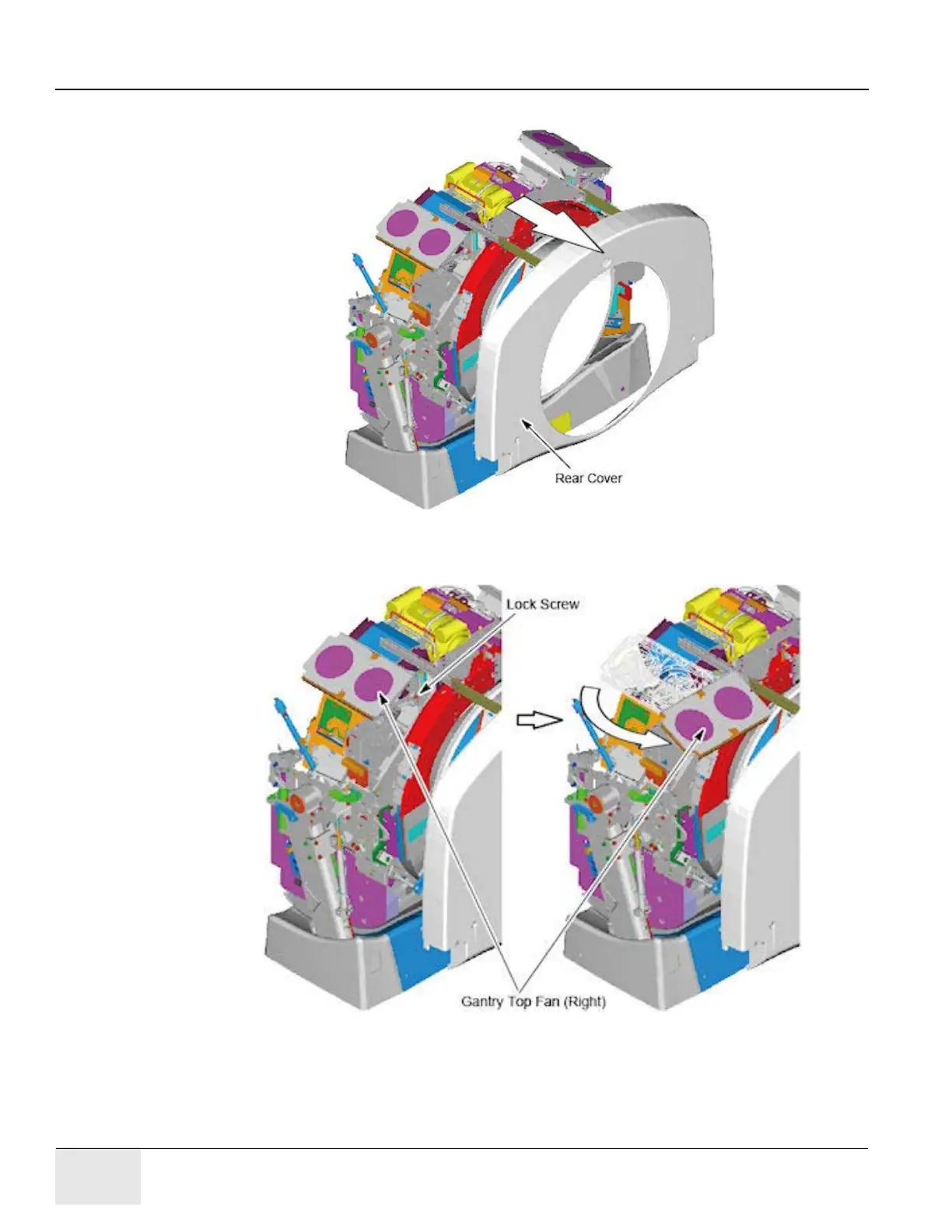

Figure A-21 Rear Cover Slide

d.) Loosen the lock screw of the right top fan of the gantry, and rotate the right top fan.

Figure A-22 Top Fan Rotation
