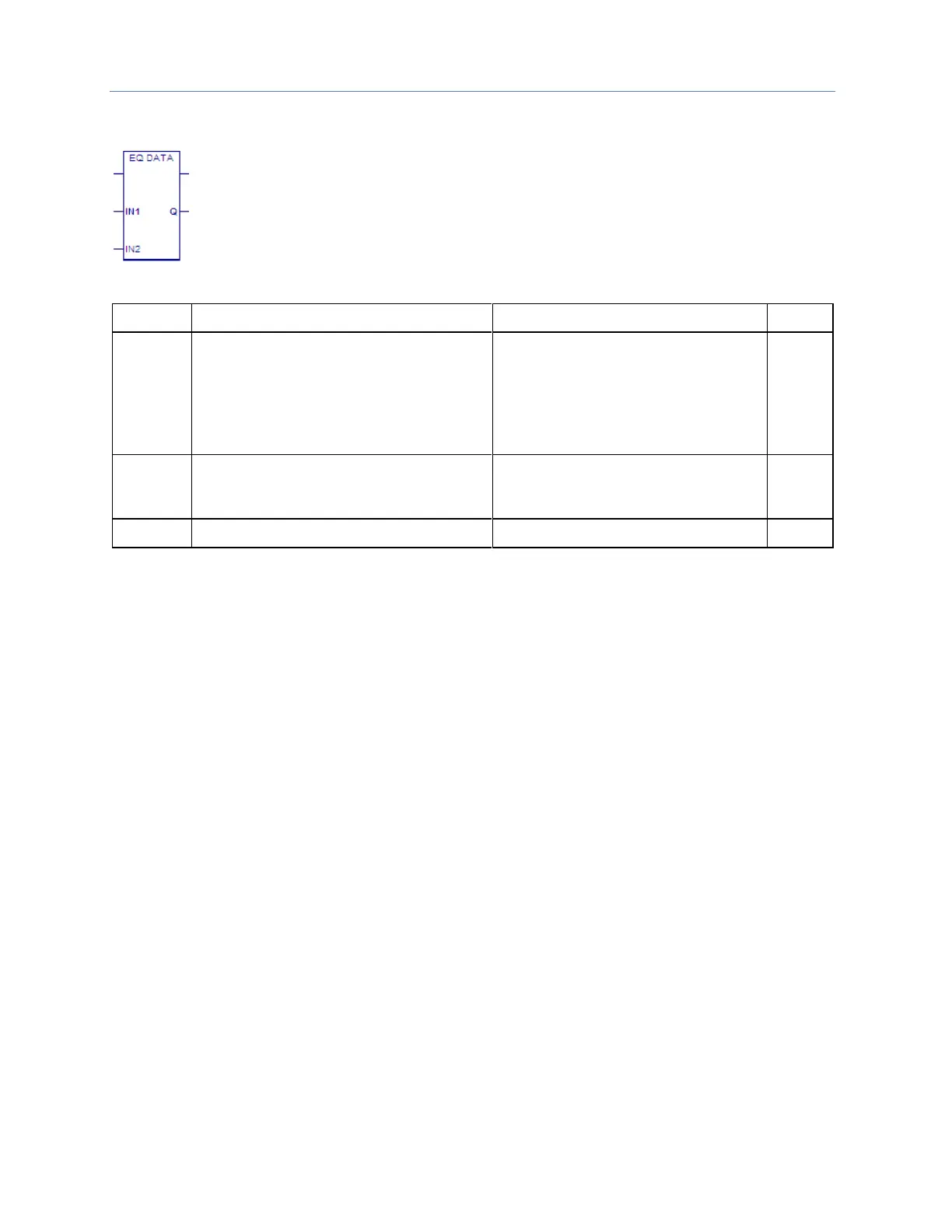

4.12.3 EQ_DATA
The EQ_DATA function compares two input variables, IN1 and IN2 of the
same data type. If IN1 and IN2 are equal, output Q is energized. If they are
not equal, Q is cleared.
The first value to be compared; the value on
the left side of the relational statement.
PACMotion ENUM variable or structure
variable.
For details, refer to Data Types and
Structures in the PACMotion Multi-Axis
Motion Controller User’s Manual,
GFK-2448.
The second value to be compared; the value
on the right side of the relational statement.
IN2 must be the same data type as IN1.
PACMotion ENUM variable or structure
variable.
If IN1 or IN2 is true, Q is energized.
