GE PACSystems RX7i

Chapter 5. Function Block Diagram (FBD)
270 PACSystems* RX7i, RX3i and RSTi-EP CPU Programmer's Reference Manual GFK-2950C

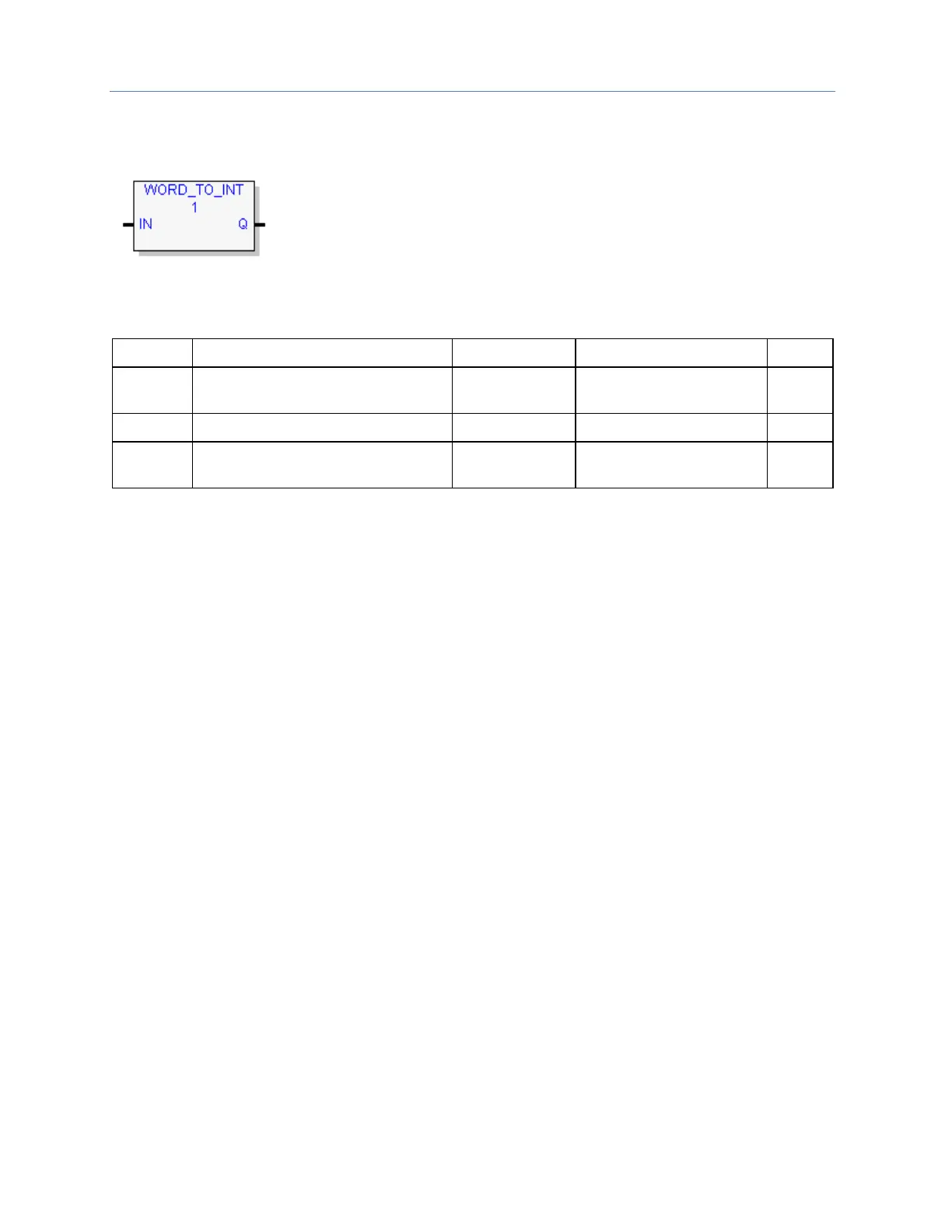

5.12.1 Convert WORD to INT
Converts the input data into the equivalent single-precision signed integer
(INT) value, which it outputs to Q. This function does not change the
original input data. The output data can be used directly as input for
another program function, as in the examples.
The function passes data to Q, unless the data is out of range (0 through
+65,535).
Operands
Parameter
Description
Allowed Types
Allowed Operands
Optional
Solve
Order
Calculated by the FBD editor.
NA
NA
No
IN
The value to convert to INT.
WORD
All except S, SA, SB, and SC
No
Q
The INT equivalent value of the original
value in IN.
INT
All except S, SA, SB, SC and
constant
No
