Chapter 5. Function Block Diagram (FBD)

GFK-2950C February 2018 263

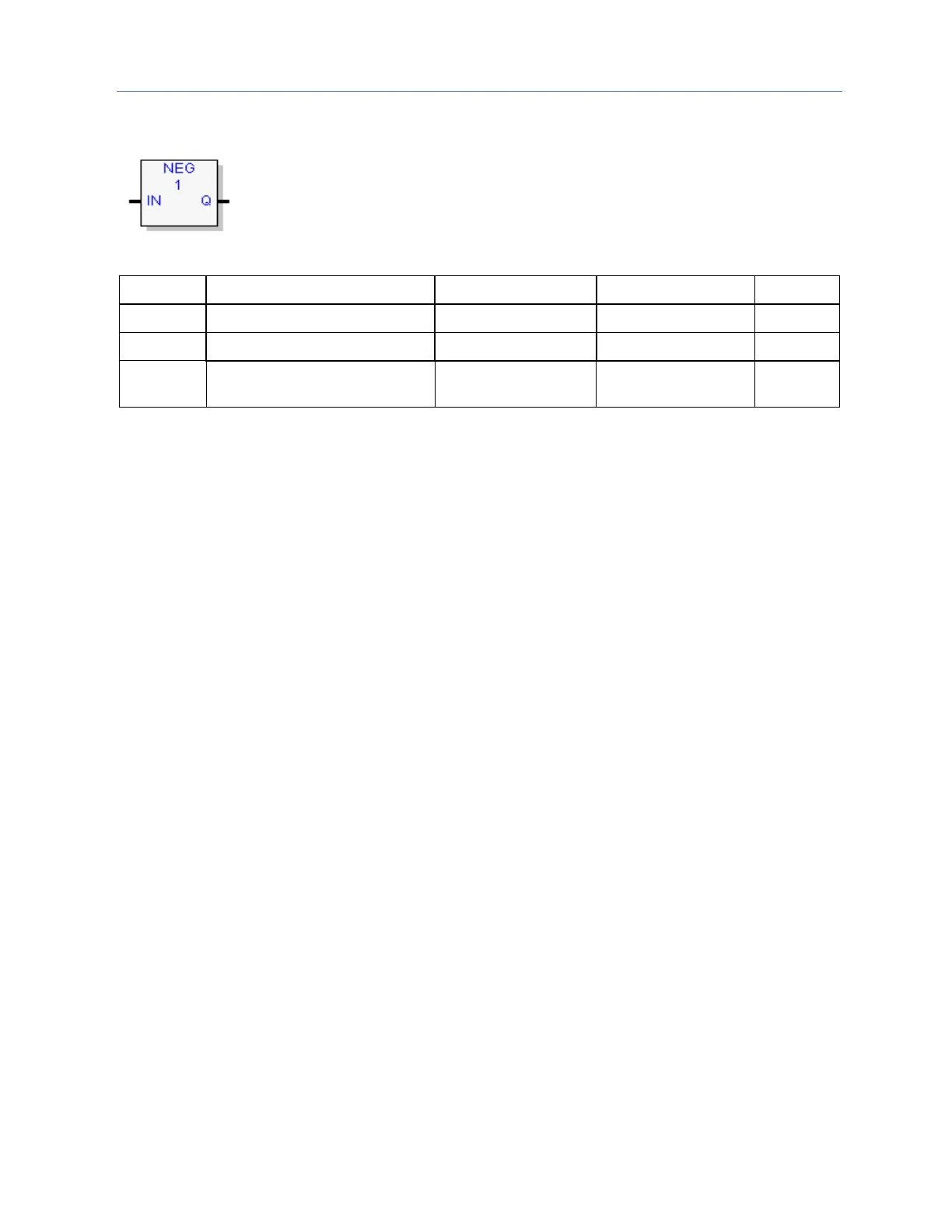

5.9.6 Negate

Multiplies a number by –1 and places the result in the output location, Q.

Operands

Parameter

Description

Allowed Types

Allowed Operands

Optional

Solve Order

Calculated by the FBD editor.

The value to be negated.

INT, DINT, REAL

All except S, SA, SB, SC

The result, -1(IN)

INT, DINT, REAL variable

All except S, SA, SB, SC

and constant
