Chapter 5. Function Block Diagram (FBD)

242 PACSystems* RX7i, RX3i and RSTi-EP CPU Programmer's Reference Manual GFK-2950C

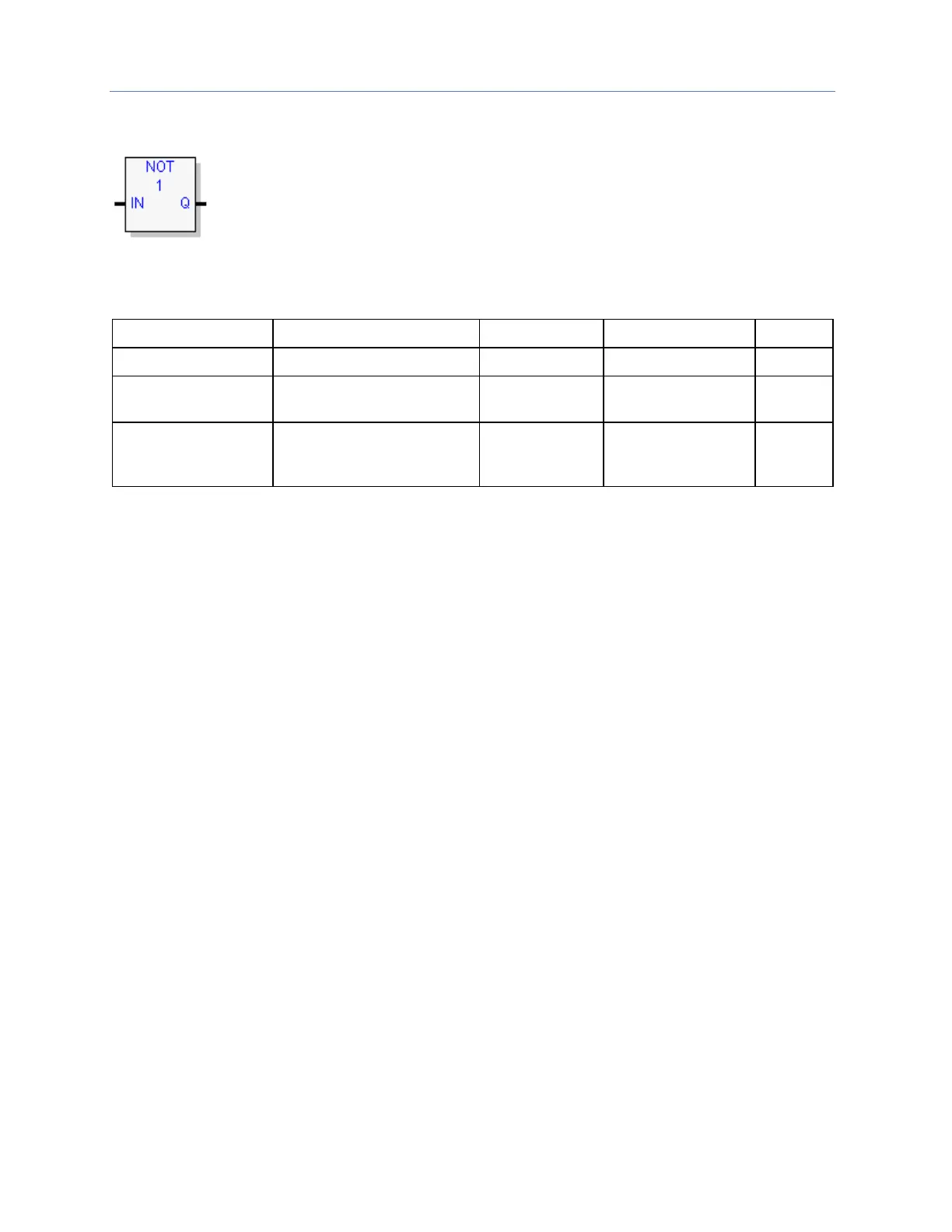

5.3.2 Logical NOT

The Logical Not or Logical Invert (NOT) function sets the state of each bit in the

output bit string Q to the opposite of the state of the corresponding bit in bit

string IN1.

All bits are altered on each scan that input is received, making output string Q

the logical complement of input string IN1.

Operands

Parameter

Description

Allowed Types

Allowed Operands

Optional

Solve Order

Calculated by the FBD editor.

IN1

The input string to NOT.

WORD

DWORD

All

Q (Must be the same

data type as IN1)

The NOT's result.

WORD

DWORD

All except constants

and variables located

in %S memory
