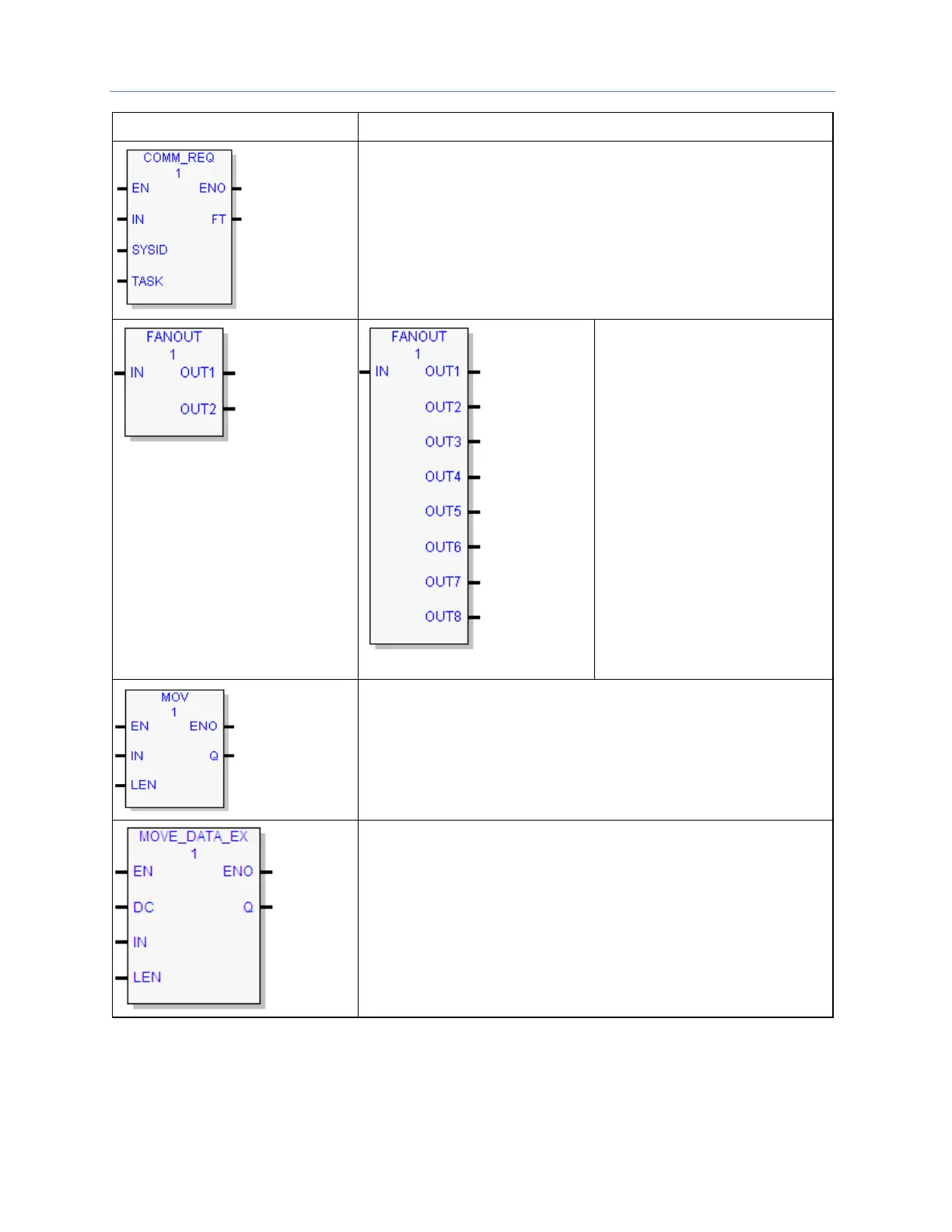

Communication Request. Allows the program to communicate with an
intelligent module, such as a Genius Bus Controller or a High Speed
Counter.
For details, refer to Communication Request in Chapter 4.
Fan Out. Copies the input value to
multiple outputs of the same data
type as the input.
For details, refer to Fan Out below.
Move Data. Copies data as individual bits, so the new location does not
have to be the same data type. Data can be moved into a different data
type without prior conversion.
For details, refer to Move Data below.
Move Data Explicit. Provides data coherency by locking symbolic
memory being written to during the copy operation.
For details, refer to Data Move Functions in Chapter 4.
Note: FBD and ST do not support the constant 0 as a value for the
input IN.
