ActionStep
Connect the ReadyToProcess Pump 25 unit(s) to the rocker.2
1
Connect the supplied UniNet cable from the UniNet-9 port on the rear
panel of the each pump (see Rear view of the pump, on page 56) to the
next available UniNet-9 port on the rocker rear panel.
2
Set the pump CAN ID to position 1 for the first pump, position 2 for the
second pump, and position 3 for the third pump.
Tip:
Label the pump units with their respective CAN ID to simplify identification
in the UNICORN software.
Connect the filter heater(s) to the rocker.3
Connect the filter heater cable to the filter heater port on the rocker rear
panel. Two filter heaters are used in dual mode, one connected to each filter
heater port.
Note:
The filter heater connector snaps into place in the socket to prevent it from
being disconnected by a sudden pull. To release the connector, pull the con-
nector sleeve away from the socket.

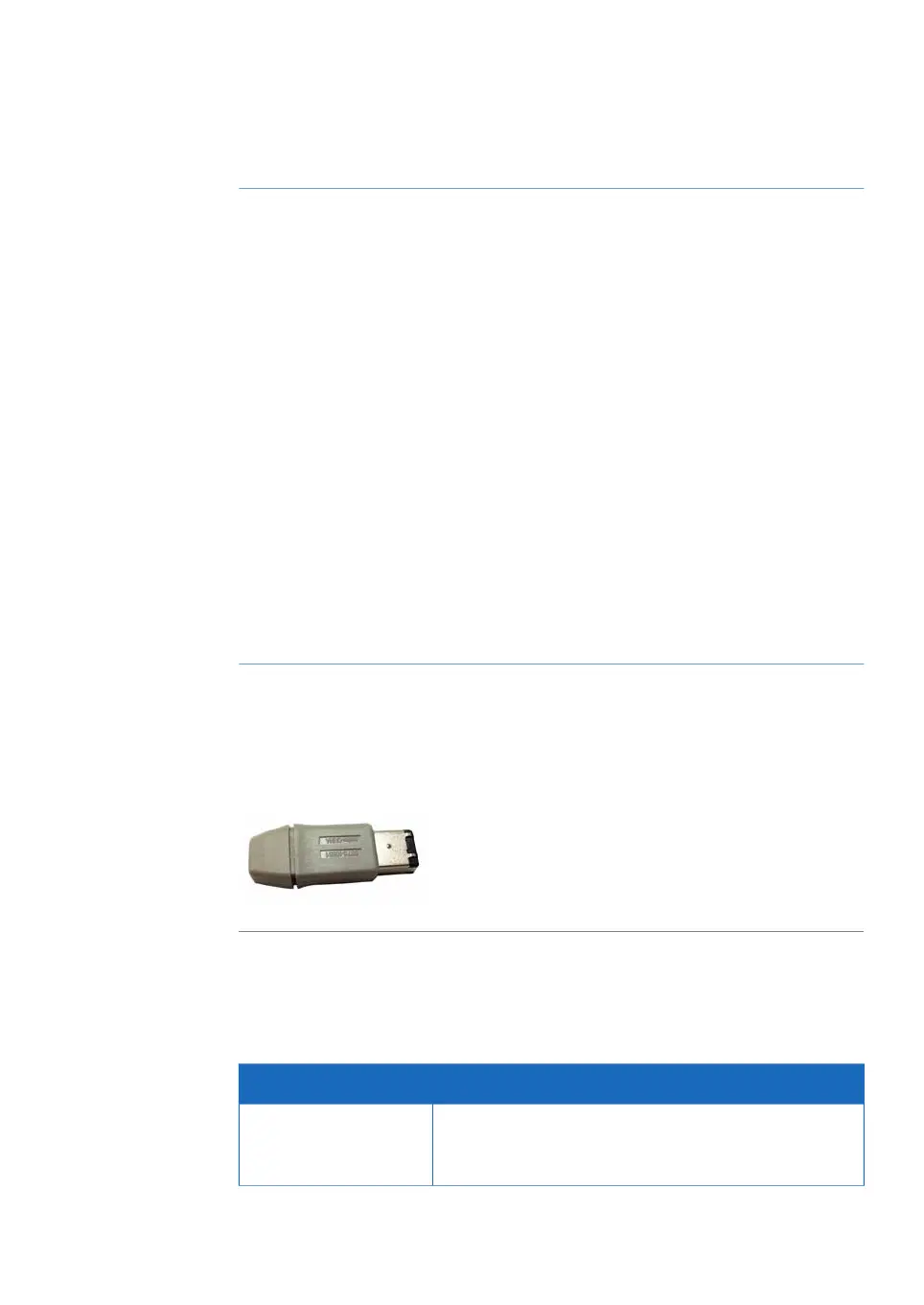

Jumpers
Insert jumpers into any unused UniNet-9 ports on the rocker. Jumpers are provided with
the system.
Connect to network or computer
The system can be connected to a stand-alone computer, or to a network using either
Ethernet or wireless connection. Follow the appropriate instruction in the table below.
InstructionConnection
Connect a network cable between the Ethernet connector
on the rear panel of the rocker and the Ethernet port on
the computer.
Stand-alone computer
ReadyToProcess WAVE 25 Operating Instructions 29009597 AD 87
4 Installation
4.2 Hardware installation
4.2.2 Connect the system components
