1.3.1. Display and keys
1
2
3
9
8
7
4
65
1
Unit of measurement or number of program running or number
of loop displayed.
2
State of outputs OUT1, OU2, OUT3, OUT4.
3
Controller function states::
● RUN = functioning (flashing = normal functioning, steady
on = program running);
● _/- = rsetpoint ramp active;
● TUN = PID parameters tuning active;
● MAN = manual/automatic (off = automatic control,
on = manual control);
● REM = remote setpoint enabled;
● SP1/2 = setpoint active (off = setpoint 1, on = setpoint 2).
4
Work mode key (manual/automatic) in standard mode. A function
can be assigned via parameter but1. The key is active only when
the display shows the process variable (HOME).
5
TUp/down keys: raise/lower the value of the parameter displayed
on the SV or PV display.
6
F key: lets you navigate among controller menus and parameters.
Confirms the parameter value and selects the next parameter.
7
Key pressed signals.
8
SV display: setpoint value, description of parameters, diagnostics
and alarm messages. Configurable with parameter dS.SP (default
= setpoint).
9
PV display: process variable, parameter values.

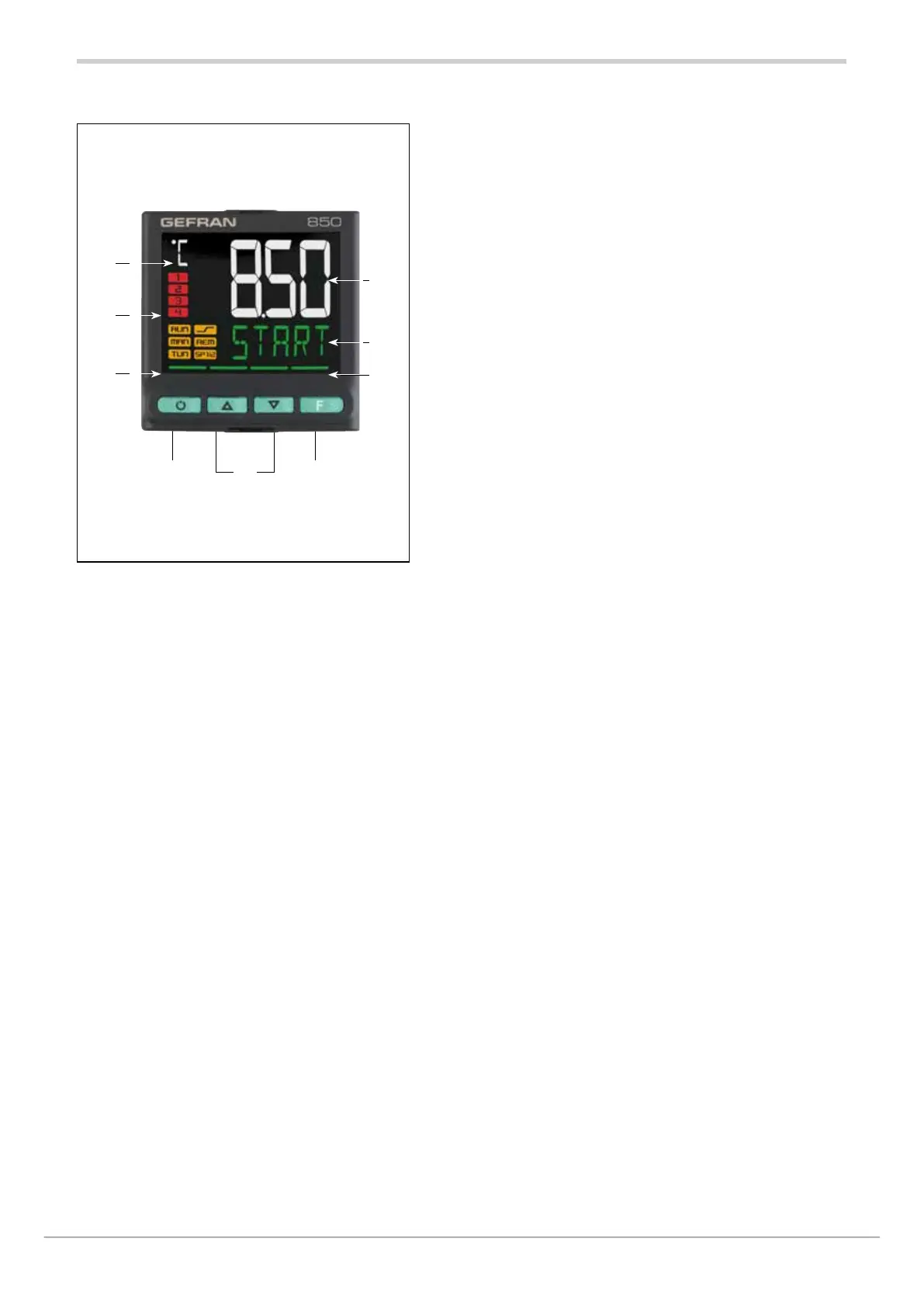

Figure 1 - Description of 850 display and keys
