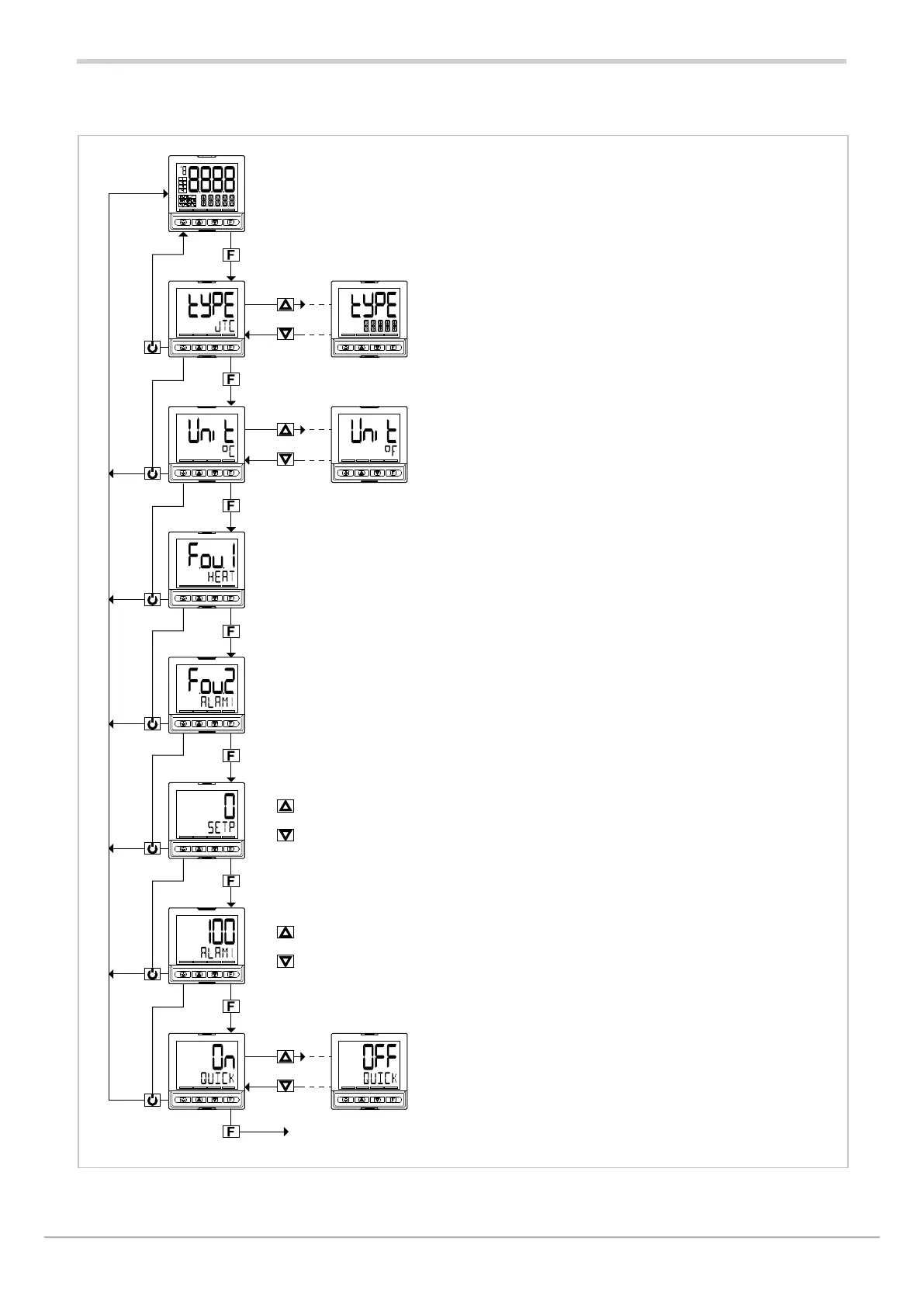

5.1.2. Quick configuration procedure for model 850–D-R00-00000-1
Home
Selecting sensor type
Selezione unità di misura
The unit of measurement can be °C or °F only if a TC or
Rtd sensor is selected
Select output 1 function
The functions proposed are based on type of logic output.
Select output 2 function
The functions proposed are based on type of logic output.
Setting Setpoint
Impostazione Allarme 1
Default: assoluto di massima diretto
Enable/disable quick configuration
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
raises the value
lowers the value
raises the value
lowers the value
return to select sensory type
