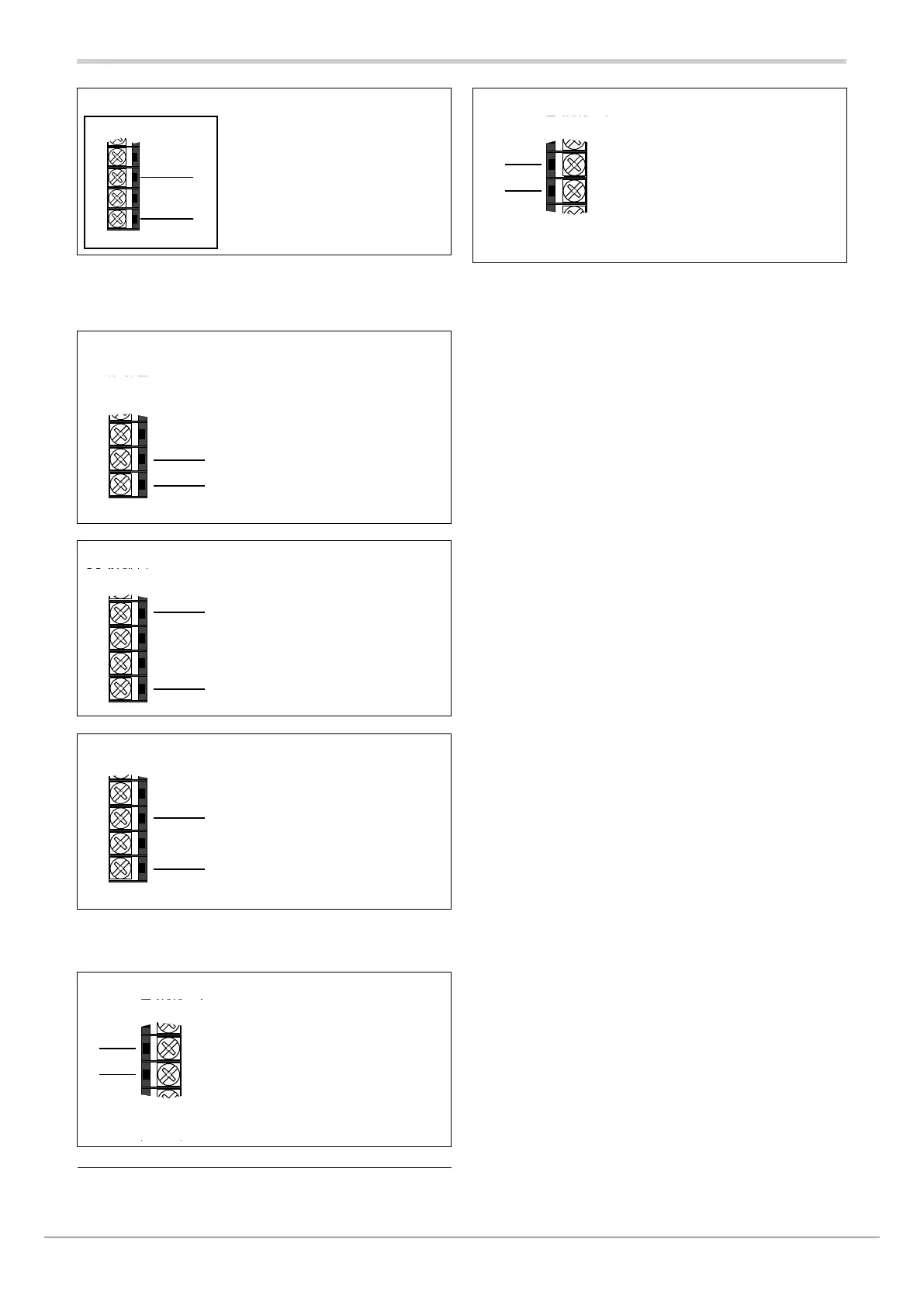

Potentiometer VP1 or transmitter VT2 supply
6
5
28
VP1 o VT2
27
26
25
+
-
VP1 = 1 VDC ±1%, max 30 mA
[with option auxiliary input = 2]
VT2 = 24 VDC ±10%, max 30 mA
[with option auxiliary input = 3]
2.4.9. Third Analogue input (AUX2)
High impedance linear input (V)
[with third input option (H) = 3].
36
35
36
36
35
34
+
-
Linear input with direct voltage
0...1V Ri >100MΩ
0…1.2V Ri>100MΩ
0…2.4V Ri>100MΩ
Linear input (V/I) [with third input option (H) = 3]
36
35
36
35
34
33
+
-
Linear input with direct voltage and
current
0…1V / 0…5V / 0…10V Ri>400kΩ
0…20mA / 4…20mA Ri=50Ω
VP2 potentiometer power supply
36
35
36
35
34
33
+
VP2
-
VP2= 1VDC + - 1% max 30mA
2.4.10. Analog outputs
Analog output A1
7
8
30
29
28
25
-
+
0...10 V, max 20 mA Rout > 500 Ω
0...20 mA / 4...20 mA Rout < 500 Ω
Analog output A2
7
8
32
31
28
25
-
+
0...10 V, max 20 mA Rout > 500 Ω
0...20 mA / 4...20 mA Rout < 500 Ω
