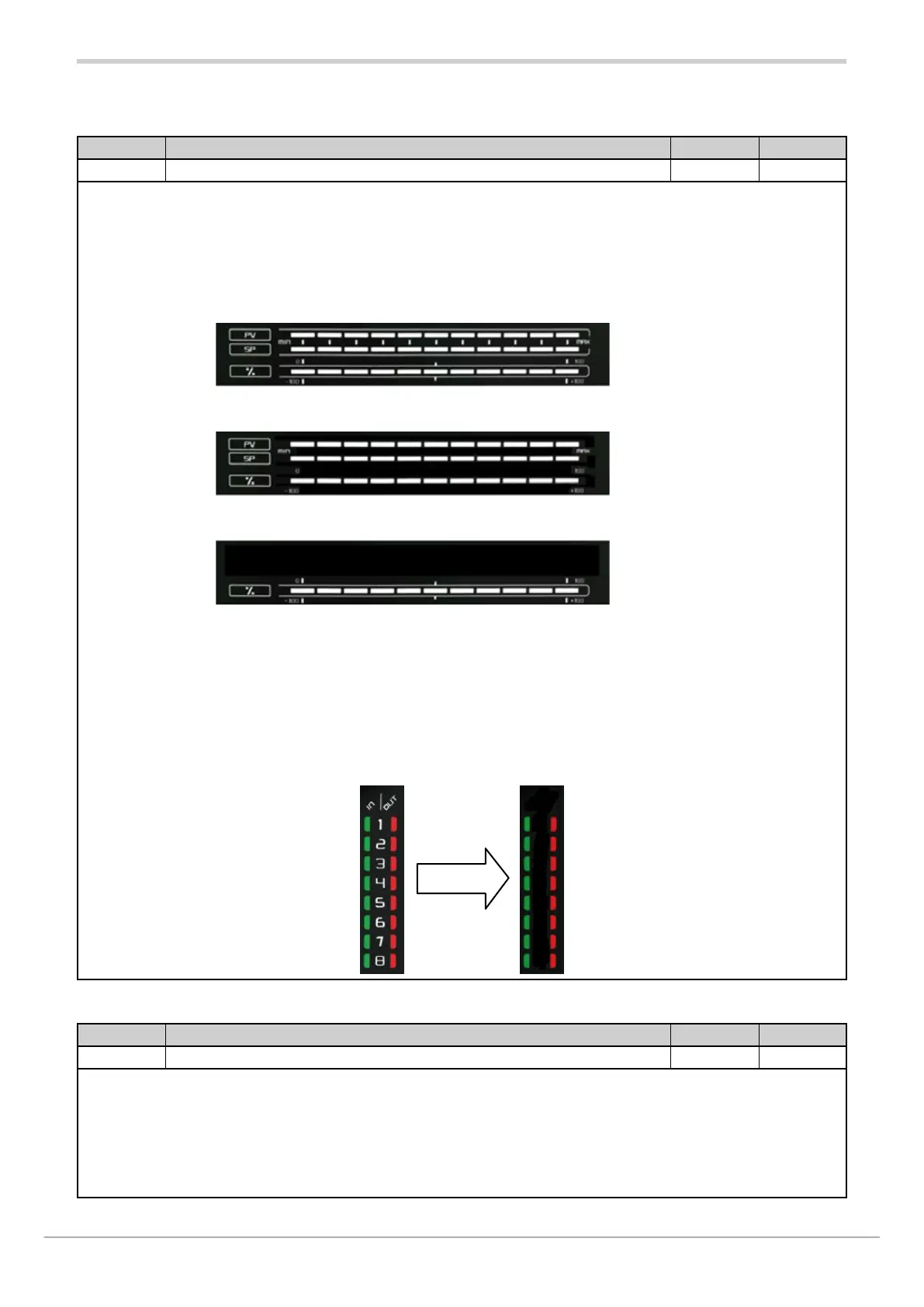

4.27.2. BAR.E - Enable bargraph display on Home menus
Acronym Scrolling message Submenu Attributes
bAr.E BARGRAPH ENABLE HMI R W
The parameter enables the display of bargraphs. The parameter appears only if the controller is 1650 or 1850.
Unit of measurement: -
Options: OFF = Disables display of three bargraphs bAr.1, bAr.2, bAr.3, of IN/OUT frame (only for 1850),
and of figures from 1 to 8 (only for 1850)
ON.ALL = Enables display of three bargraphs bAr.1, bAr.2 and bAr.3 including frames (default)
NO.FRA = Enables display of three bargraphs bAr.1, bAr.2 and bAr.3 without frames
ON.3LY = Enables display of bargraph bAr.3 only
Only for 1850
ON.AL1 = Enables display of three bargraphs bAr.1, bAr.2 and bAr.3 including frames (default).
Disables display of IN/OUT frame and of figures from 1 to 8
NO.FR1 = Enables display of three bargraphs bAr.1, bAr.2 and bAr.3 without frames.
Disables display of IN/OUT frame and of figures from 1 to 8.
ON.3L1 = Enables display of bargraph bAr.3 only.
Disables display of IN/OUT frame and of figures from 1 to 8.
4.27.3. LANG - Selecting language for messages
Acronym Scrolling message Submenu Attributes
LAnG MESSAGE LANGUAGE HMI R W
The parameter shows and sets the language for the scrolling messages.
Unit of measurement: -
Options: LANG1 = Language 1 (English)
LANG2 = Language 2 (Italian)
LANG3 = Language 3
NONE = No language
