80209C_MHW_850-1650-1850_02-2020_ENG_pag. 85

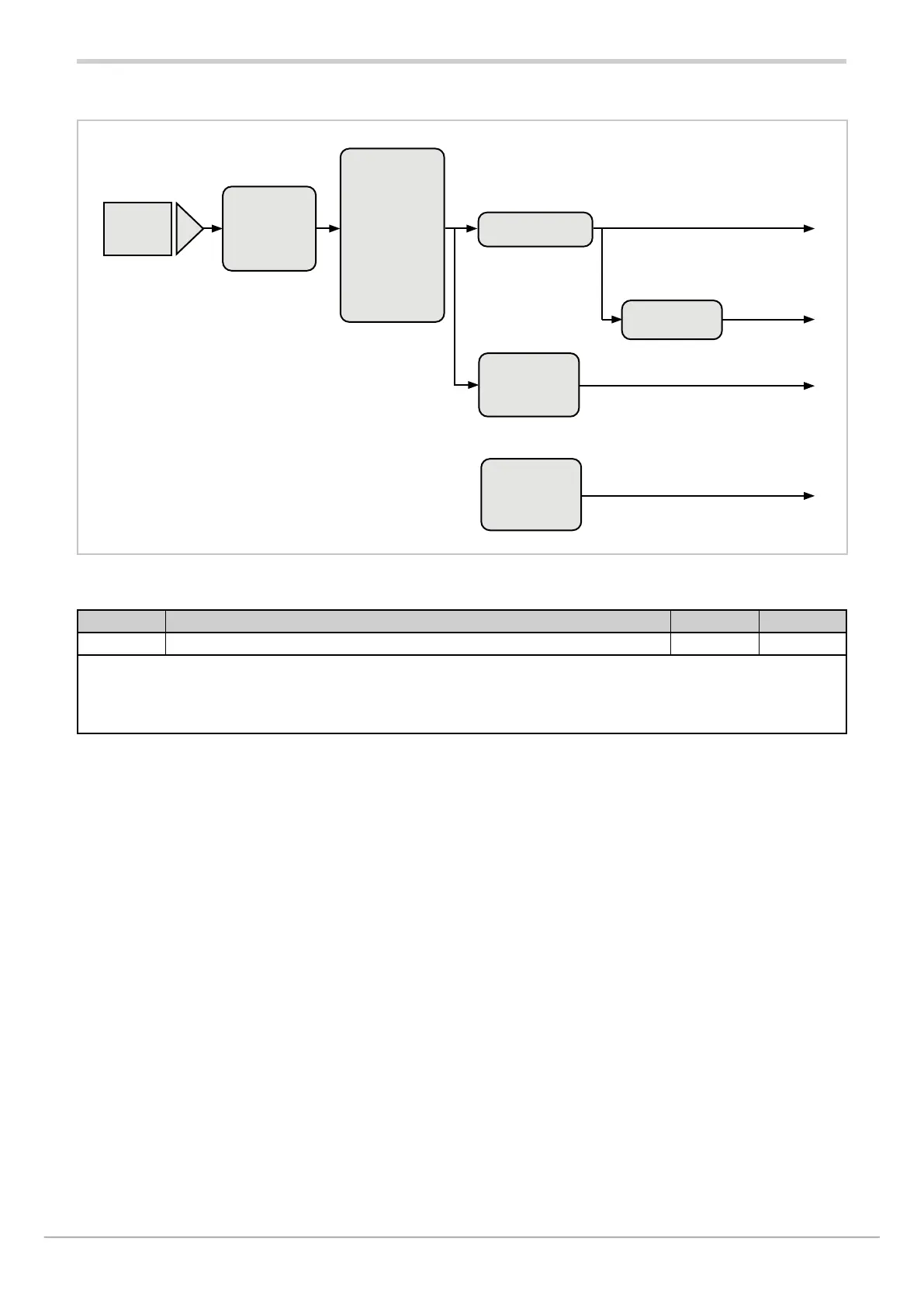

4.9.1. Functional schema
Sensor type
TYPE pag. <?>
Signal
linearization
LIN pag. <?>
Low pass filter
FILT pag. 91
Digital filter
FILT.D pag. 92
Scale limits
LO.SCL pag. <?>
HI.SCL pag. 93
Offset
OF.SCL pag. 94
Decimal point
DEC.P pag. 92
Unit of
measurement
UNIT pag. 91
Absolute
alarm
scale limits
LO.AL pag. 94
HI.AL pag. 94
Setpoint
scale limits
LO.SP pag. 94
HI.SP pag. 94
Analog
input
signal
Input value (IN.x)
Process variable (PV.x)
Setpoint scale limits
Absolute alarm scale limits
Process
variable
shown on
the display
4.9.2. INP.N - Selecting the analog input
Acronym Scrolling message Submenu Attributes
INP.N INPUT NUMBER INPUT R W
The parameter shows and sets the identifying number of the analog input.
Unit of measurement: Number
Options: 1...3
