ADL300 • Functions description and parameters list 33

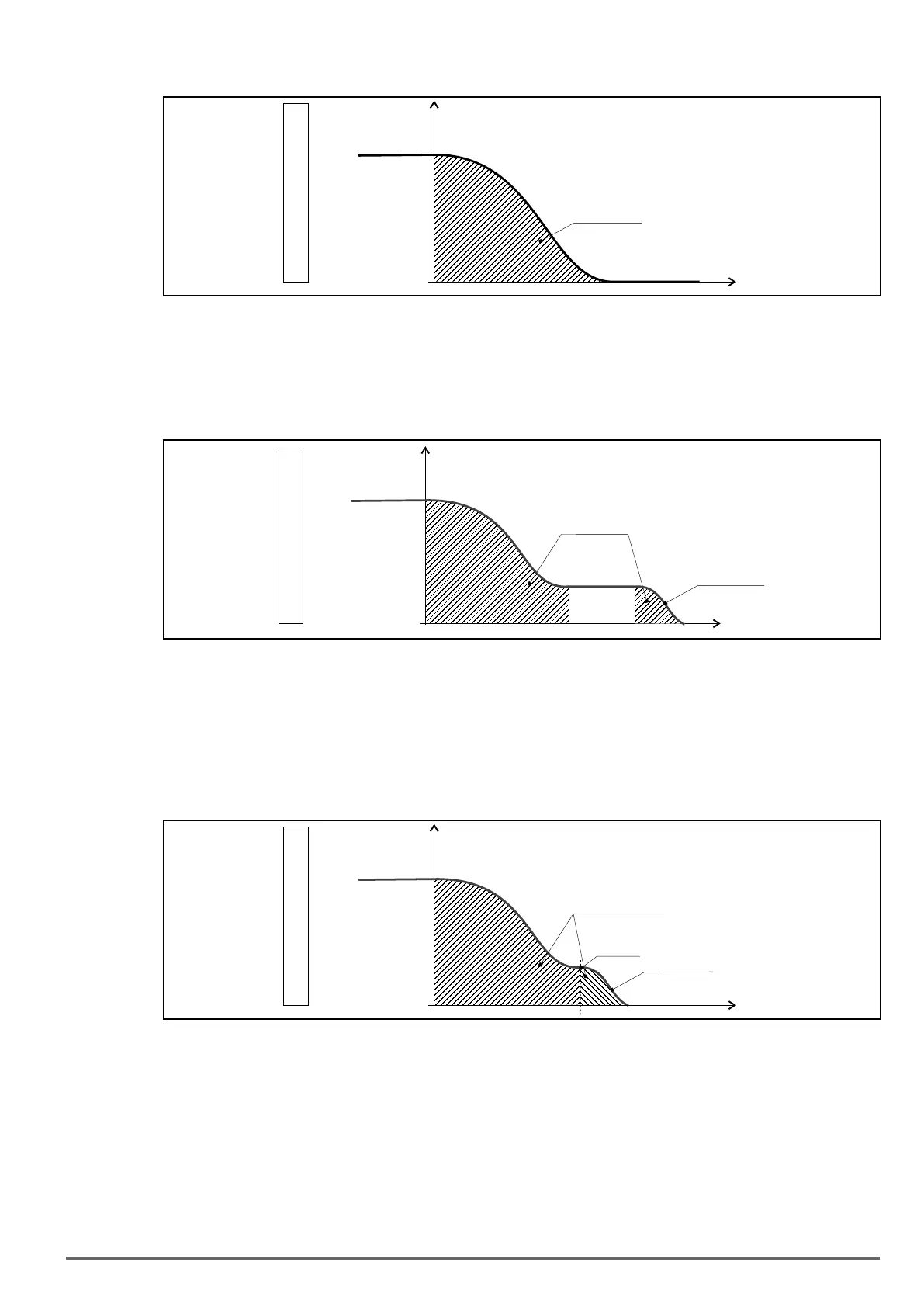

Di󰀨erent methods are used to calculate this distance, depending on the value of the relative parameters:
PAR11142
Calc space speed
PAR 12032
Deceleration space
Speed
Time
Case 1
● Case 1: S-shaped ramp from high speed to zero speed
Distance multispeed0 (PAR 11102) = 0, Enable landing sel (PAR 11130) = Disabled, Slow speed (PAR 11120) = Zero.
Deceleration space (PAR 12032) the distance covered during the stop ramp from Calc space hi-speed (PAR 11142)
(high speed) to zero speed.
The parameters that inuence the calculation of this distance are: Calc space hi-speed (PAR 11142), Percent dec factor
(PAR 11056), Dec ini jerk (PAR 11046), Deceleration (PAR 11048) and Dec end jerk (PAR 11050).
Speed
Time
PAR11020
Slow speed
PAR11052
End deceleration
Case 2
PAR11142
Calc space speed
PAR 12032
Deceleration space = A+B
● Case 2: S-shaped ramp from high to low speed, low speed zone and subsequent stop
Distance multispeed0 (PAR 11102) = 0, Enable landing sel (PAR 11130) = Disabled, Slow speed (PAR 11120) = Multi-
speed 0.
Deceleration space (PAR 12032) is the distance covered during the slow down ramp from Calc space hi-speed (PAR
11142) (high speed) to Multispeed 0 and during the stop ramp from Calc space hi-speed (PAR 11142) to zero speed. It
does not include the distance covered at constant speed (Low speed).
The parameters that inuence the calculation of this distance are: Calc space hi-speed (PAR 11142), [11022] Multispeed
0 (PAR 11020), Percent dec factor (PAR 11056), Dec ini jerk (PAR 11046), Deceleration (PAR 11048), Dec end jerk
(PAR 11050) and Stop deceleration (PAR 11052).
Speed
Time
Case 3
PAR 12032
Deceleration space = A+B
PAR11142
Calc space speed
PAR11052
End deceleration
PAR11020
Slow speed
● Case 3: S-shaped ramp from high to low speed, low speed zone and subsequent stop
Distance multispeed0 (PAR 11102) ≠ 0 (es.0.5m), Enable landing sel (PAR 11130) = Disabled, Slow speed (PAR
11120) = Multispeed 0.
Deceleration space (PAR 12032) is the distance covered during the slow down ramp from Calc space hi-speed (PAR
11142) to Multispeed 0 and during the stop ramp from Calc space hi-speed (PAR 11142) to zero speed. It does not
include the distance covered at constant speed (Low speed).
The parameters that inuence the calculation of this distance are: Calc space hi-speed (PAR 11142), [11022] Multispeed 0
(11020), Percent dec factor (PAR 11056), Dec ini jerk (PAR 11046), Deceleration (PAR 11048) and Dec end jerk (PAR 11050).
