70 ADL300 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.11 2222 Gain adp spd thr3_2 perc FLOAT 2.0 0.0 100.0 ERW F_S
Setting of the speed threshold for changing gains from set 3 to set 2.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.12 2224 Gain adp spd band3_2 perc FLOAT 1.0 0.0 100.0 ERW F_S
Setting of the band within which gains vary between set 3 and set 2. The use of this parameter ensures a smooth transition
between the two parameter sets.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.13 2246 Gain adp spd thr0_2 perc FLOAT 1.0 0.0 100.0 ERW F_S
Setting of the speed threshold for changing gains from set 0 to set 2.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.14 2248 Gain adp spd band0_2 perc FLOAT 0.3 0.0 100.0 ERW F_S
Setting of the band within which gains vary between set 0 and set 2. The use of this parameter ensures a smooth transition
between the two parameter sets.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.15 2244 Gain profile mode ENUM Profile 0213 0 3 ERW F_S
Gain prole modes.
0 Prole 1
1 Prole 21
2 Prole 321
3 Prole 0213

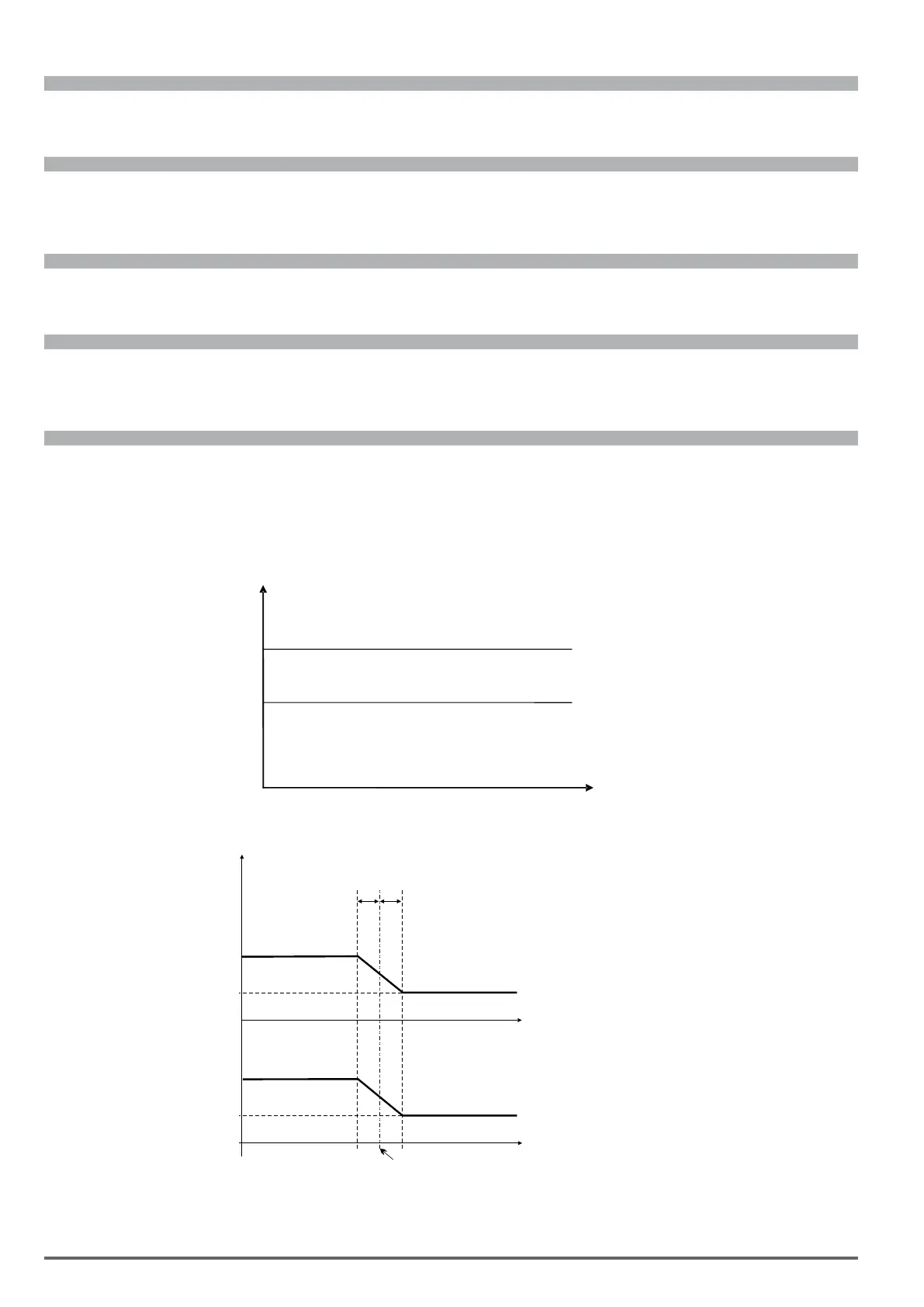

● If set to 0 the prole used is that shown in the gure below:
Gain
PAR 2200
Speed reg P1 gain
%
PAR 2202
Speed reg I1 gain
%
Speed
● If set to 1 the prole used is that shown in the gure below:
Gain
0
Speed ref
Speed ref
PAR 2200
Speed regP1 gain(%)
PAR 2202
Speed regI1 gain(%)
PAR 2206
Speed regI2 gain(%)
PAR 2220
Gain adp spd band2_1 (%)
PAR 2204
Speed regP2 gain(%)
PAR 2218
Gain adp spd thr2_1 (%)
