MagicControl 4.0 (CM40) After filter pressure monitoring
•
105

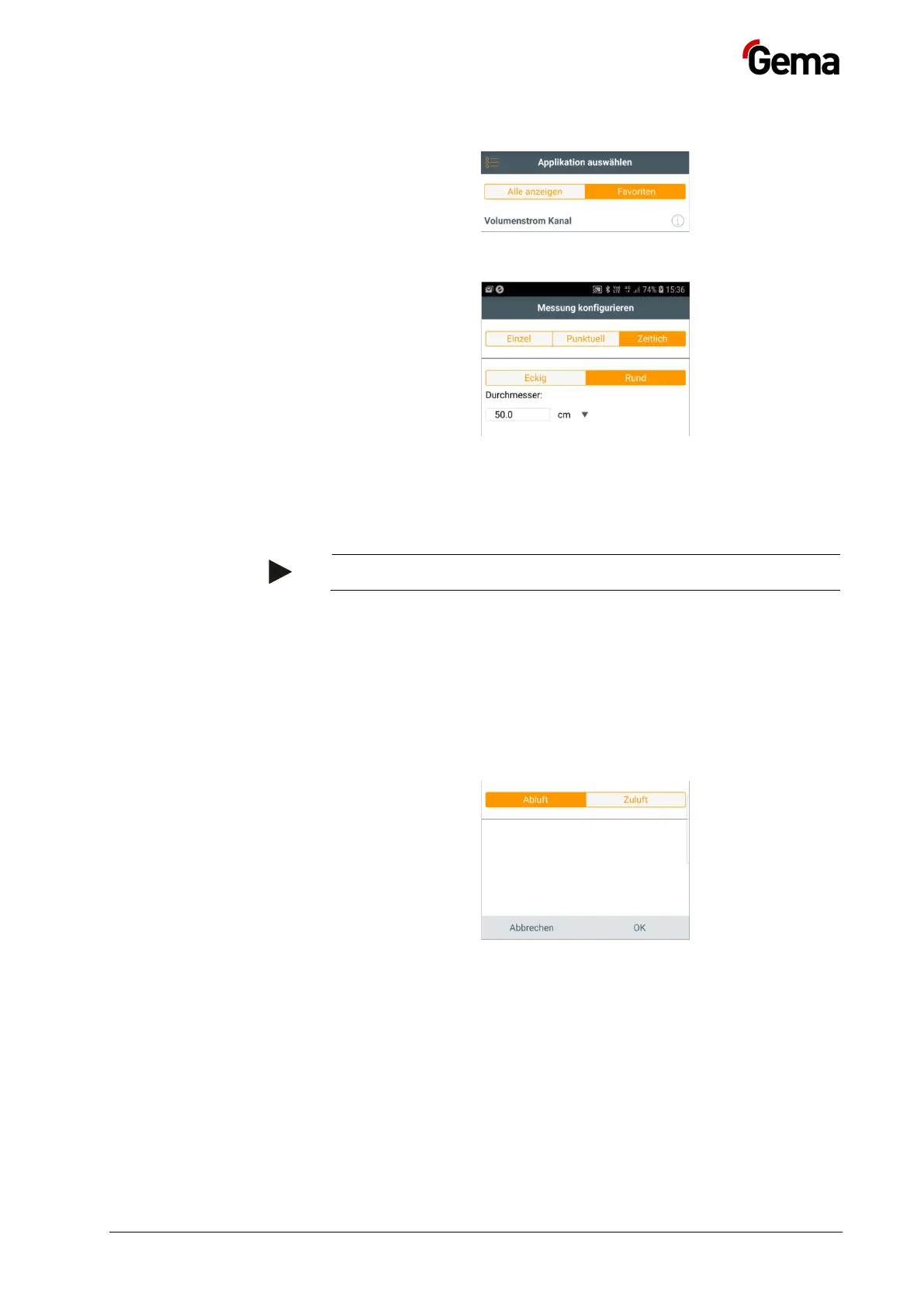

Measurement configuration
• Volume flow duct
• Tube type = Round
• Tube diameter (duct diameter) must be configured
– The tube diameter is shown in the assembly drawing of the
ducting.
An incorrect diameter leads to an incorrect air volume result!
• Measurement methods:
– Single
– Selective
– Time
We recommend the “Temporal” variant. With this variant, the
exhaust air volume is measured over a defined time period. A
measuring time of 60 seconds produces a precise result.
• Measurement direction = Exhaust air
