Diagnostic MagicControl 4.0 (CM40)
This status indicates that download is not possible and the CGxx memory
must be cleared (see also the CGxx operating manual).
Axes
Fig.
86

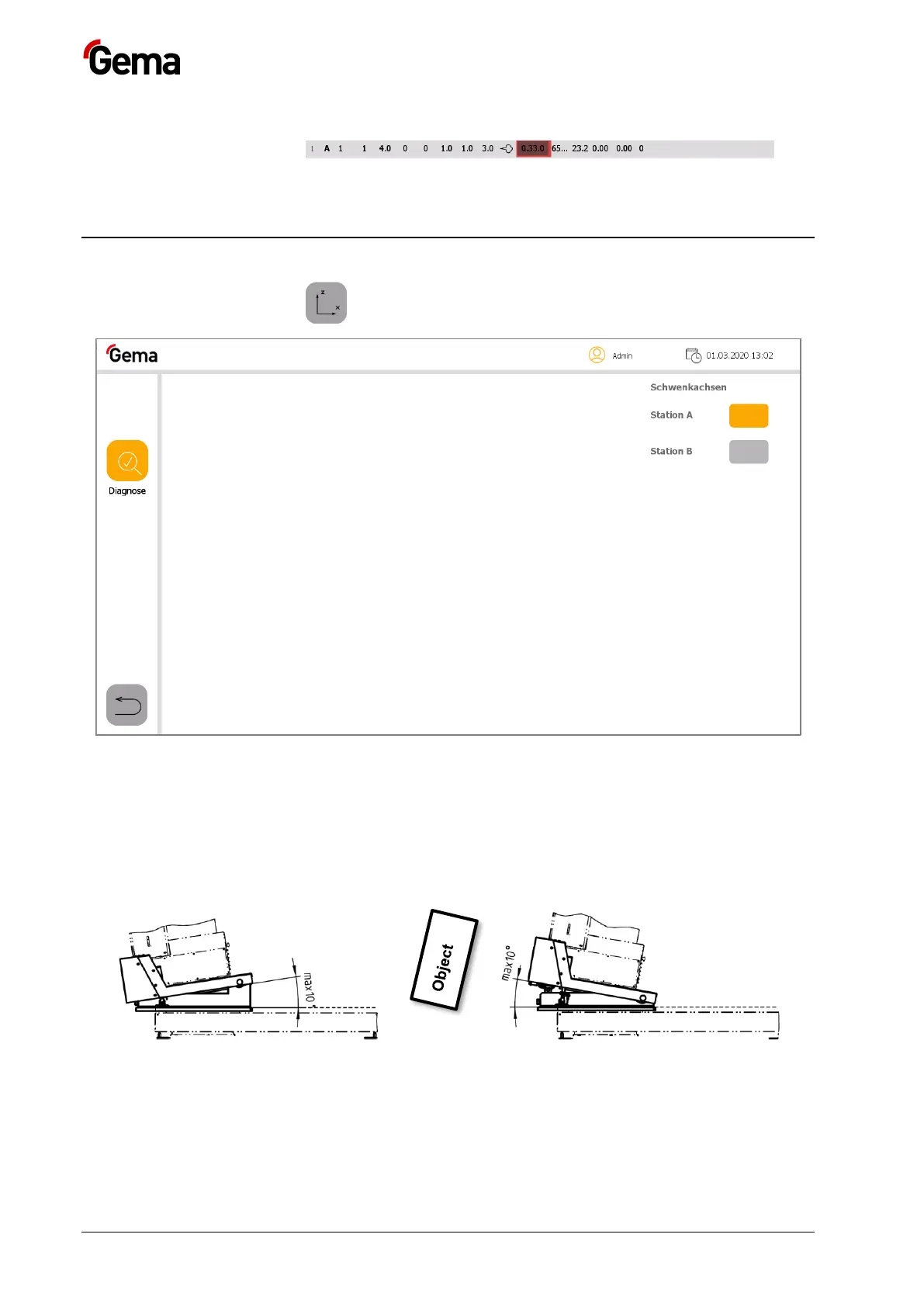

: “Axes” diagnosis screen
This diagnosis page is used exclusively for swivel axes.
Swivel axes are a Gema product that is very rarely used.
Swivel axes are used when a customer has coating objects that are tilted
at a precisely defined angle. In this case one axis with a positive angle
and one axis with a negative angle can be used. This means that the
coating distance remains unchanged over the entire height of the object.
Fig.
87
:
