MagicControl 4.0 (CM40) After filter pressure monitoring
•
93
After filter pressure monitoring
MagicControl CM40
Introduction
In response to the requirements of the new EN16985 standard, the filter
cabinet and the monitoring of the after filters have been revised.
The EN 16985 standard requires redundant back pressure and differential
pressure monitoring.
See EN16985:2018(D)

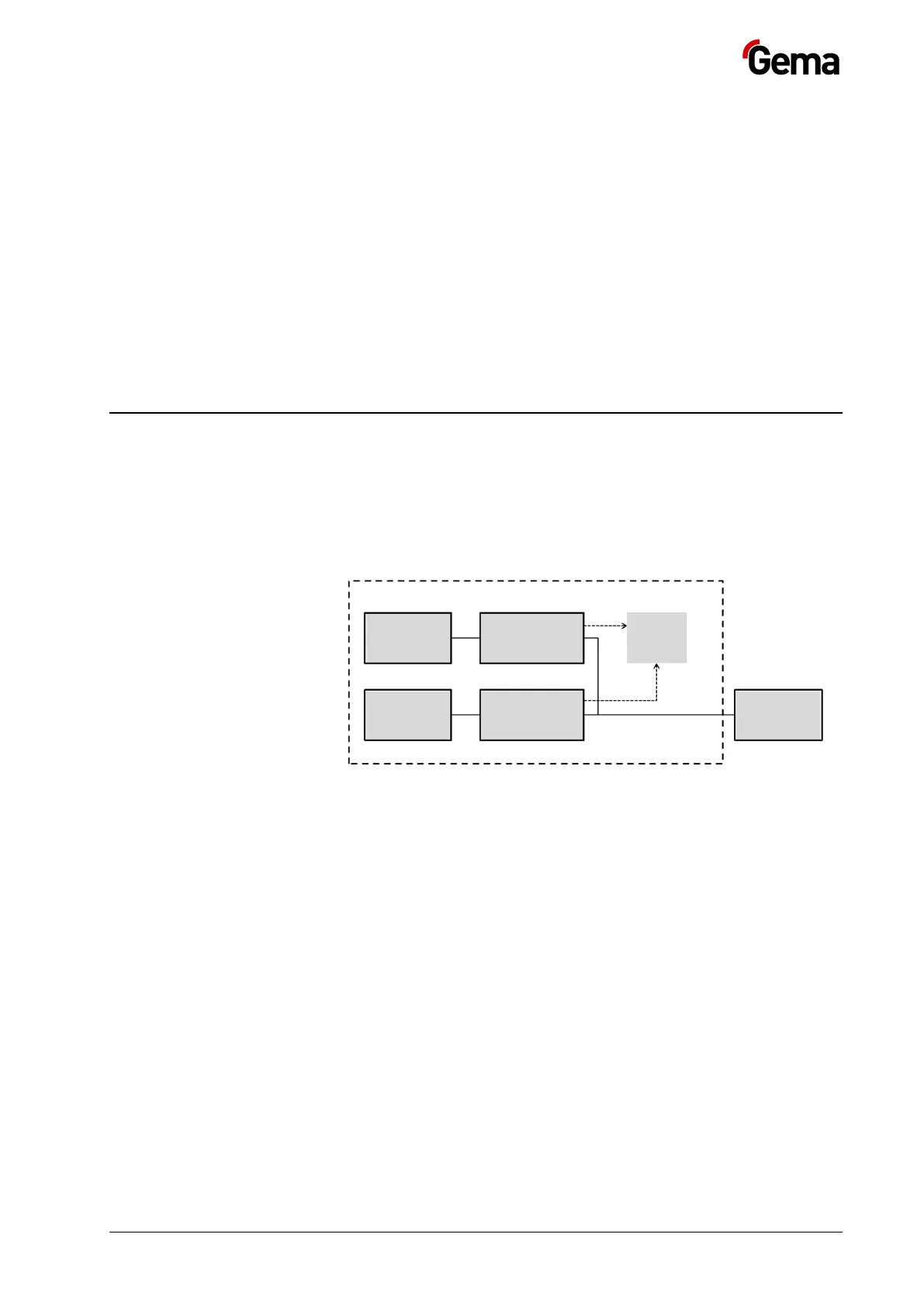

Fig.
93
: Locking of the technical ventilation with the interface to the
application system
1 Booth
2 PLC
3 Dynamic pressure
indicator
4 Differential pressure
monitor
5 Compressed air valve
3
3
4
4
2
5
1
