Gema MagicControl 4.0 - Value Display & Configuration

Rev. 01 12/21
96
•

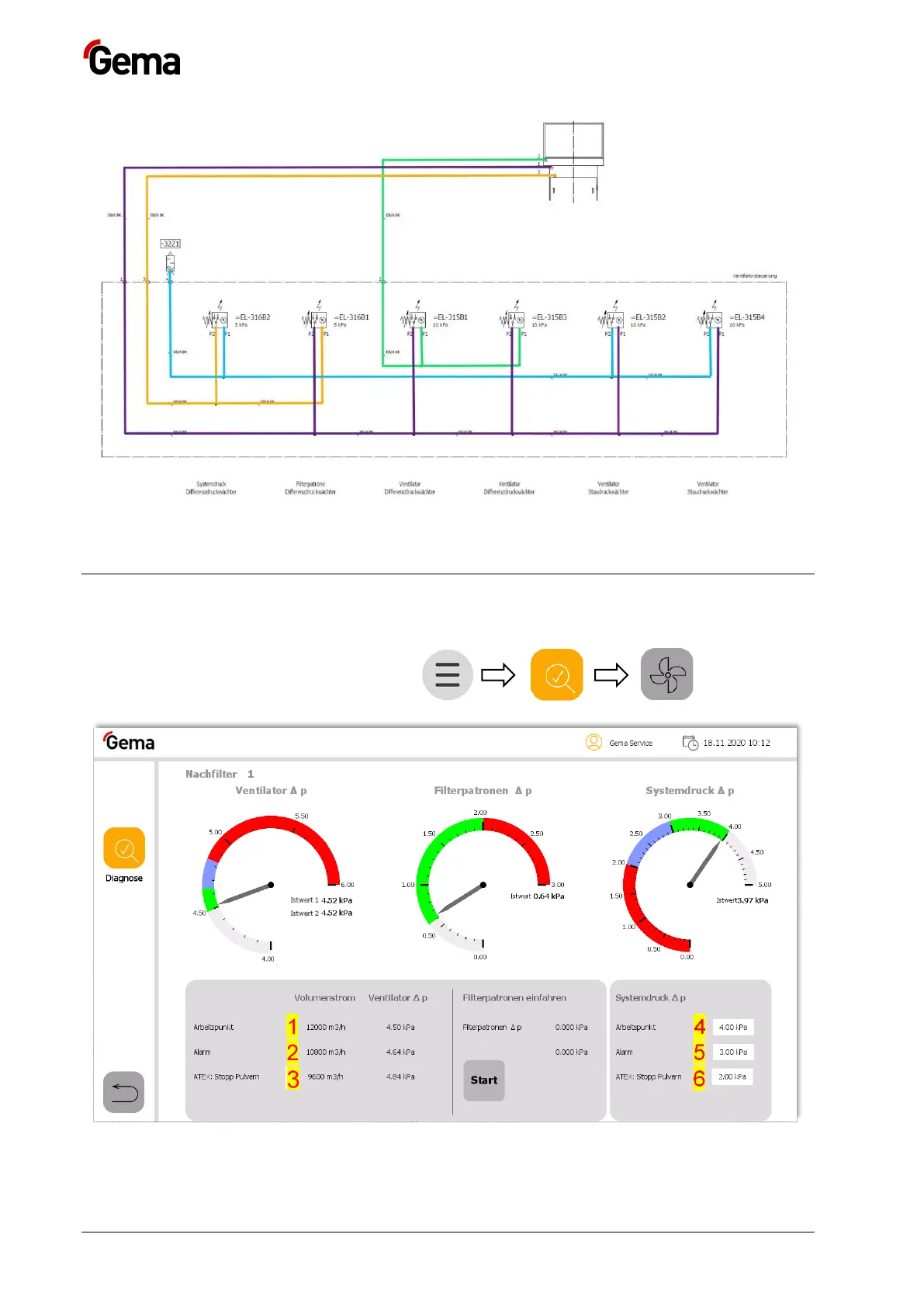

After filter pressure monitoring MagicControl 4.0 (CM40)
Fig.
95
: Pressure monitoring pneumatic diagram
Display of the pressure values in MagicControl CM40
After logging in to User level 1, the Exhaust Air page can be opened.
Fig.
96
:
Note:
