Rev. 01 12/21
24
Product description MagicControl 4.0 (CM40)
For further information, see chapter "System diagnosis".
Machine data
Machine utilization statistics provide the user with an insight into the
utilization and performance of the plant, powder consumption and the
total area of the coated parts.

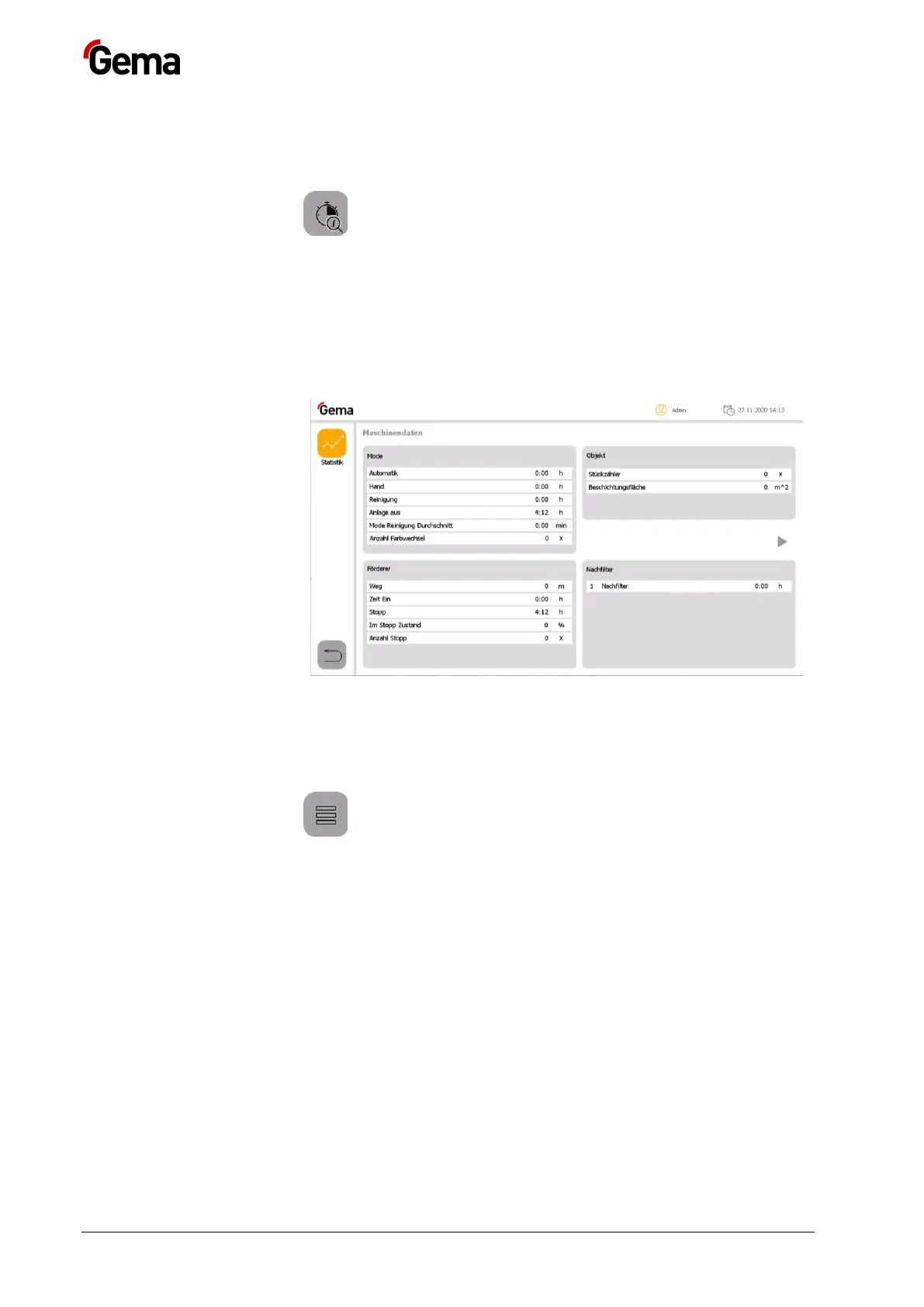

This screen displays the most important machine data such as total
running times, procedures, and recorded coating area.
The software timer provides information on how long the plant control has
been in operation and how long this control has been used.
Fig.
8
:
For further information, see chapter "Machine data".
Batch management
Batch management is used to record the consumed powder, divided into
production batches. The recorded consumption data is continuously
updated and then displayed on the screen in tabular form. If a height light
grid is present, in addition to the powder consumption, the coated side
elevation area is also recorded.
Basic
Display of powder consumption per batch
Manual input of order-related data
For further information, see chapter "Batch Management (Basic Version)".
Advanced**
Display of powder consumption per batch
Incl. one external scale with terminal
Input of order-related data:
