MagicControl 4.0 (CM40) Diagnostic
85
Powder guns
Fig.
85

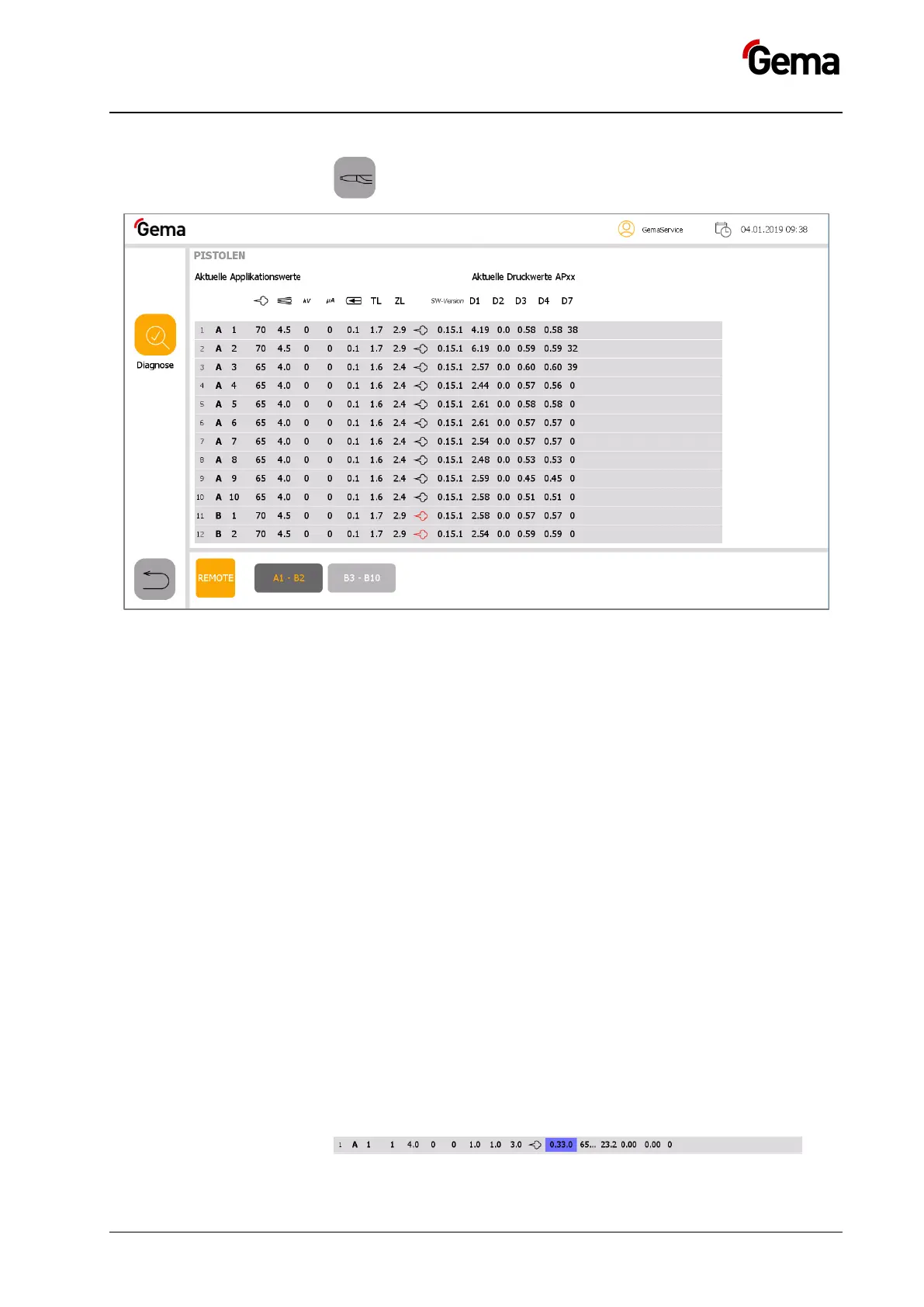

: “Gun” diagnosis screen
Current application values
Display of the actual values of the gun control units
kV and µA = The current actual value is displayed
Current pressure values APxx
D1 = Current pinch valve pressure
D2 = Opening time of control solenoid valve for pinch valve pressure
(leak-tightness control)
D3 = System backpressure 1
D4 = System backpressure 2
D7 = Pressure drop per each pinch valve closing
Software version
The current software version of the OptiStar gun control units is
displayed.
The firmware update for CG22 and CG24-CP from firmware version
0.21.0 and higher is done automatically.
Firmware download status:
Download is active.
