Gema MagicControl 4.0 User Manual

Rev. 01 12/21
84
•
Diagnostic MagicControl 4.0 (CM40)
General

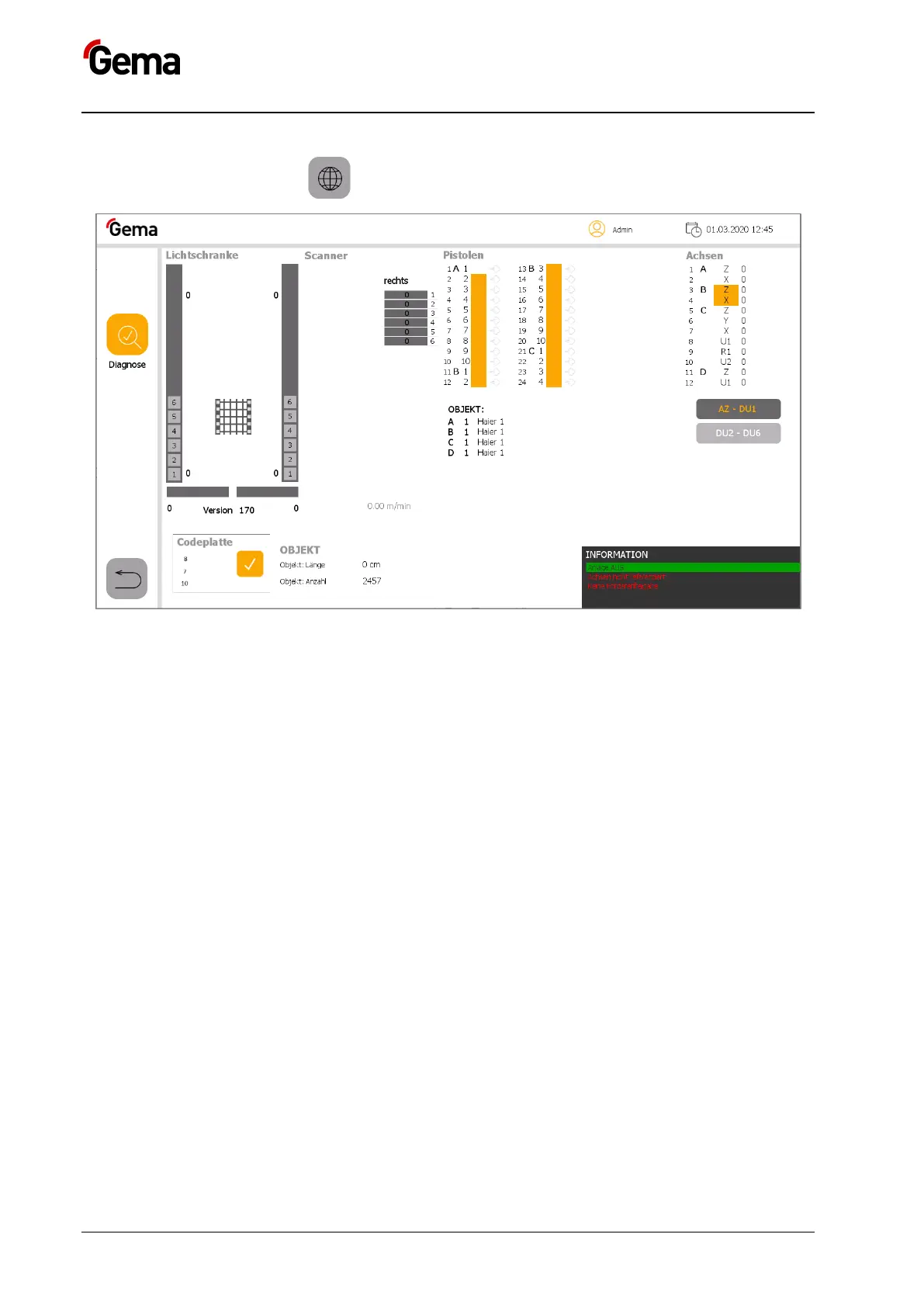

Fig.
84
: “General” diagnosis screen
This screen displays:
– Light grid segments
– Gun status
– Axis status and position
– Current object per station
– States of scanner zones
– Code plate information
