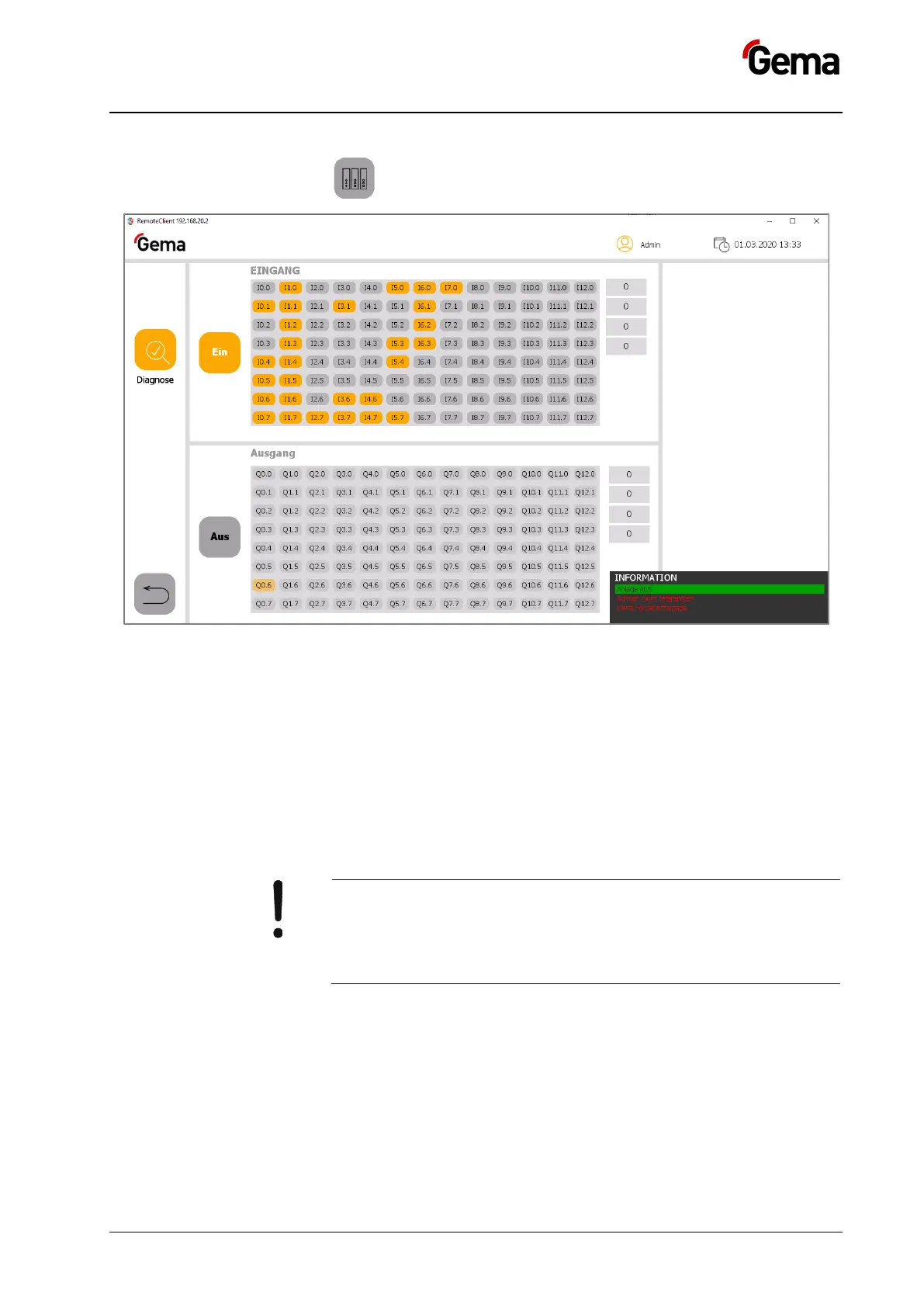

: “Inputs/outputs” diagnosis screen
This is an important screen for the commissioning engineer!
The active inputs/outputs are displayed in orange. They refer to the
inputs/outputs of WAGO PLC cards.
Inputs and outputs can be set in the GemaService user level.
Example:
If the wiring to an input is missing during start-up and therefore an error is
displayed, it can be temporarily suppressed.
The same functionality is provided for all digital outputs.
When exiting the “Inputs/outputs” screen, the outputs are no
longer overwritten. The inputs remain set as temporarily
programmed.
This functionality is deactivated when the system is switched on
again.
