Rev. 01 12/21
MagicControl 4.0 (CM40) Diagnostic
•
91
Exhaust air

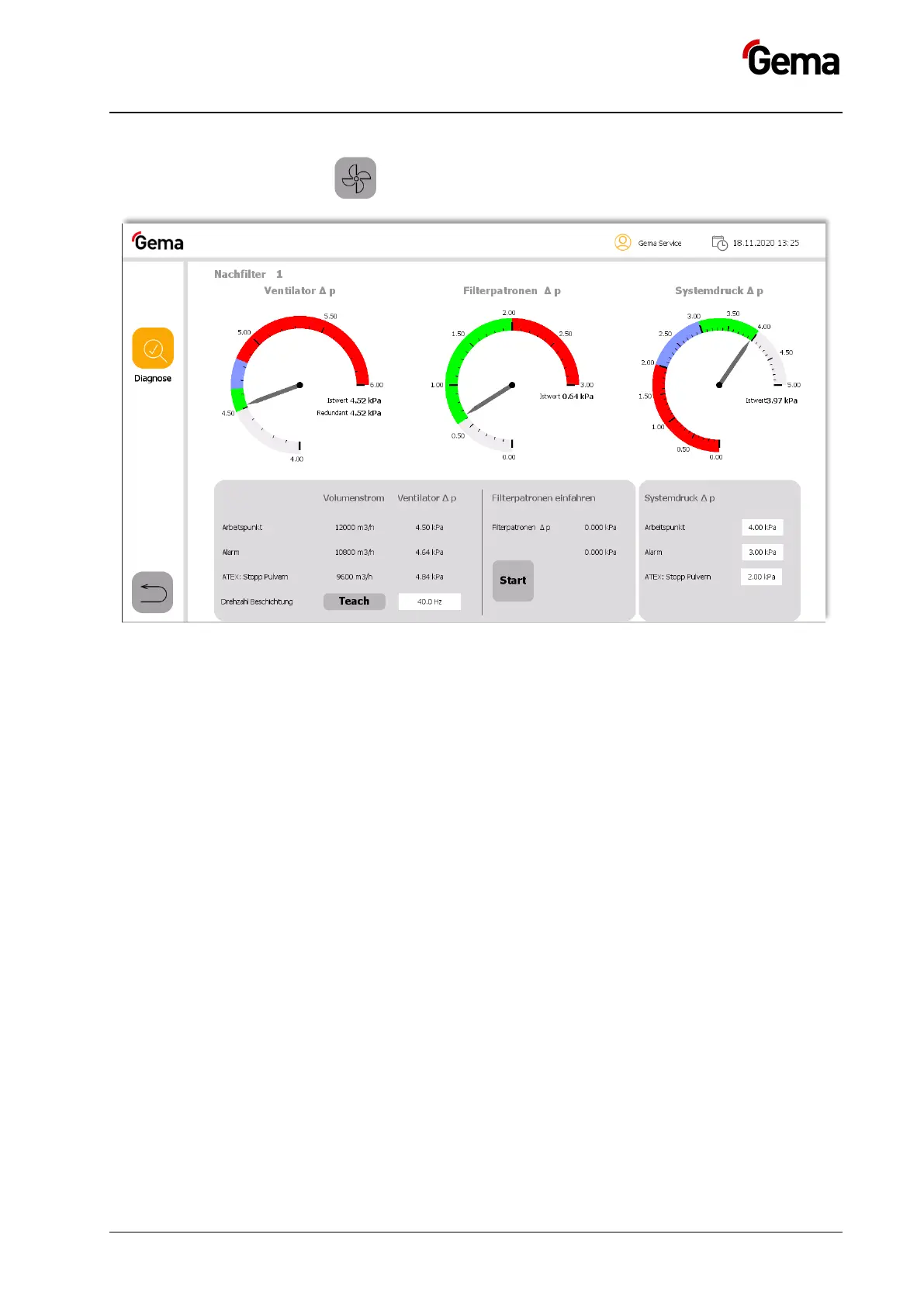

Fig.
92
: “Exhaust air” diagnosis screen
This page is used to observe the after filter differential pressures.
A detailed description can be found in the document “LF pressure
monitoring”.
