Gema MagicControl 4.0 User Manual

Rev. 01 12/21
46
•
Operation MagicControl 4.0 (CM40)

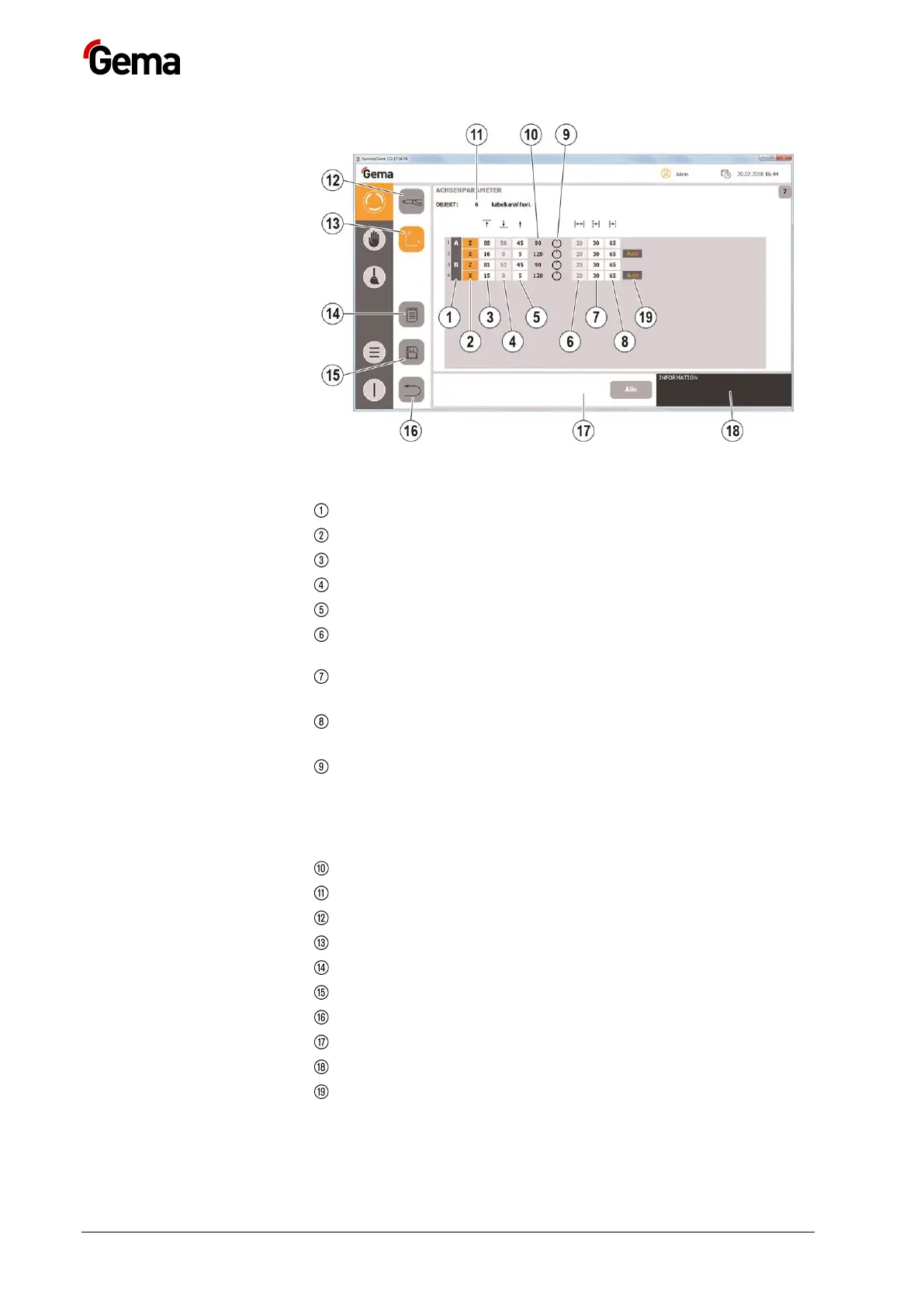

Fig.
32
: Application data – Axes
Station
Axis activated/deactivated
Upper reversing point – fix position. Caution: Collision danger!
Lower reversing point
Speed
Spray distance: Gun tip - object (controlled by object width
recognition) – fix position. Caution: Collision danger!
Pretravel = axis ON in front of the object
(values values are set in the configuration menu)
Overtravel = axis OFF after the object
(values values are set in the configuration menu)
Reference axis
– Manual operation mode: The symbol changes to ON/OFF
after referencing.
– Automatic operation mode:: The symbol is no longer
visible after referencing.
Current position or error number
Current program
Access to gun parameters
Access to axes parameters
Access to all coating programs (object data administration)
Save changes
Exit current page without saving, any changes are discarded
Changes per station or all stations
Error description
Auto: Axis moves according to object recognition and spray
distance
Manual: Axis moves to the specified position
2. Press the corresponding axis key
