- 100 -

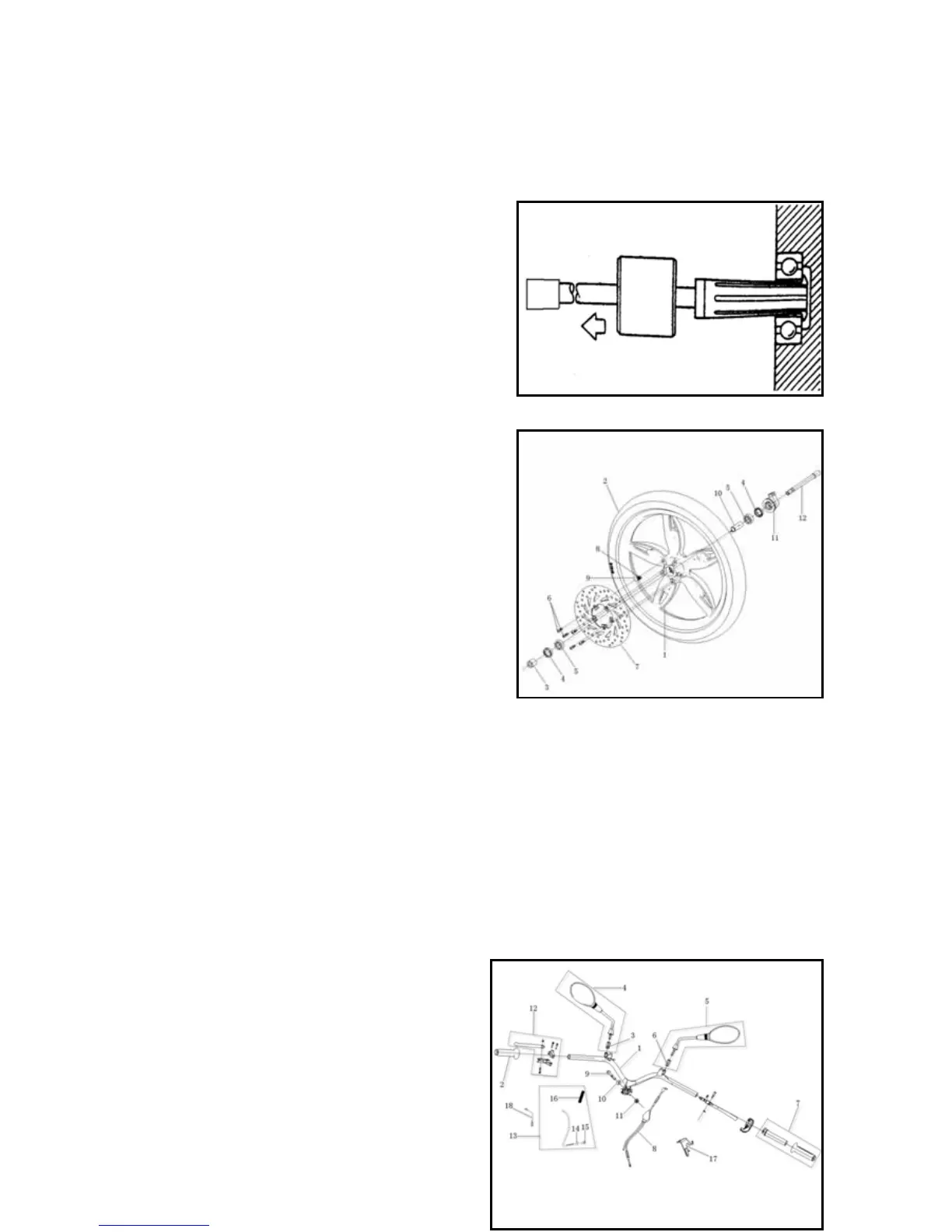

7.3.3 Bearing replacement
Remove front wheel axle, front wheel brake disc and front
wheel outer bushing.
Remove front wheel middle bushing and then remove oil seal
and bearing by oil seal remover and bearing remover.
Note: removed bearing shall be replaced by new bearing.
Lay grease on bearing in installation.
Press bearing with bearing installation tools.
*Note
• The bearing must be pressed parallelly.
7.3.4 Installation
Install according to reversed procedures of "removal". Pay
attention to the following items:
Grease front wheel axle, pinion stand assembly, oil seal
(open), bearing 6201-2RS, front wheel middle axle bushing
and front wheel outer bushing.
Calcium base grease is recommended.
Install front wheel, front wheel axle and pinion stand
assembly. In installating pinion stand assembly, pay attention
to match parts well. If pinion stand assembly of odometer is
not matched and locked well, the pinion assembly of front
axle odometer will be deformed.
Install brake cylinder assemble on front wheel rim.
Tighten front wheel axle.
*NoteQJ50QT-22D front wheel removal diagram is available in P85 of the instruction.
Torque force
Front wheel axle 55-62 N·m
7.4 Steering handle
7.4.1 Removal
Remove left, right and rearview mirror assembly
(4) and5.
Remove left handle assembly2 and right handle
