Generic Onyx 50 User Manual

- 81 -

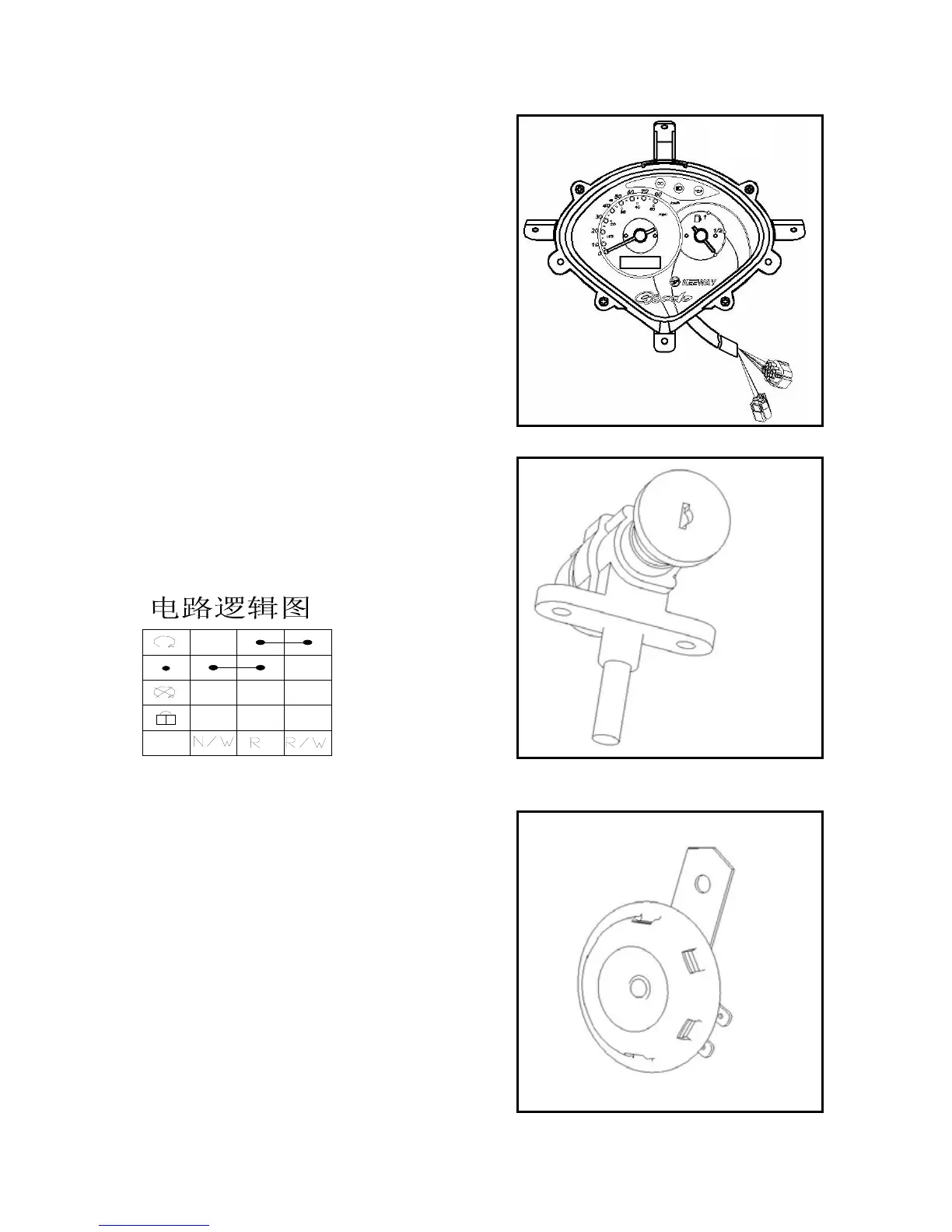

4.6 Meters
Remove the decorative parts of meters
Remove the back protective guard of the handlebar,
Disconnect the wire of meters
Remove the meters
Install the speedometer in the opposite order of removal.
4.7 Main switches
4.7.1 Check
Remove the helmet hook, front basket and rear board.
Remove the added board and foot protective plate of front
basket and rear board.
Remove the conductor joint of the main switch
Conduction examination of the ends of the adaptor
4.7.2 Main switch replacement
Remove the helmet hook, front basket and rear board.
Remove the added board and foot protective plate of front
basket and rear board.
Remove the standing bolt; unload the permanent
seat of the main switch.
Remove the standing bolt to replace the main switch.
4.8 Speakers
Examination
