Generic Onyx 50 User Manual

- 96 -
1 lower connection board welding assembly 2 front left shock absorber assembly 3 bolt M8×30 4socket
head screw M6×20 5 front right shock absorber assembly 6 bolt M10×1.25×30 7 lower bearing lower
steel bow 8 steel ball assembly 9 upper bearing lower steel bowl 10 upper bearing upper steel bowl
11 gasket 12 compression nut

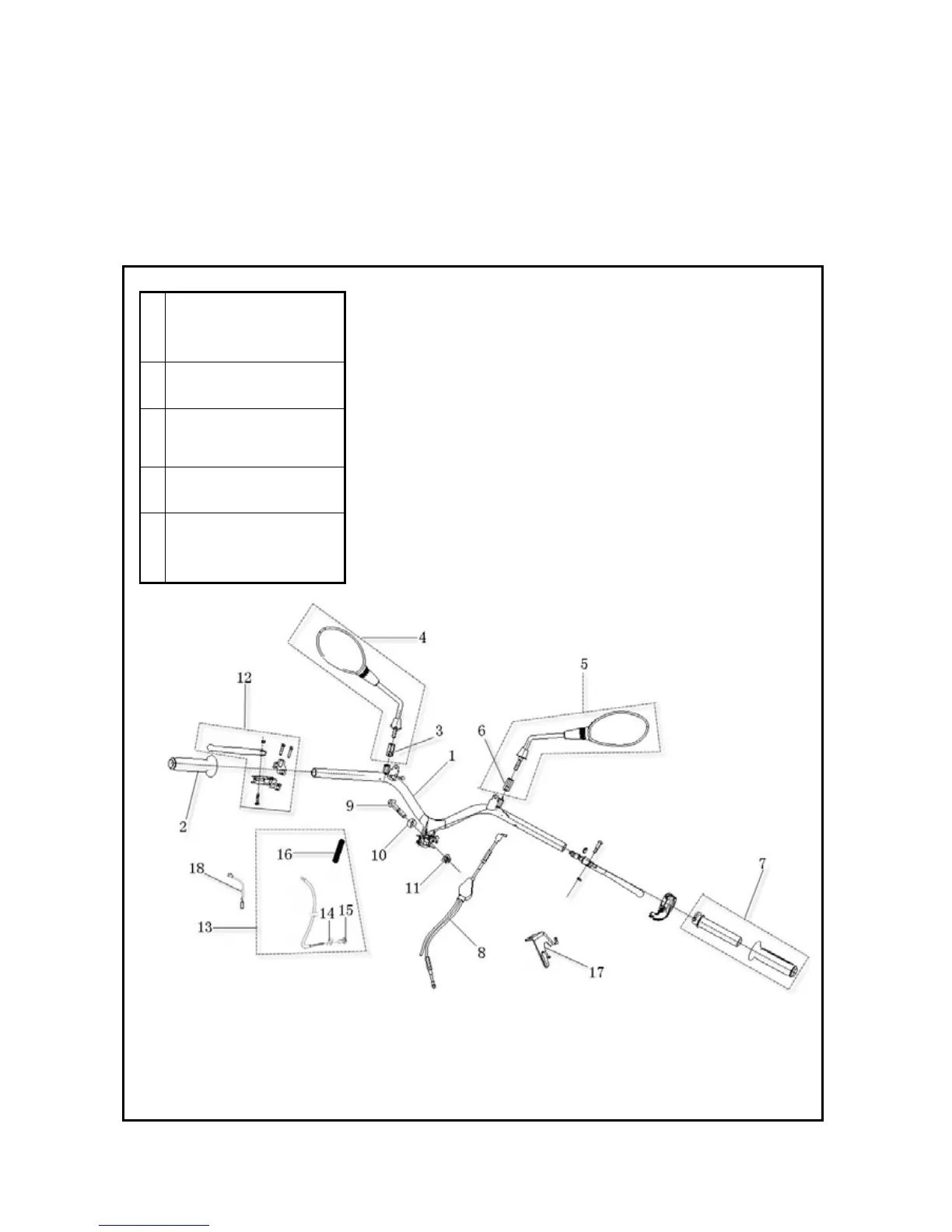

Steering handle
A
Bolt 9 (steering handle
standing bolt) mounting torque
force: 40-60
N·m
B
Front brake handle free travel:
10-20mm
C
Rear brake handle free travel:
10-20mm
D
Throttle operation handle(fig
3) free travel: 5-10mm
E
Rearview mirror 4 、 5
ce r t if i c a te No . : E3 001002
