- 155 -

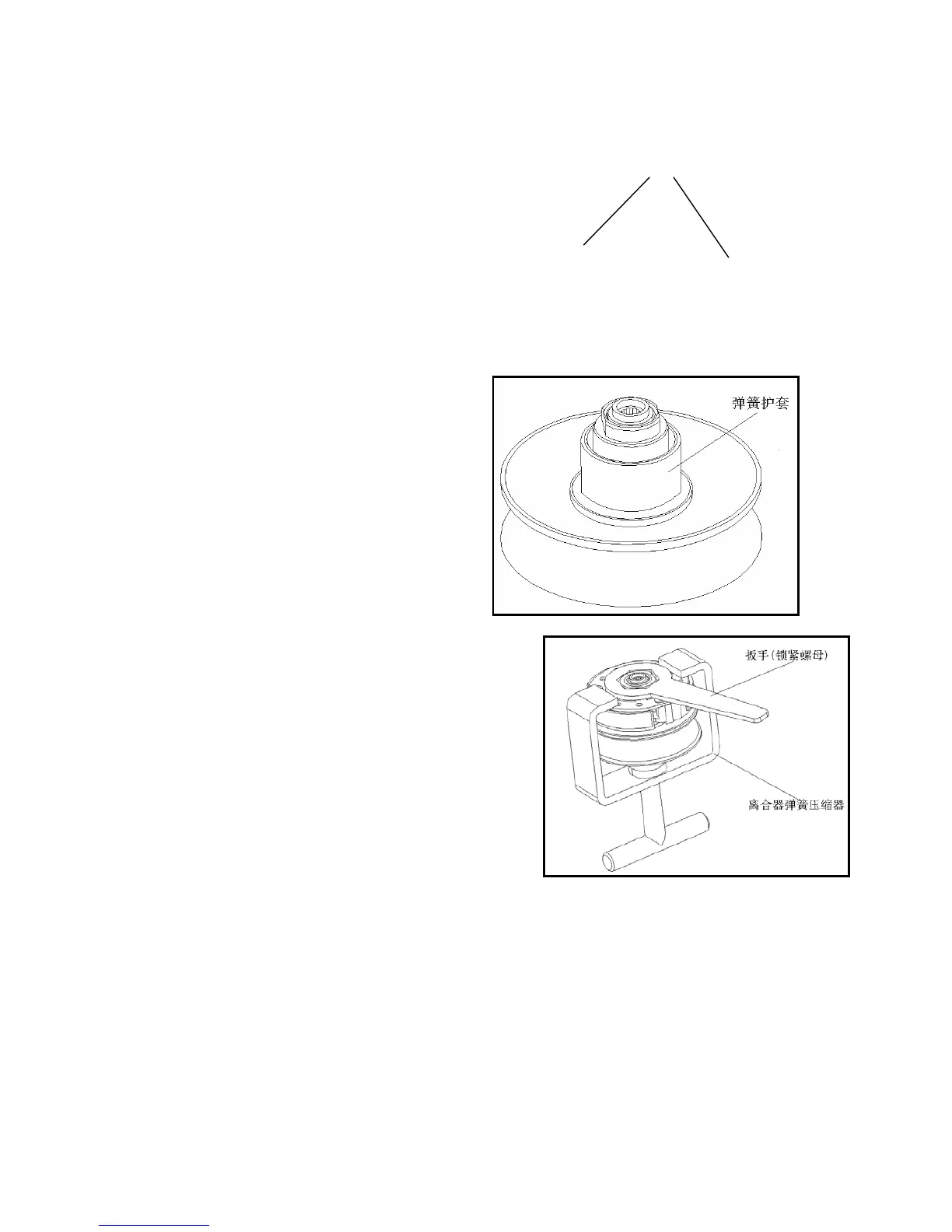

Install clutch compression spring and clutch on driven wheel.
Use clutch spring compression assembly, after compression install locking nut.
Note:
Compress spring moderately. Do not damage it.
15.7 Install
Install driven disc/clutch/driven wheel in reversed
sequence of removal.
15.8 Foot starting device
Removal/inspection
Remove left crankcase cover.
Loose screw and remove guard plate.
Remove starting claws assembly.
Remove starting shaft assembly.
Check abrasion of starting shaft.
Check starting shaft bushing, abrasion of force received part of
idle shaft.
Check abrasion of idle gear.
Measure clamping force of snap spring.
General standard value: 8-12N。
Note: 1 snap spring 2 starting claws 3 idle gear 4 idle shaft 5 starting shaft assembly 6 foot starting shaft
spring
弹簧护套 spring sleeve
扳手 spanner (locking nut)
Directing pin
Directing groove
