8.4 Rear shock absorber
8.4.1 Removal
Remove the seat assembly and left body guard plate.
Loose the upper standing bolt of absorber.
Loose the lower standing bolt of absorber.
Remove the standing bolt of rear absorber.
Remove the rear absorber.
8.4.2 Inspection and adjustment
Note:
Set the same preload value for each shock absorber.
Uneven adjustment may worsen operational performance and make it unsteady.

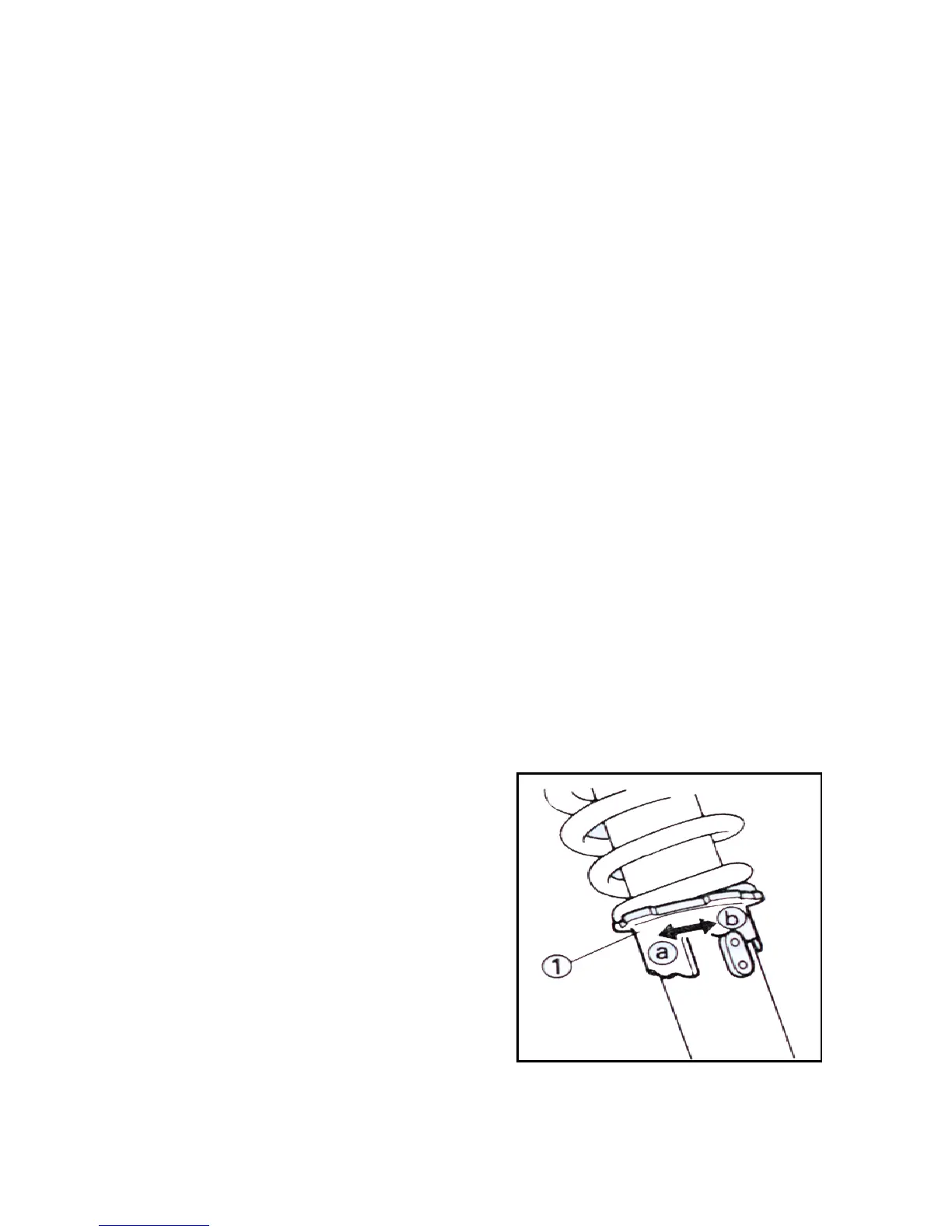

Adjust spring preload. Adjust the device by rotating towards
orientation of ○,
а
or○,
Ь
.
Rotate towards ○,
а
to increase spring preload value; rotate
towards ○,
Ь
to decrease preload value.
