- 107 -
Elastic fatigue of the spring

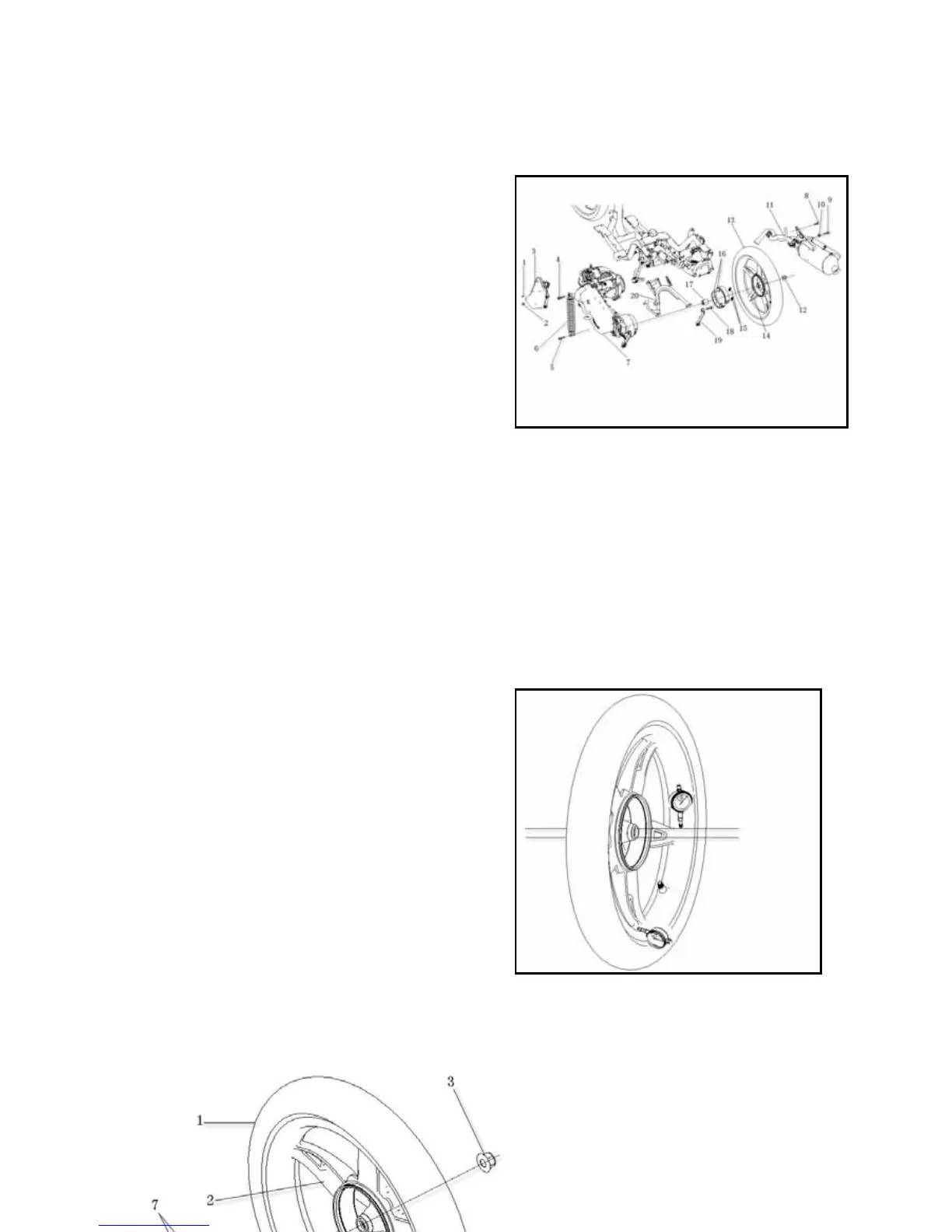

8.3 Rear wheel
8.3.1 Removal
Remove the muffler（11） and gas filter assembly（3）.
Remove rear mudguard and rear small mudguard assembly.
Remove the rear mudguard assembly and rear license plate
support assembly.
Remove the rear wheel axle standing nut（12）.
Remove the rear wheel assembly.
8.3.2 Inspection
8.3.2.1 Rim swinging inspection
Rotate the wheel and measure eccentricity ratio using
Dial indicator
Available limits：
vertical：Replace if it is above 2.0mm
horizontal：Replace if it is above 2.0mm
When the amplitude of fluctuation of the rear wheel
outweighs the available limits and the bearings is loose
resulting in swinging rear wheel. Replace new rear bearing.。
8.3.3 Installation
Install the rear wheel in the opposite sequence of removing
and tighten the locking nut.
Rear wheel locking nut
Torque force：100-113 N·m
QJ50QT-22D Rear wheel
