Generic Onyx 50 User Manual

- 162 -
Loose or broken parts inside crankcase loose crankshaft bearing
Loose crankshaft pink bearing blocked clutch
17.3 Crankcase
17.3.1 Removal of crankcase
Loose bolt, remove starting driving gear.
Remove star gear.
Remove crankcase standing bolt
Remove left and right crankcase.
Note:
Gasket shall not be damaged.
Remove gaket, location pin.
Remove crankshaft from crankcase.
Clean gasket from crankcase matching face.
Note:
Crankcase matching face shall not be damaged.

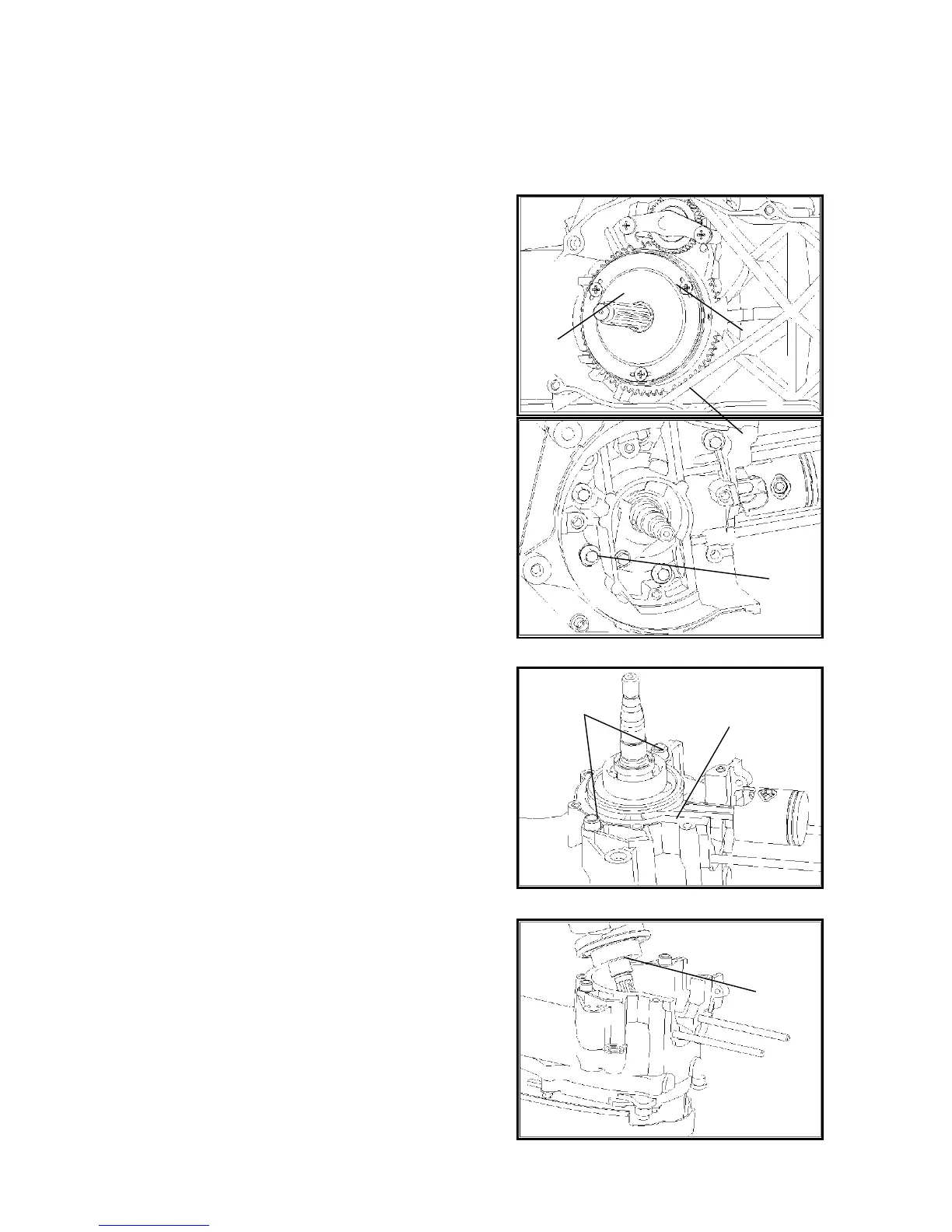

Starting Bolt
Bolt
L
ocation
pin
gasket
crankshaft
Star gear
