16.Decelerator device
Preparation documents-----------------16.1
Failure diagnosis-----------------16.2
Gear box-------------------16.3
Installation ---------------------16.4
16.1 Preparation documents
Function: transfer torsion and decide final output torsion and rev.
16.2 Failure diagnosis
Motor fails to make motorcycle run
Broken driving gear
Burnt driving gear
Leaked gear oil
Too much gear oil
Damaged oil seal
16.3 Gear box
15.3.1 Removal

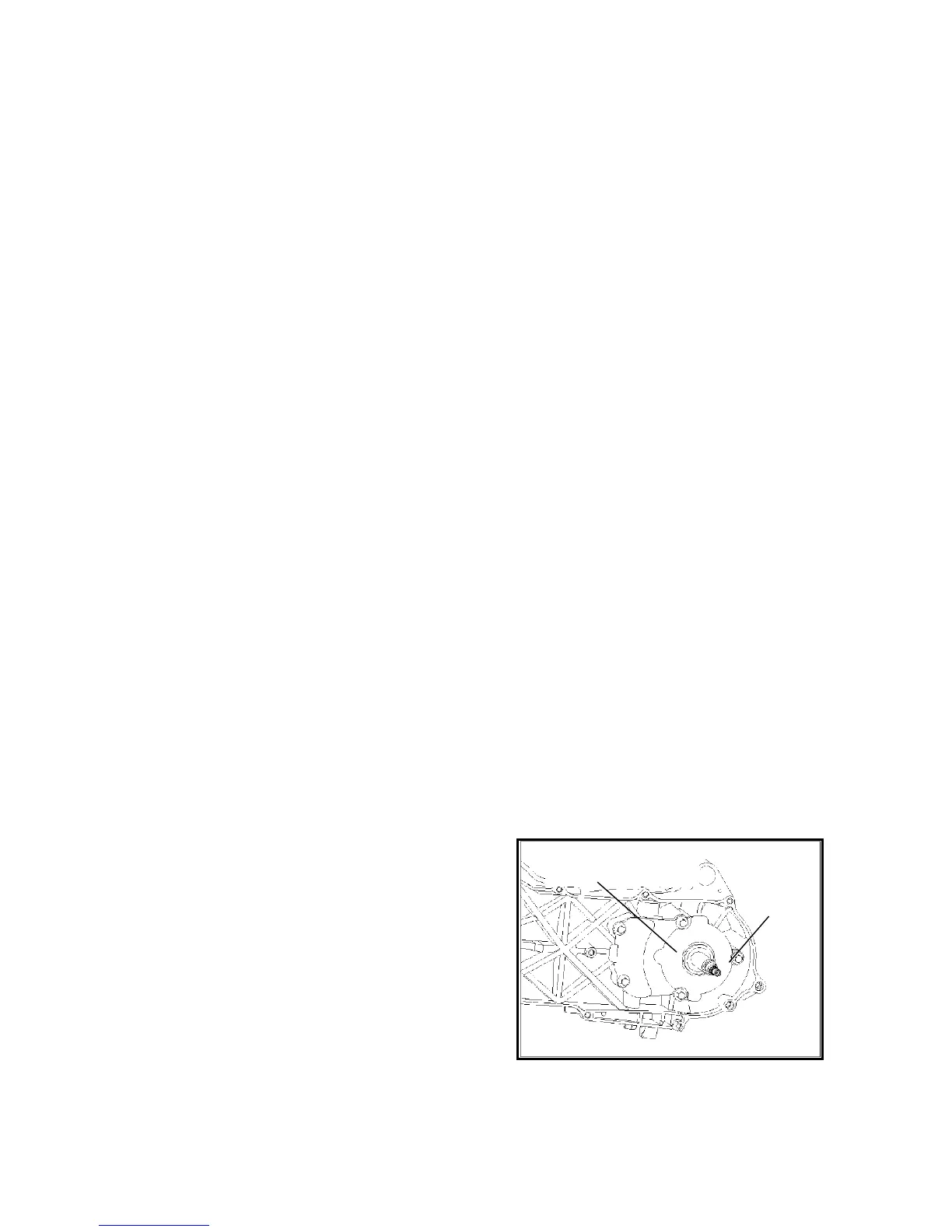

Remove oil drain nut, and discharge gear oil from gear box.
Loose bolt and remove gear room cover.
Remove gasket and location pin.
Bolt
Gear room cover
